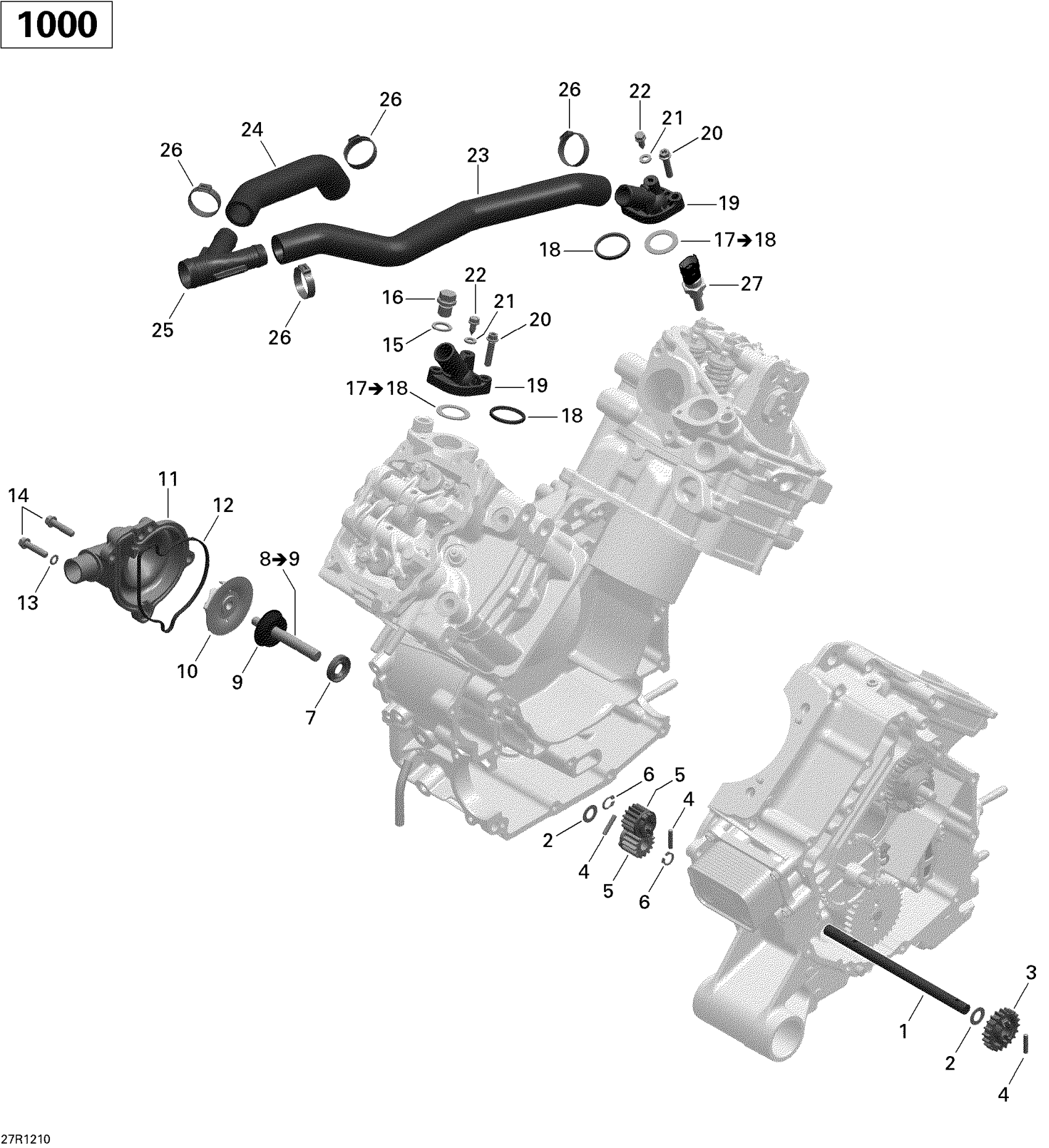

Can-Am Renegade STD, XXC, 1000 EFI, 2012 Engine Cooling Diagram

#

Description
Price

1

Intermediate Shaft

420620500

$36.99

2

Thrust Washer

420827590

$4.09

3

Water Pump Gear

420434330

$11.99

4

Needle Pin

420232420

$4.09

5

Pump Gear, 15 Teeth

420234627

$11.99

6

Snap Ring

420245330

$1.79

7

Oil Seal

420650315

$11.99

8

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

$72.99

9

Rotary Seal

420650371

$44.99

10

Water Impeller

420222505

$19.99

11

Kit Water Pump Housing

703501124

$53.99

12

Gasket

420651190

$8.79

13

Seal Washer

420230415

$1.79

14

Torx Flange Screw M6 X 25

420641238

$3.39

15

Copper Washer

420250640

$1.49

16

Plug screw

420841924

$14.49

17

Spacer Ass'y | Includes 40 to 41

420927837

$7.59

18

Thermostat Gasket

420650300

$8.79

19

Thermostat Cover

420222696

$3.29

20

Torx Flange Screw M6 X 25

420641238

$3.39

21

Gasket Ring

420650255

$4.19

22

Screw M5 X 16

420441621

$3.29

23

Rear Head Hose

420822692

$37.99

24

Front Head Hose

420822697

$17.57

25

Y-Fitting

709200273

$5.50

26

Clamp

420251578

$8.79

27

Temperature Sensor

278002895

$41.99
