1976 Suzuki RE5 Starter Clutch Diagram

← All diagrams

Find the part on the Starter Clutch diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

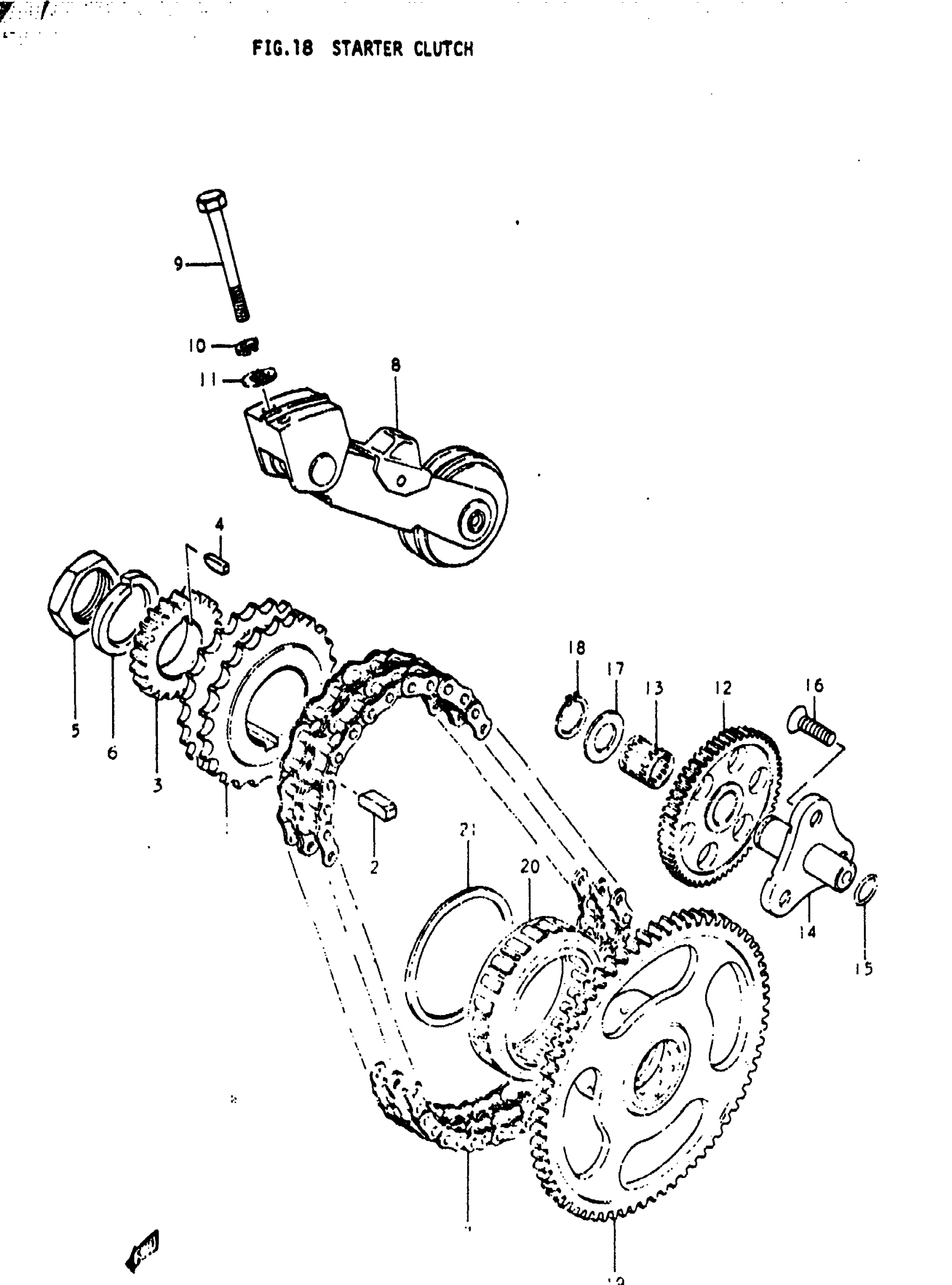

1976 Suzuki RE5 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPROCKET, PRIMARY DRIVE | M,A; NT:23

21111-37000

1
Out of stock

2

KEY | M,A

09421-07001

1
Out of stock

3

GEAR, TIMING DRIVE | M,A; NT:20 FROM 12712-37000

12551-37000

1
Out of stock

4

KEY | M,A

08341-31039

1
Out of stock

5

NUT | M,A

09140-24005

—
Out of stock

6

LOCK WASHER | M,A

09162-24001

—
Out of stock

7

CHAIN, PRIMARY DRIVE | M,A

21190-37020

1
Out of stock

8

TENSIONER, PRIMARY DRIVE CHAIN | M,A

21310-37020

1
Out of stock

9

BOLT | M,A This part replaces 01112-06508.

01500-06507

2
Out of stock

10

2

$2.28

In stock

11

WASHER | M,A This part replaces 08322-21068.

08322-01067

2
Out of stock

12

GEAR, STARTER IDLE | M,A; NT:57/14

12611-37000

—
Out of stock

13

BEARING | M,A

09263-14005

1
Out of stock

14

SHAFT, IDLE GEAR | M,A

12612-37000

1
Out of stock

15

O RING | M,A

09280-12003

1
Out of stock

16

SCREW | M,A This part replaces 02122-06168.

02122-06167

3
Out of stock

17

WASHER, RH (14X22X1.0) | M,A This part replaces 08211-14221.

09181-14167

1
Out of stock

18

CIRCLIP, SHIFT SHAFT | M,A This part replaces 08331-11149.

08331-3114A

1
Out of stock

19

GEAR, STARTER CLUTCH | M,A; FROM 12620-37001

12620-37002

1
Out of stock

20

ONE WAY CLUTCH ASSY, STARTER | M,A; USE WITH 09160-26005

12650-37022

1
Out of stock

21

WASHER | M,A; 58x66x1

09160-58001

1
Out of stock
