1976 Suzuki RE5 LH Handle Switch Diagram

← All diagrams

Find the part on the LH Handle Switch diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

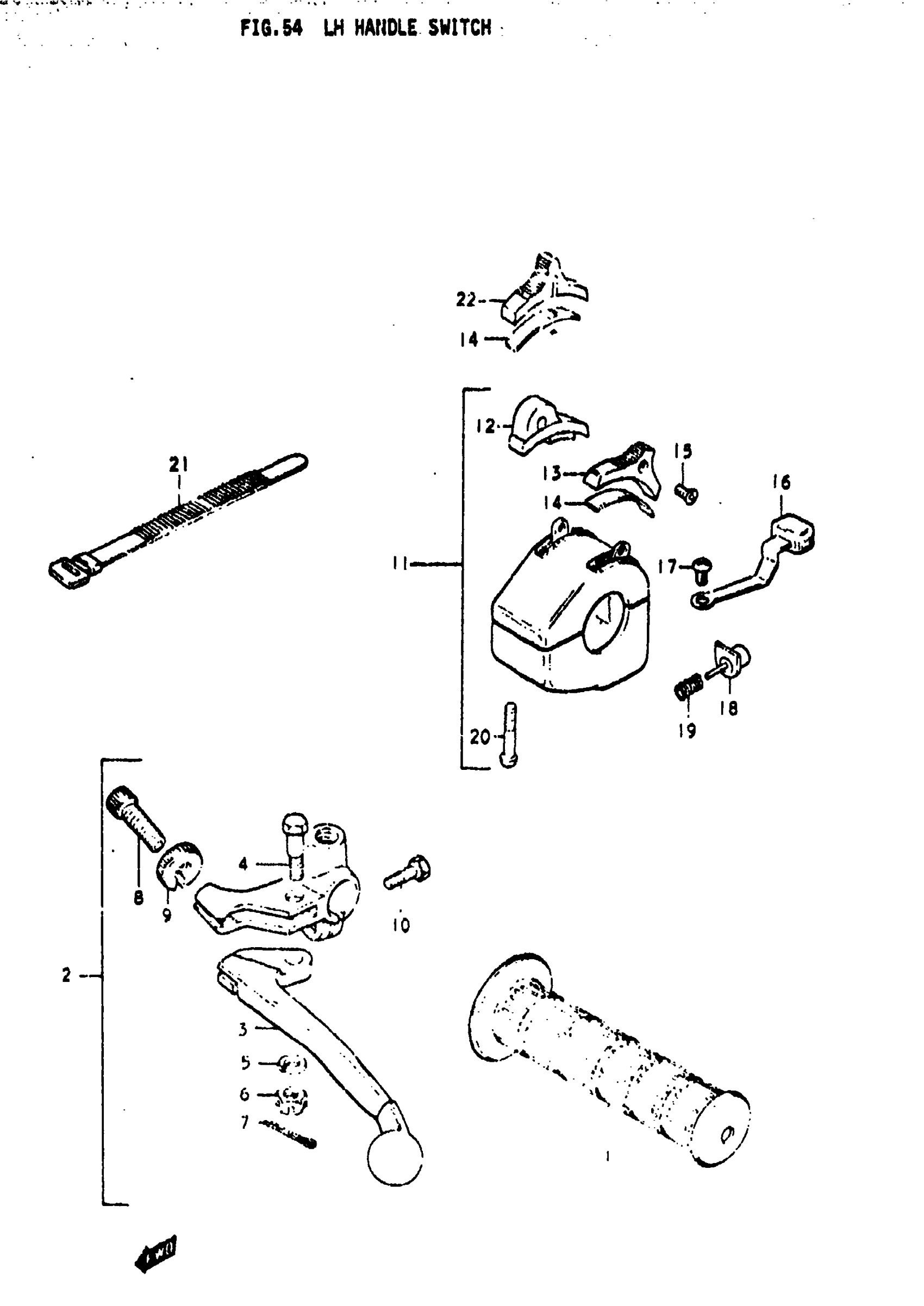

1976 Suzuki RE5 LH Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, LH | M,A

57211-33010

1
Out of stock

2

LEVER ASSY, CLUTCH | M,A; FROM 57500-18600; Includes Item(s) 3 - 10 This part replaces 57500-18601.

57500-45010

1
Out of stock

3

LEVER, CLUTCH | M,A This part replaces 57620-31010.

57620-45010

1
Out of stock

4

BOLT | M,A This part replaces 57431-11010.

57431-11013

1
Out of stock

5

1

$2.28

In stock

6

NUT | M,A

57433-11010

1
Out of stock

7

PIN | M,A This part replaces 04111-16158.

04111-1620A

1
Out of stock

8

ADJUSTER | M,A

57441-11010

1
Out of stock

9

NUT | M,A

57442-11010

1
Out of stock

10

BOLT | M,A This part replaces 01112-06208.

01500-06207

1
Out of stock

11

NO DESCRIPTION AVAILABLE | M,A; FROM 57700-31603; Includes Item(s) 12 - 20

57700-31622

1
Out of stock

12

KNOB, SWITCH STOP | M,A; FROM 57718-31010

57718-36630

1
Out of stock

13

KNOB, LIGHTING | M,A This part replaces 57713-33010.

57713-33011

1
Out of stock

14

PLATE | M,A

57714-33010

1
Out of stock

15

SCREW | M,A This part replaces 02121-03068.

02122-03067

2
Out of stock

16

KNOB, TURN SIGNAL SWITCH | M,A

57742-33010

1
Out of stock

17

SCREW | M,A This part replaces 02121-03068.

02122-03067

1
Out of stock

18

BUTTON, HORN | M,A

57850-31010

1
Out of stock

19

SPRING | M,A

57761-26010

1
Out of stock

20

SCREW | M,A This part replaces 02111-05207.

02112-05207

2
Out of stock

21

BAND | M,A

09407-12402

2
Out of stock

22

KNOB,HANDLE SWI | M,A; OPT This part replaces 57712-33011.

57712-33012

1
Out of stock
