1976 Suzuki RE5 Fuel Tank Diagram

← All diagrams

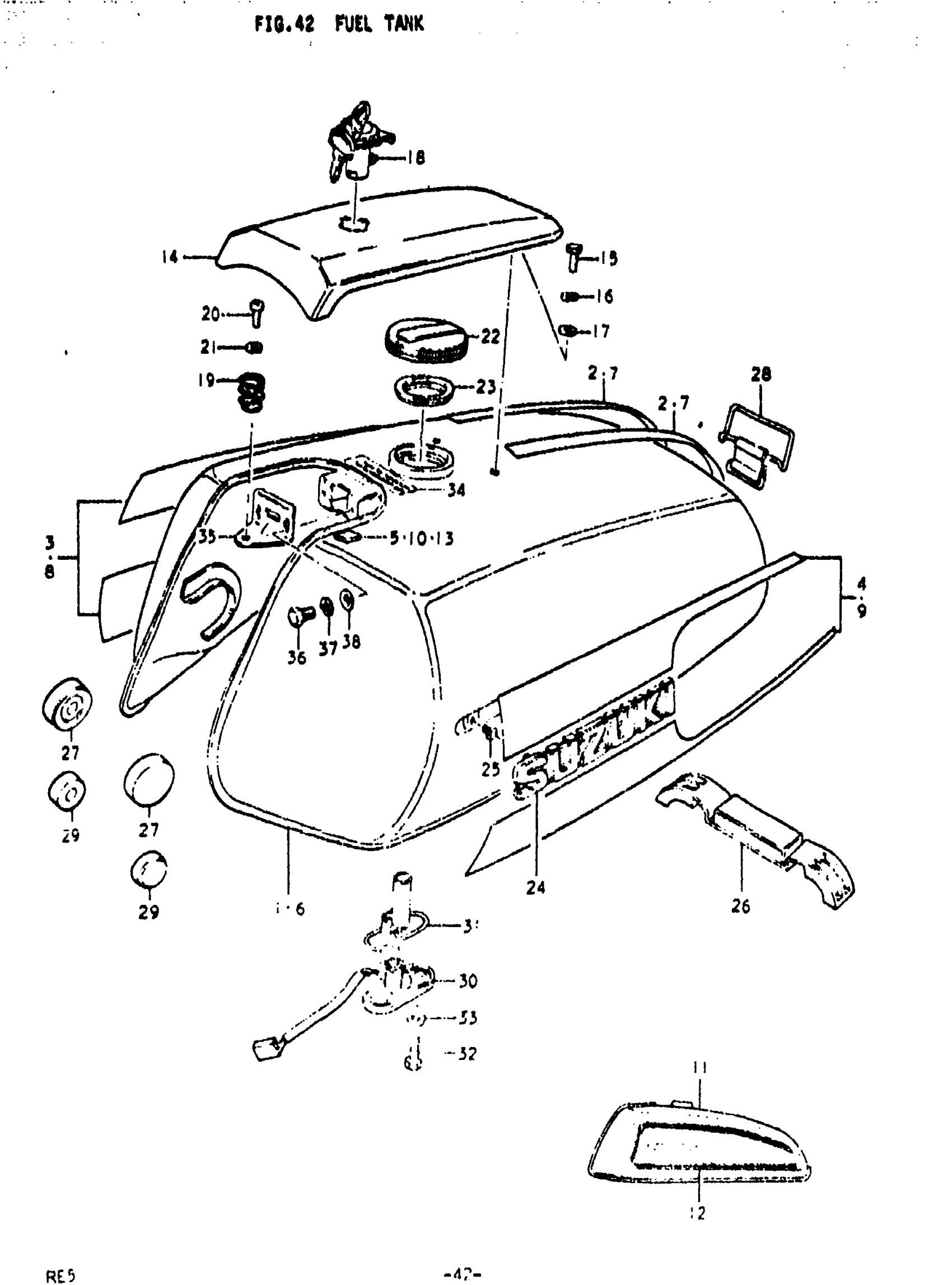

Find the part on the Fuel Tank diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki RE5 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 2 - 5 This part replaces 44110-37000-796.

44110-37000-13L

1
Out of stock

2

TAPE, STRIPING CENTER | M; TO 68100-37810-742

68117-37000-742

—
Out of stock

3

TAPE, STRIPING RH | M; TO 68100-37810-742

68115-37000-742

—
Out of stock

4

TAPE, STRIPING LH | M; TO 68100-37810-742

68125-37000-742

—
Out of stock

5

CUSHION | M This part replaces 44276-37000.

44276-37002

2
Out of stock

6

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 7 - 10 This part replaces 44110-37000-01A.

44110-37000-13L

1
Out of stock

7

NO DESCRIPTION AVAILABLE | M; TO 68100-37810-019 This part replaces 68117-37000-019.

68100-37810-019

—
Out of stock

8

TAPE, STRIPING RH | M; TO 68100-37810-019

68115-37000-019

—
Out of stock

9

NO DESCRIPTION AVAILABLE | M; TO 68100-37810-019 This part replaces 68125-37000-019.

68100-37810-019

—
Out of stock

10

CUSHION | M This part replaces 44276-37000.

44276-37002

2
Out of stock

11

NO DESCRIPTION AVAILABLE | A; Includes Item(s) 12 - 13 This part replaces 44110-37900-019.

44110-37000-13L

1
Out of stock

12

TAPE SET | A

68100-37820-998

1
Out of stock

13

CUSHION | A This part replaces 44276-37000.

44276-37002

2
Out of stock

14

COVER, FUEL TANK FRONT | M,A

44270-37000

1
Out of stock

15

BOLT | M,A This part replaces 01112-06108.

01500-06107

2
Out of stock

16

2

$2.28

In stock

17

.WASHER | M,A This part replaces 08322-11068.

08322-0106B

2
Out of stock

18

LOCK ASSY, FRONT COVER | M,A

44280-37010

1
Out of stock

19

SPRING | M,A

09446-17001

1
Out of stock

20

SCREW | M,A This part replaces 02111-05108.

02112-05107

1
Out of stock

21

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

1
Out of stock

22

CAP FUEL TANK | M,A; TO 44210-23300M,A; WITH 85413-70000 This part replaces 44210-26200.

44200-23810

1
Out of stock

23

GASKET | M,A

44248-12000

1
Out of stock

24

EMBLEM | M,A; FROM 68111-37000

68111-31200

2
Out of stock

25

NUT | M,A

09148-04005

4
Out of stock

26

CUSHION, FUEL TANK REAR | M,A

44541-37000

1
Out of stock

27

CUSHION | M,A This part replaces 09329-10007.

09329-10026

2
Out of stock

28

BAND | M,A

09462-00049

1
Out of stock

29

STOPPER | M,A

09329-10009

2
Out of stock

30

GAUGE ASSY, FUEL LEVEL | M; L:92 This part replaces 34810-37011.

34810-37012

1
Out of stock

30

GAUGE ASSY, FUEL LEVEL | A; L:77; Includes Item(s) 31

34810-37012

1
Out of stock

31

O RING | M,A

34825-35310

1
Out of stock

32

BOLT, RUBBER STOP | M,A This part replaces 01111-05128.

01500-05127

2
Out of stock

33

GASKET | M,A; FROM 09168-05008

09168-05009

2
Out of stock

34

LABEL, FUEL | M,A

68364-37610

—
Out of stock

35

TANK FR COVER H | M,A This part replaces 44290-37000.

44290-3700V

1
Out of stock

36

BOLT | M,A This part replaces 01112-05108.

01500-0510B

2
Out of stock

37

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

2
Out of stock

38

WASHER | M,A This part replaces 08322-11058.

08322-01057

2
Out of stock
