1976 Suzuki RE5 Chain Case - Shock Absorber Diagram

← All diagrams

Find the part on the Chain Case - Shock Absorber diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

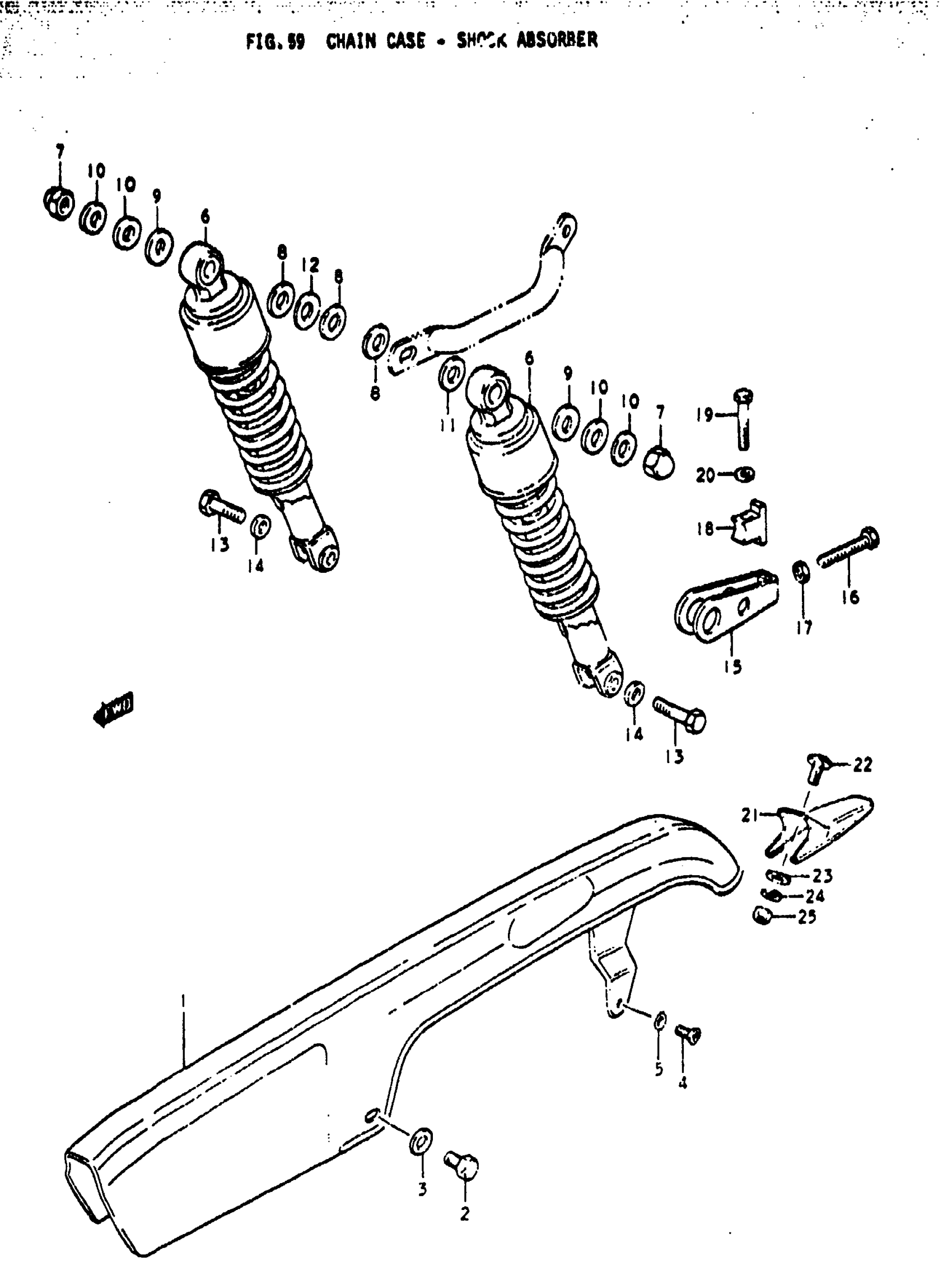

1976 Suzuki RE5 Chain Case - Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN CASE | M,A

61310-37000

—
Out of stock

2

BOLT | M,A

09100-06011

1
Out of stock

3

WASHER | M,A; 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

1
Out of stock

4

SCREW | M,A This part replaces 02122-06168.

02122-06167

1
Out of stock

5

LOCK WASHER | M,A

08323-31068

1
Out of stock

6

SHOCK ABSORBER, REAR | M This part replaces 62100-37030.

62100-37031

—
Out of stock

6

SHOCK ABSORBER, REAR | A

62100-37031

—
Out of stock

7

NUT | M,A This part replaces 08313-11107.

08313-10107

2
Out of stock

8

WASHER | M,A This part replaces 08322-21128.

08322-01127

3
Out of stock

9

WASHER | M,A; 10.5x28x2.3

09160-10035

2
Out of stock

10

WASHER | M,A; 10.5x24x3.2 This part replaces 09160-10033.

09160-10128-XC0

4
Out of stock

11

WASHER | M,A; 12.5x24x1.6 This part replaces 09160-12004.

09160-12088

1
Out of stock

12

WASHER, FRONT AXLE | M,A; 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

1
Out of stock

13

BOLT (10X38) | M,A This part replaces 09104-10007.

09104-10029

2
Out of stock

14

WASHER | M,A This part replaces 08322-11108.

08322-01107

2
Out of stock

15

ADJUSTER, CHAIN | M,A This part replaces 61410-31000.

61410-31001

2
Out of stock

16

BOLT (8X50) | M,A This part replaces 09104-08006.

09104-08034

2
Out of stock

17

2

$1.93

In stock

18

SUPPORTER,CHAIN | M,A This part replaces 61433-31000.

61433-3100V

2
Out of stock

19

BOLT | M,A This part replaces 01122-08408.

01500-0840A

2
Out of stock

20

WASHER | M,A This part replaces 08322-11088.

08322-01087

2
Out of stock

21

EXTENSION, CHAIN CASE | M,A; TO 61331-37001

61331-37000

—
Out of stock

22

SCREW | M,A This part replaces 02141-05107.

02142-05107

1
Out of stock

23

WASHER | M,A This part replaces 08322-21058.

08322-01057

1
Out of stock

24

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

1
Out of stock

25

NUT | M,A This part replaces 08311-11058.

08310-00057

1
Out of stock
