1976 Suzuki RE5 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

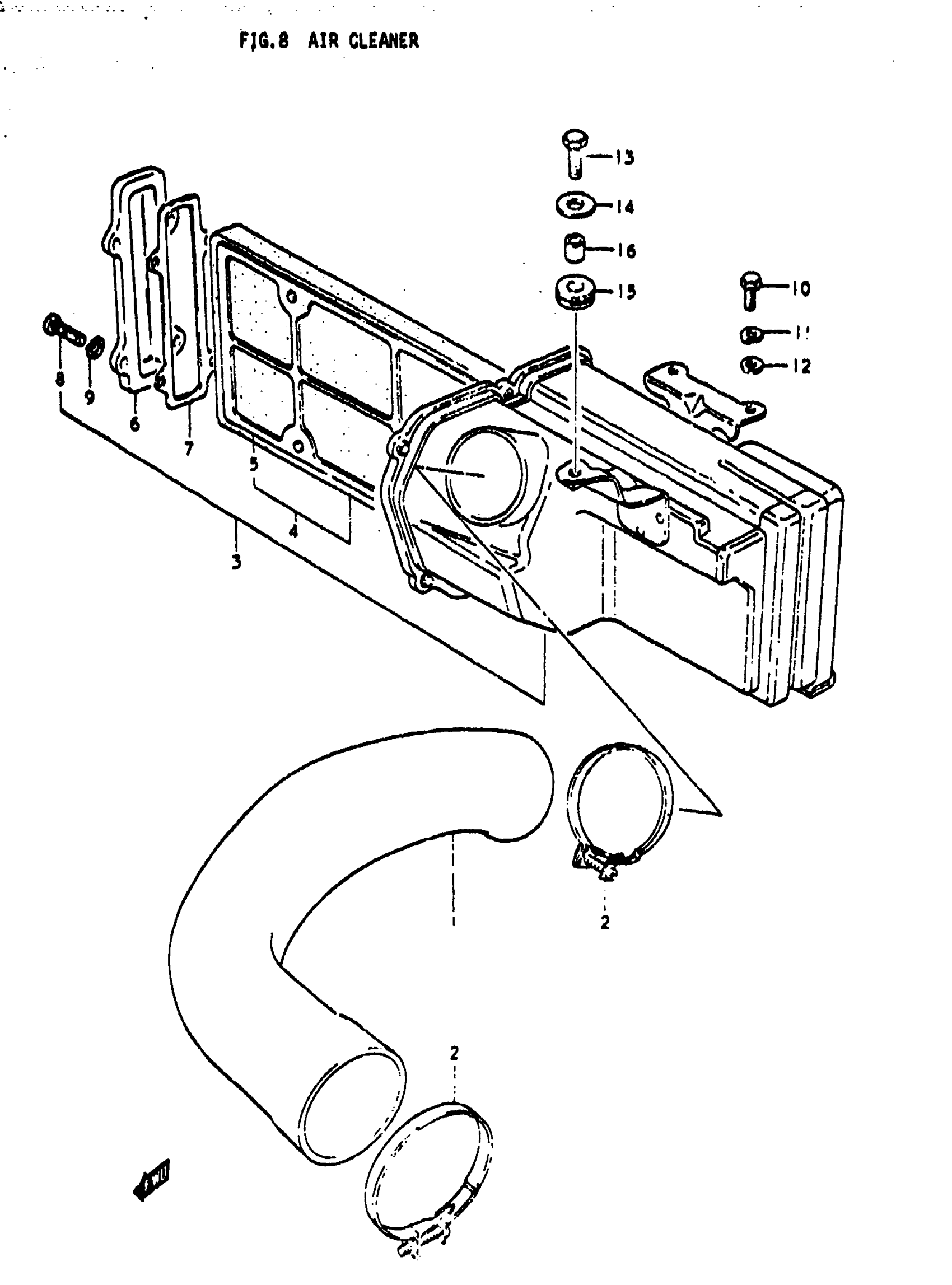

1976 Suzuki RE5 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, CARBURETOR AIR INJET | M,A

13880-37000

1
Out of stock

2

..CLAMP | M,A This part replaces 09402-60306.

09402-60208

2
Out of stock

3

CLEANER ASSY, AIR | M,A; FROM 13700-37010; Includes Item(s) 4 - 9

13700-37011

1
Out of stock

4

FILTER ASSY | M,A

13780-37010

1
Out of stock

5

ELEMENT | M,A

13781-37010

1
Out of stock

6

COVER | M,A

13704-37010

1
Out of stock

7

GASKET | M,A

13743-37010

1
Out of stock

8

SCREW | M,A This part replaces 02111-05207.

02112-05207

4
Out of stock

9

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

4
Out of stock

10

BOLT | M,A This part replaces 01112-06128.

01500-06127

2
Out of stock

11

2

$2.28

In stock

12

WASHER | M,A This part replaces 08322-21068.

08322-01067

2
Out of stock

13

BOLT | M,A This part replaces 01112-06208.

01500-06207

1
Out of stock

14

WASHER (6.5X20X1.2) | M,A; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

1
Out of stock

15

CUSHION (8.5X20X8) | M,A This part replaces 09320-08007.

09320-08510

1
Out of stock

16

SPACER (6.5X9X7) | M,A; 7x9x7 This part replaces 09180-07005.

09180-06259

1
Out of stock
