1978 Yamaha RD400 (RD400E) Stand Footrest Diagram

← All diagrams

Find the part on the Stand Footrest diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

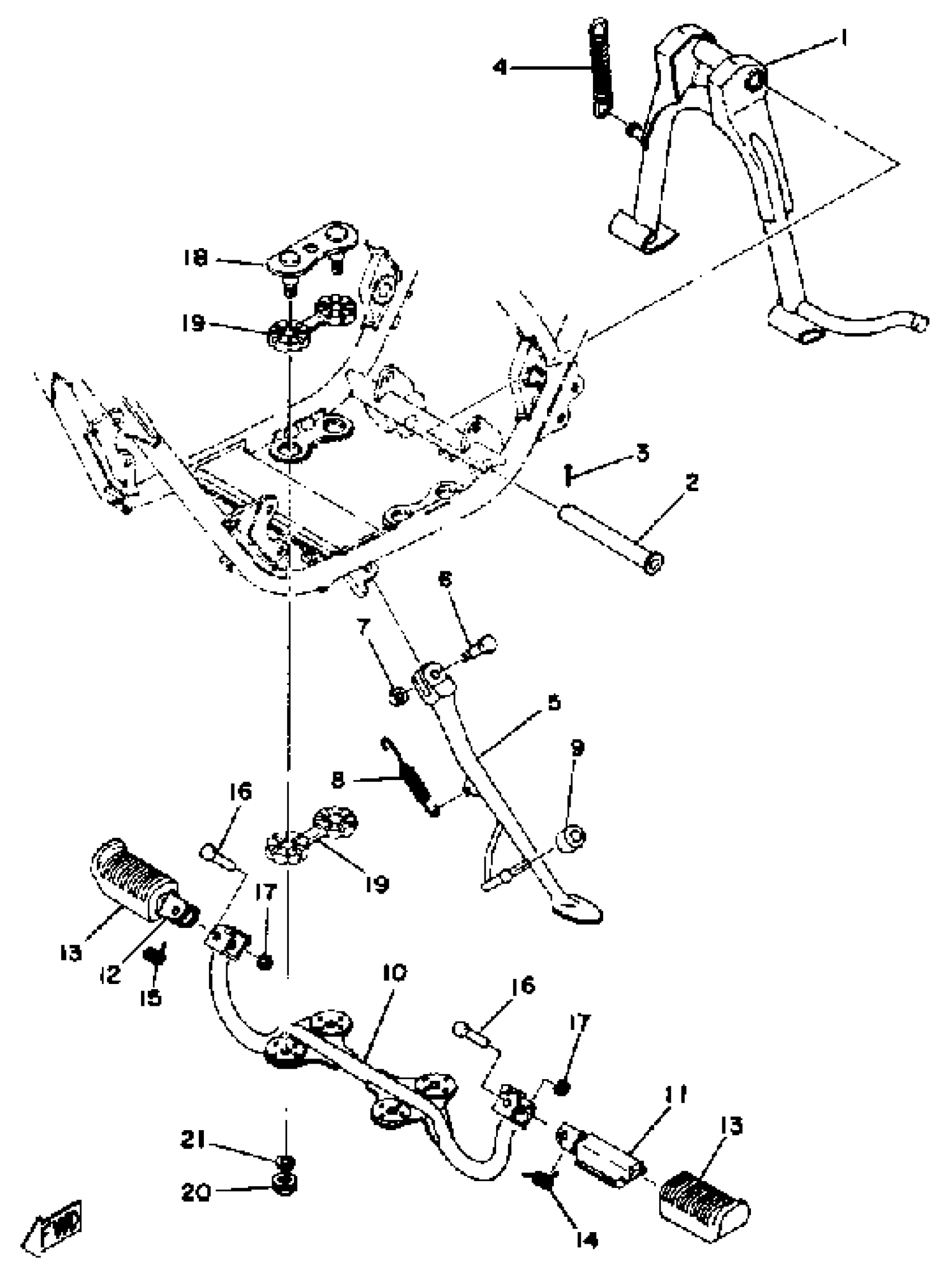

1978 Yamaha RD400 (RD400E) Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

INACTIVE PART NUMBER

278-27111-00-00

1
Out of stock

2

SHAFT, MAIN STAND

278-27112-00-00

1
Out of stock

3

PIN, COTTER

91490-30030-00

1

$7.15

In stock

4

SPRING, TENSION

90506-35058-00

1
Out of stock

5

STAND, SIDE

1A0-27311-00-33

1
Out of stock

6

UNAVAILABLE IN PRICE BOOK (266-27317-00)

90100-08034-00

1
Out of stock

7

. NUT

95380-08700-00

1

$3.07

In stock

8

SPRING, TENSION (360)

90507-25023-00

1

$24.52

In stock

9

STOPPER

278-27314-00-00

1
Out of stock

10

INACTIVE PART NUMBER

1A0-27412-01-00

1
Out of stock

11

FOOTREST

1J7-27451-00-00

1
Out of stock

12

FOOTREST

1A0-27461-00-00

1
Out of stock

13

COVER, FOOTREST

1A0-27413-00-00

1
Out of stock

14

. SPRING, TORSION

90508-20154-00

1
Out of stock

15

SPRING TORSION 371274560000

90508-20155-00

1
Out of stock

16

PIN (214-27418-00)

90243-08006-00

—

$10.68

In stock

17

—

$6.58

In stock
