1978 Yamaha RD400 (RD400E) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

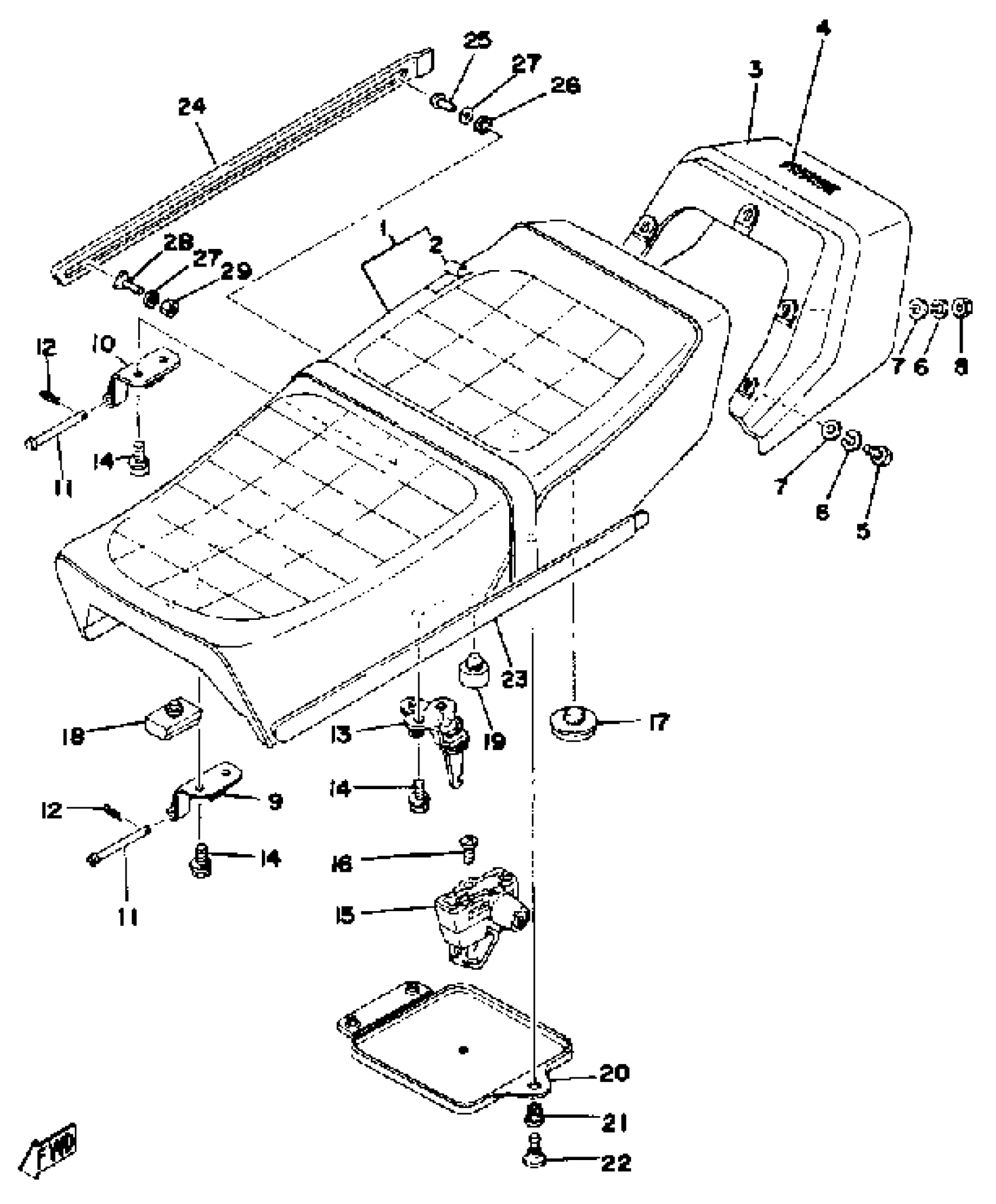

1978 Yamaha RD400 (RD400E) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

1A2-W2472-11-00

1
Out of stock

2

. COVER, DOUBLE SEAT

1A2-24731-20-00

1
Out of stock

3

INACTIVE PART NUMBER

1A2-24756-00-20

1
Out of stock
← Front Fender Rear Fender Side Cover BOX →
