1978 Yamaha RD400 (RD400E) Side Cover BOX Diagram

← All diagrams

Find the part on the Side Cover BOX diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

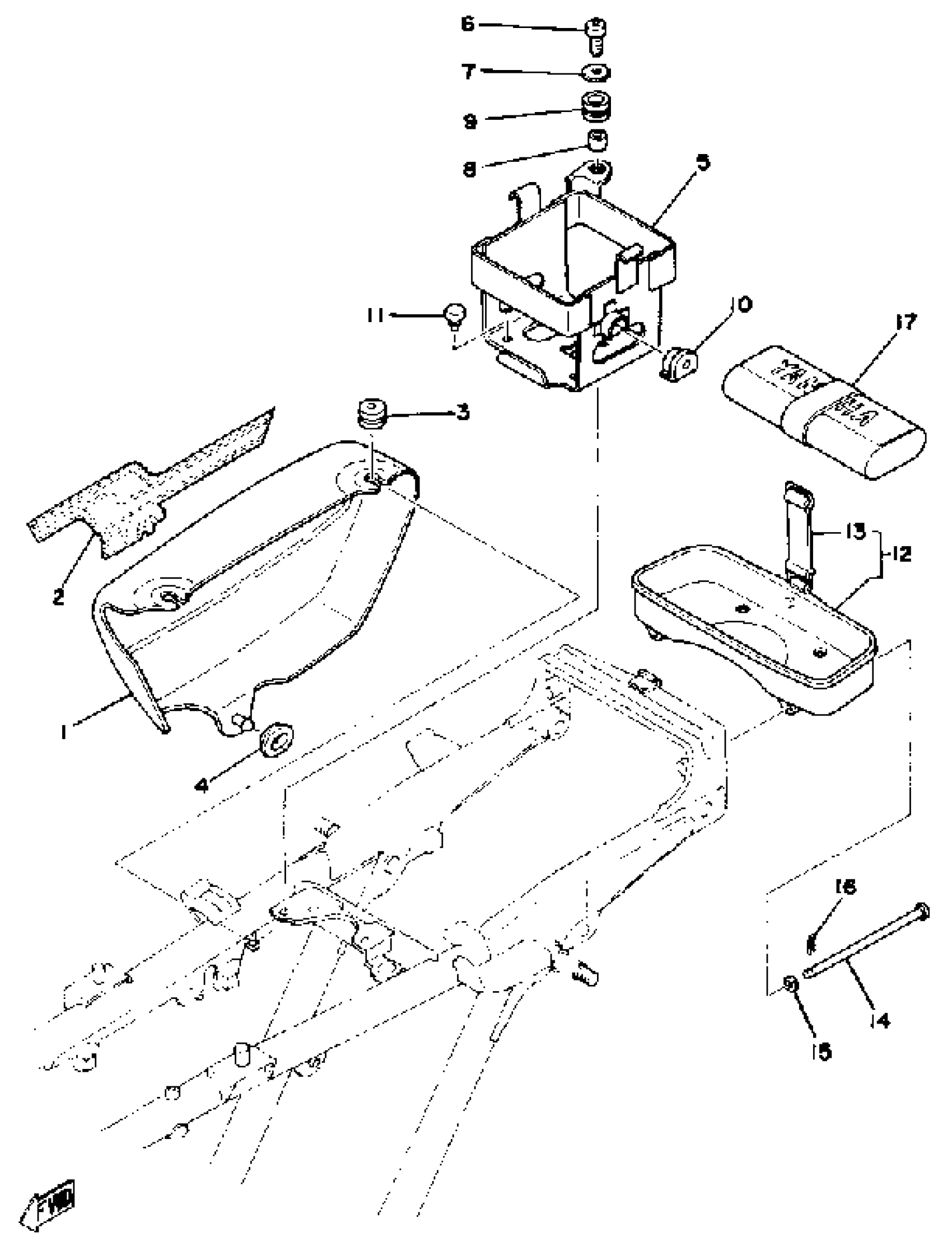

1978 Yamaha RD400 (RD400E) Side Cover BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 2

1A1-21721-00-20

1
Out of stock

2

INACTIVE PART NUMBER

1A1-21784-60-00

1
Out of stock

3

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

4

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

5

INACTIVE PART NUMBER

1A0-21170-01-33

1
Out of stock

6

SCREW, PAN HEAD

92503-05025-00

1
Out of stock

7

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

8

COLLAR

90387-07020-00

1

$6.17

In stock

9

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

10

DAMPER

1A0-21746-01-00

1
Out of stock

11

DAMPER, SIDE COVER

141-21717-00-00

1

$6.48

In stock

12

INACTIVE PART NUMBER

1A0-21107-00-00

1
Out of stock

13

BAND, BATTERY

26L-82131-00-00

1

$7.05

In stock

14

PIN, CLEVIS

91701-05120-00

1
Out of stock

15

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

16

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

17

TOOL KIT

1KT-W2810-01-00

1
Out of stock
