1978 Yamaha RD400 (RD400E) Fuel Tank Diagram

← All diagrams

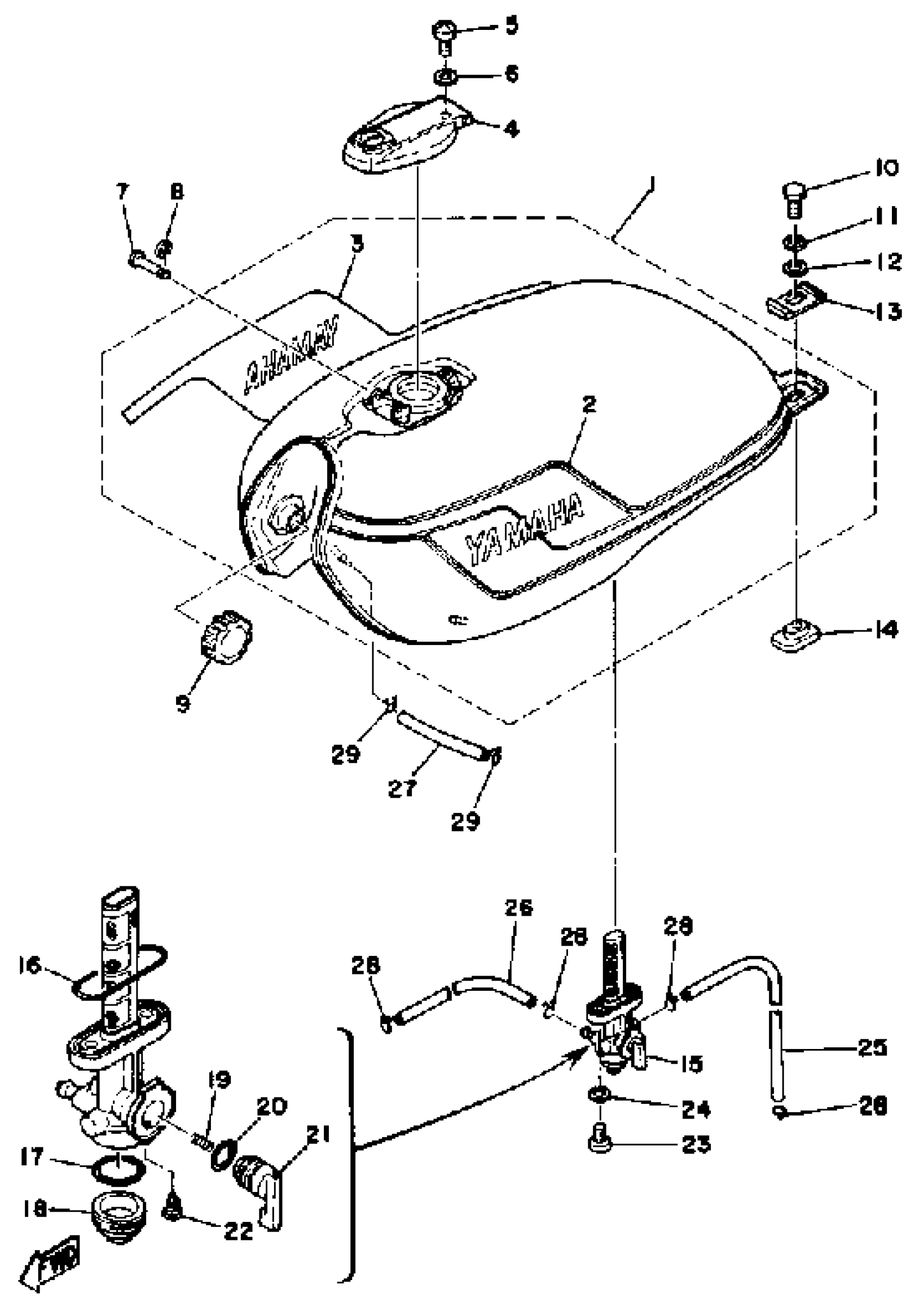

Find the part on the Fuel Tank diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha RD400 (RD400E) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

INACTIVE PART NUMBER

1A0-24110-00-08

1
Out of stock

2

. GRAPHIC, FUEL TNK 1

1A1-24244-60-00

1
Out of stock

3

. INACTIVE PART NUMBER

1A1-24245-60-00

1
Out of stock

4

CAP ASSEMBLY

1E7-24602-00-00

1
Out of stock

5

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

PIN, SPECIAL SHAPE

90249-03123-00

1
Out of stock

8

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

9

DAMPER, LOCATING 1

3TB-24181-00-00

1

$12.29

In stock

10

BOLT (661)

97013-06012-00

1

$4.71

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

WASHER, SPECIAL SHAPE

90209-06139-00

1
Out of stock

13

WASHER, SPECIAL

1A0-24186-00-00

1
Out of stock

14

DAMPER, LOCATING

1A0-24181-00-00

1
Out of stock

15

FUEL COCK ASSY 1

4L0-24500-00-00

1

$148.09

In stock

16

GASKET, BODY

214-24512-00-00

—

$26.20

In stock

17

GASKET, FILTER

498-24522-00-00

—

$33.15

In stock

18

. CUP, FILTER

1A0-24521-01-00

1
Out of stock

19

. SPRING

1A0-24529-01-00

1
Out of stock

20

O-RING

1A0-24512-00-00

—

$6.72

In stock

21

. LEVER, COCK

1A0-24524-01-00

1
Out of stock

22

. SCREW, LEVER FITTING

619-24535-00-00

1
Out of stock

23

SCREW 256241430000

90149-06011-00

—

$1.58

In stock

24

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock

25

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

26

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

27

HOSE (L200)

90445-10752-00

—

$3.88

In stock

28

CLIP 101235600

90467-08003-00

—

$6.13

In stock

29

CLIP

90467-090A2-00

—

$2.51

In stock
