1973 Yamaha RD350 (RD350) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1973 Yamaha RD350 (RD350), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

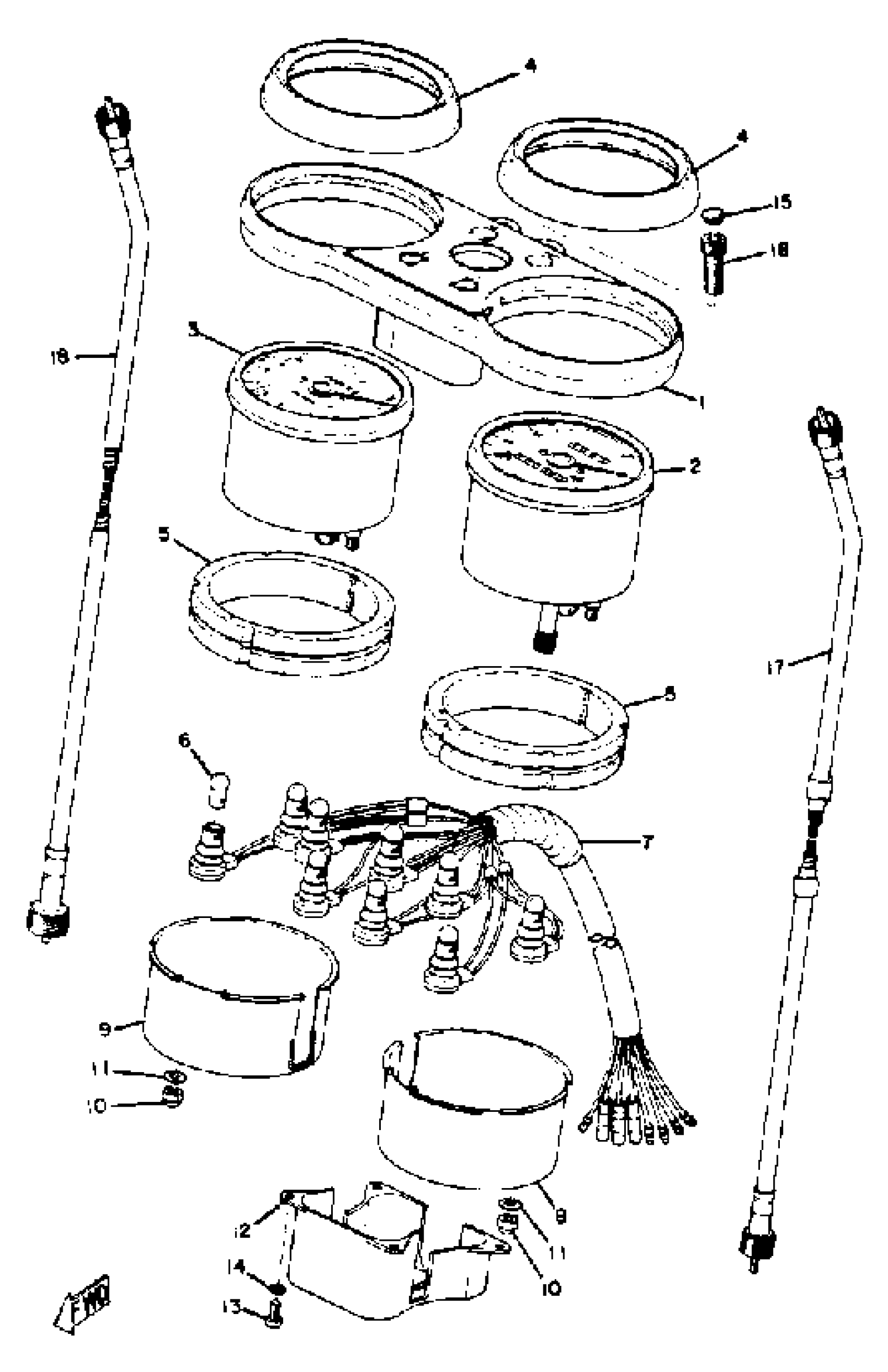

1973 Yamaha RD350 (RD350) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, METER

360-83519-41-98

1
Out of stock

2

SPEEDOMETER ASSEMBLY

(360-83570-43-00)

1
Out of stock

2

SPEEDOMETER ASSEMBLY

(99999-00901-00)

1
Out of stock

3

TACHOMETER ASSEMBLY

360-83540-03-00

1
Out of stock

3

TACHOMETER ASSEMBLY

(360-83540-07-00)

1
Out of stock

4

DAMPER

360-83513-00-00

1
Out of stock

5

DAMPER

360-83523-00-00

1
Out of stock

6

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

7

SOCKET CORD ASSEMBLY

360-83509-40-00

1
Out of stock

8

COVER, SPEEDOMETER

360-83507-00-00

1
Out of stock

8

COVER, SPEEDOMETER

(360-83507-01-00)

1
Out of stock

9

COVER, TACHOMETER

360-83508-01-00

1
Out of stock

10

NUT (CROWN)

95303-05800-00

1
Out of stock

11

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

12

COVER, SOCKET

360-83547-00-00

1
Out of stock

13

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

14

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

15

CAP, BOLT (371,447)

341-23469-00-00

—

$8.55

In stock

16

BOLT, SOCKET

91317-08025-00

—

$6.25

In stock

17

SPEEDOMETER CABLE ASSY

55K-83550-02-00

—

$32.85

In stock

18

TACHOMETER CABLE ASSY

360-83560-01-00

—

$62.78

In stock
