1973 Yamaha RD350 (RD350) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1973 Yamaha RD350 (RD350), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

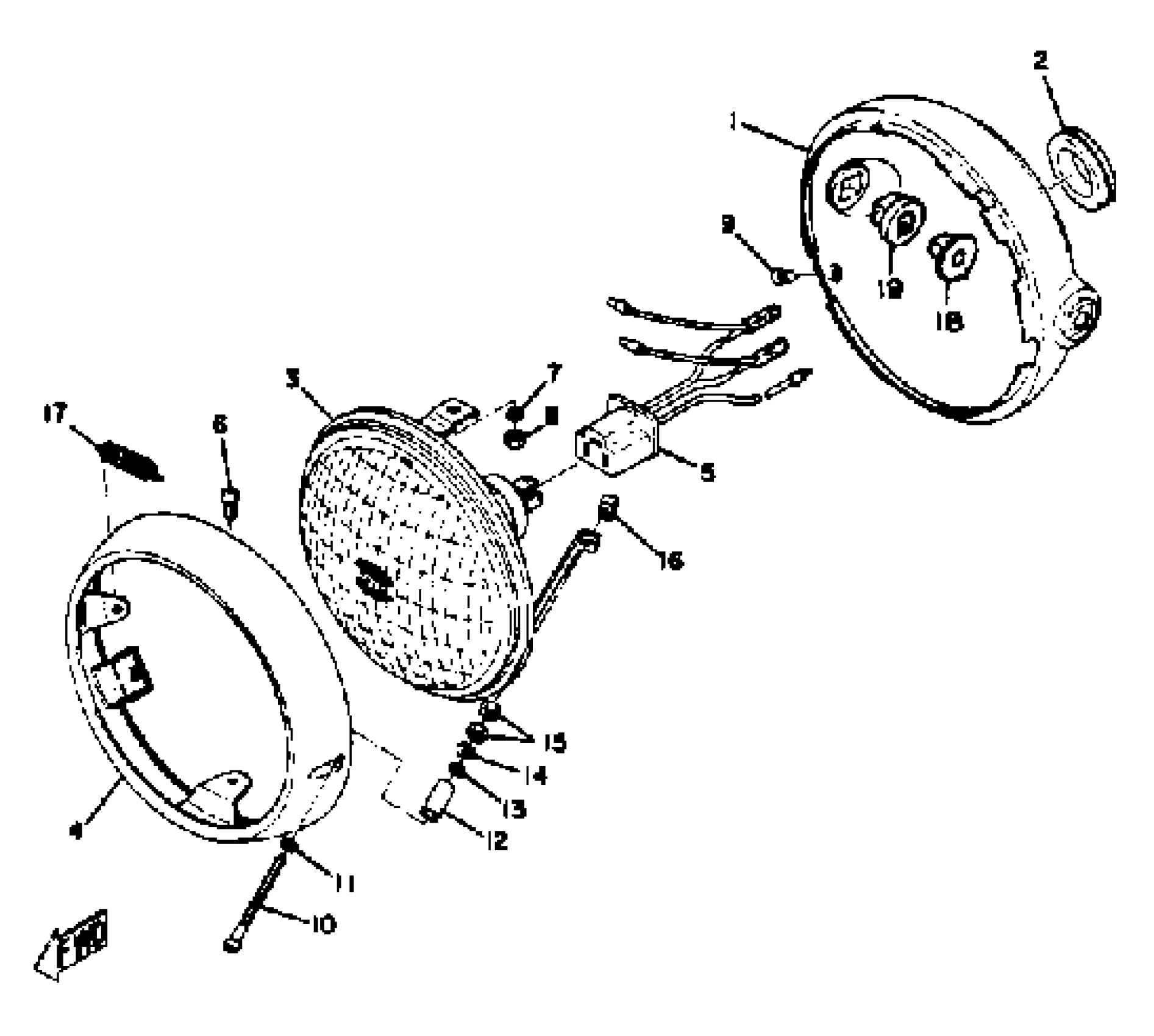

1973 Yamaha RD350 (RD350) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

(360-84330-61-A2)

1
Out of stock

1

BODY ASSEMBLY

360-84330-61-A8

1
Out of stock

1

UNAVAILABLE IN PRICE BOOK

36-08433-06-1U

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

LENS ASSEMBLY

246-84320-60-00

1
Out of stock

4

RIM, HEADLIGHT

235-84315-60-00

1
Out of stock

5

SOCKET

246-84312-60-00

1
Out of stock

6

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

9

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

10

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

11

WASHER,SPECIAL

233-84127-60-00

1

$2.78

In stock

12

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

13

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

14

SPACER

168-84328-60-00

1
Out of stock

15

NUT(6TA)

95307-04600-00

—

$6.69

In stock

16

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

17

SPRING

(132-84335-60-00)

1
Out of stock

18

COLLAR, BODY FTNG

214-84145-60-00

1
Out of stock

19

DAMPER, HEADLIGHT

256-84345-60-00

1
Out of stock
