1973 Yamaha RD350 (RD350) Generator Diagram

← All diagrams

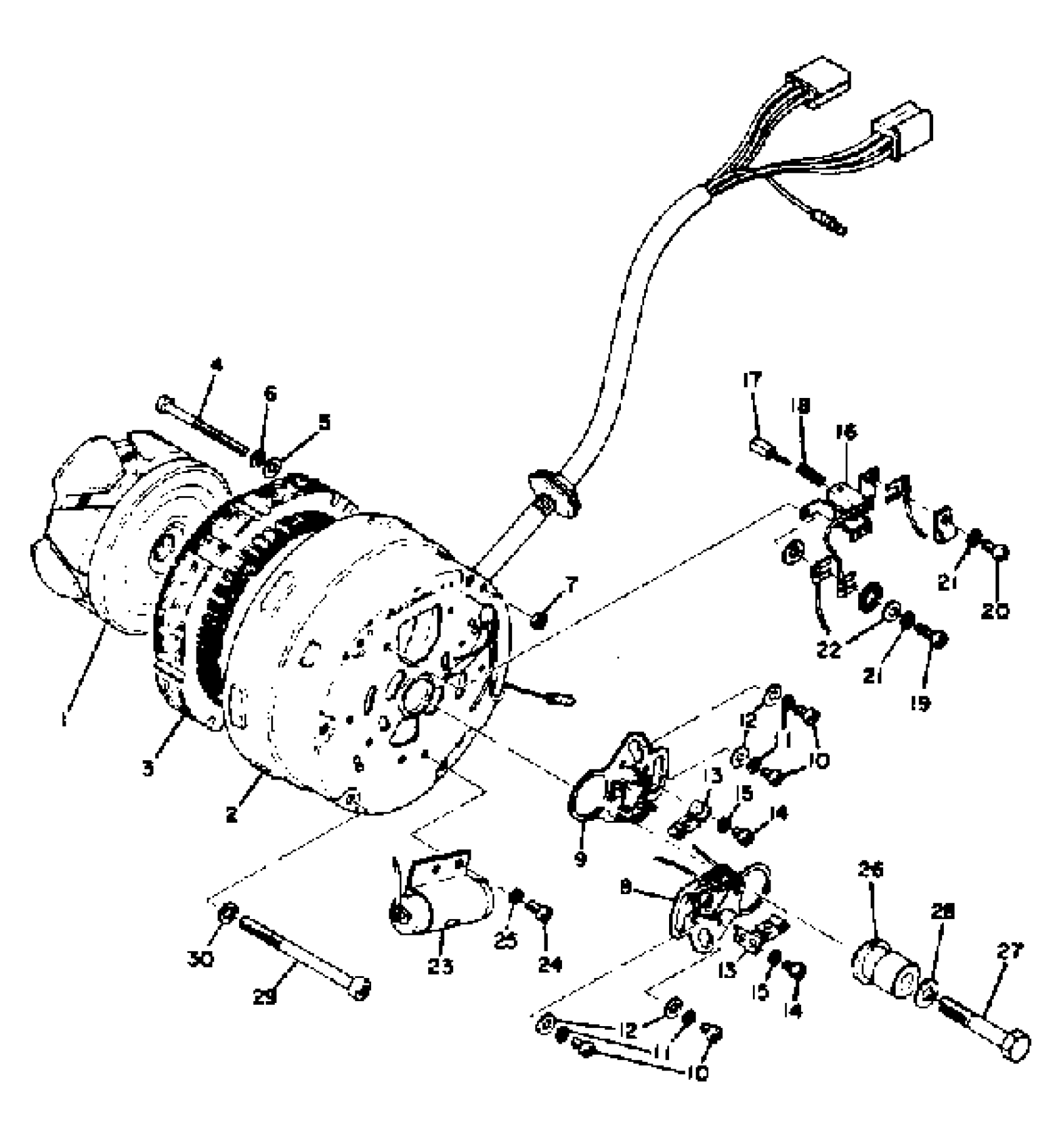

Find the part on the Generator diagram for your 1973 Yamaha RD350 (RD350), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha RD350 (RD350) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC GENERATOR ASSEMBLY

(360-81600-92-00)

1
Out of stock

1

. ROTOR ASSEMBLY

(360-81650-20-00)

1
Out of stock

2

AC GENERATOR ASSEMBLY

(360-81600-92-00)

1
Out of stock

3

.. ARMATURE ASSEMBLY

360-81640-20-00

1
Out of stock

4

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

5

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

6

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

7

. UNAVAILABLE IN PRICE BOOK

16-92812-10-00

1
Out of stock

7

.. CONTACT BRKR ASSEMBLY

278-81621-20-00

1
Out of stock

7

.. CONTACT BRKR ASSEMBLY

278-81622-20-00

1
Out of stock

7

.. CONDENSER 1

360-81625-90-00

1
Out of stock

7

NUT(6TA)

95307-04600-00

1

$6.69

In stock

7

TUNE KIT RD250/350

ACC-01100-35-10

1
Out of stock

7

1

$4.21

In stock

8

.. CONTACT BRKR ASSEMBLY

278-81621-20-00

1
Out of stock

9

.. CONTACT BRKR ASSEMBLY

278-81622-20-00

1
Out of stock

10

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

11

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

12

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

13

LUBRICATOR

(131-81231-20-00)

1
Out of stock

14

.. UNAVAILABLE IN PRICE BOOK(98501-04008)

98580-04008-99

1
Out of stock

15

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

16

.. BRUSH HOLDER ASSEMBLY

360-81619-20-00

1
Out of stock

17

.. BRUSH 1

278-81611-20-00

1
Out of stock

18

.. SPRING, BRUSH

278-81617-20-00

1
Out of stock

19

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

20

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

21

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

22

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

23

. UNAVAILABLE IN PRICE BOOK

16-92812-10-00

1
Out of stock

23

.. CONTACT BRKR ASSEMBLY

278-81621-20-00

1
Out of stock

23

.. CONTACT BRKR ASSEMBLY

278-81622-20-00

1
Out of stock

23

.. CONDENSER 1

360-81625-90-00

1
Out of stock

23

.. CONDENSER 1

360-81625-90-00

1
Out of stock

23

TUNE KIT RD250/350

ACC-01100-35-10

1
Out of stock

23

1

$4.21

In stock

24

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

25

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

26

. CAM

278-81651-20-00

1
Out of stock

27

. BOLT

278-81652-20-00

1
Out of stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

SCREW,PANHEAD (EG9)

98580-05570-00

—

$5.62

In stock

30

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
