1973 Yamaha RD250 (RD250) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1973 Yamaha RD250 (RD250), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

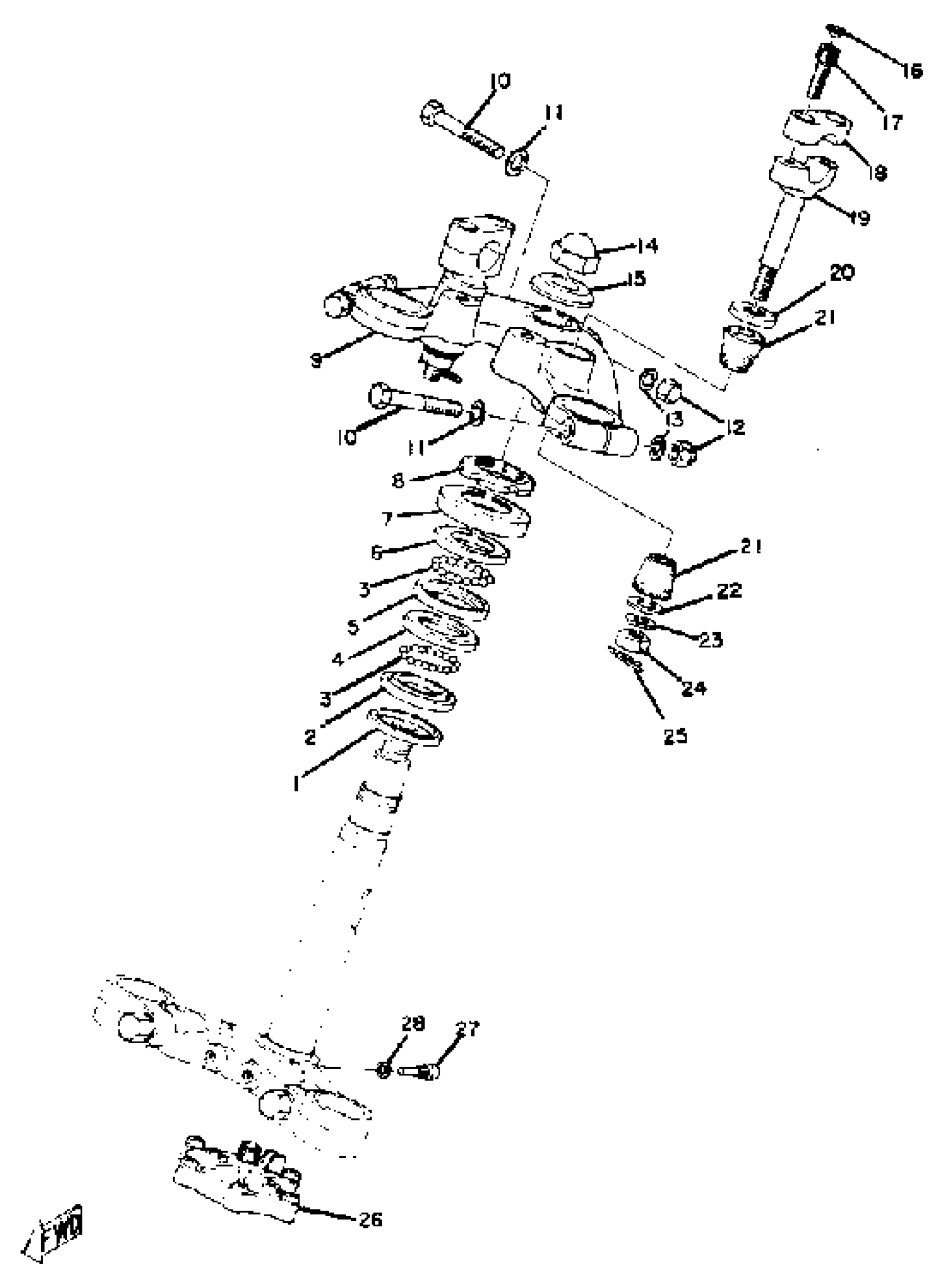

1973 Yamaha RD250 (RD250) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

2

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

3

BALL

93501-04011-00

1
Out of stock

4

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

5

RACE,BALL 2

4FP-F3412-10-00

—

$3.98

In stock

6

RACE, BALL 1

4FP-F3411-20-00

1

$8.70

In stock

7

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

8

NUT

90179-25004-00

1

$20.78

In stock

9

CROWN, HANDLE

(360-23435-01-98)

1
Out of stock

9

CROWN, HANDLE

(361-23435-00-98)

1
Out of stock

10

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

11

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

12

NUT, CROWN

95303-08800-00

1

$7.52

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

NUT, CROWN

90176-16016-00

1
Out of stock

15

WASHER, SPEC''L SHAP

90209-17057-00

1
Out of stock

16

CAP, BOLT (371,447)

341-23469-00-00

—

$8.55

In stock

17

BOLT, SOCKET

91317-08025-00

—

$6.25

In stock

18

HOLDER, HANDLE UPR

360-23441-01-98

1
Out of stock

19

HOLDER, HANDLE LWR

256-23442-00-98

1
Out of stock

20

WASHER 278234480000

90209-12102-00

—
Out of stock

21

BUSH, SPEC''L RUBBER

(90385-12020-00)

1
Out of stock

22

WASHER, PLATE (3X3)

90201-15797-00

—

$6.29

In stock

23

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

24

NUT (682)

95380-10700-00

1

$5.78

In stock

25

CLIP 136253750000

90468-12006-00

—

$5.10

In stock

26

HDLBR SMY DMPR ASSEMBLY

5G2-23490-00-00

1
Out of stock

27

BOLT

(214-23492-00-00)

1
Out of stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
