1973 Yamaha RD250 (RD250) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1973 Yamaha RD250 (RD250), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

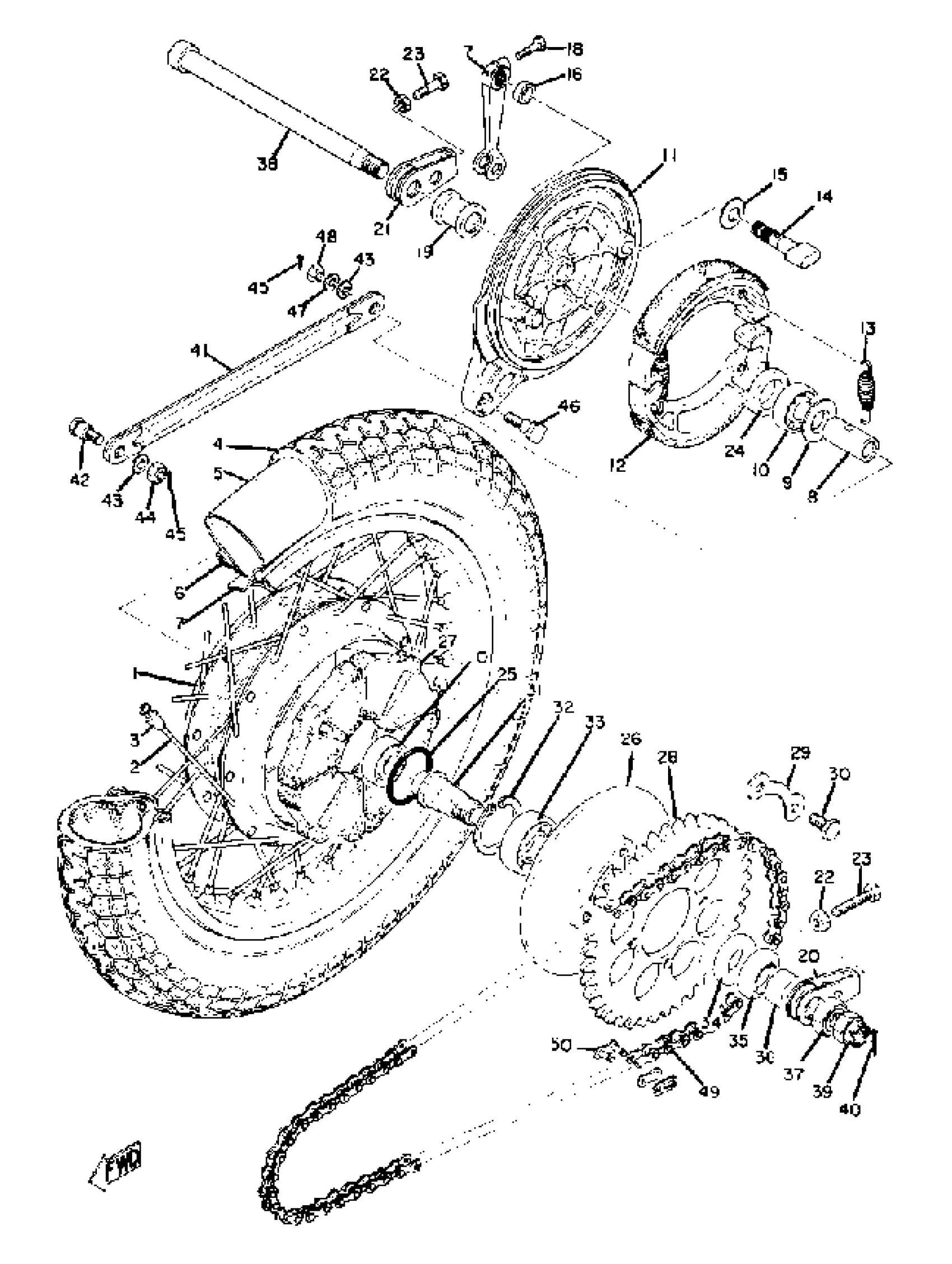

1973 Yamaha RD250 (RD250) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(278-25311-00-00)

1
Out of stock

2

SPOKE SET, REAR

278-25304-00-00

1
Out of stock

2

SPOKE SET, INNER 2

(278-25396-90-00)

1
Out of stock

2

SPOKE SET, OUTER 2

(278-25397-90-00)

1
Out of stock

3

BALANCER, WHEEL

3HT-25398-00-00

1

$6.89

In stock

4

TIRE

(94132-18338-00)

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

RIM 1.85X18

94418-18026-00

1
Out of stock

7

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

8

SPACER

(90560-17140-00)

1
Out of stock

9

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

10

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

11

BRAKE SHOE PLT ASSEMBLY

(360-25026-10-38)

1
Out of stock

12

BRAKE SHOE KIT

5R3-W253E-00-00

—

$75.34

In stock

13

1

$8.09

In stock

14

CAMSHAFT

4L0-25351-00-00

—
Out of stock

15

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

16

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

17

LEVER, CAM SHAFT

214-25355-00-00

—

$63.43

In stock

18

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

19

COLLAR, WHEEL

148-25383-00-00

1
Out of stock

20

PULLER, CHAIN 2

(1A1-25389-00-00)

1
Out of stock

21

PULLER,CHAIN 2

12R-25389-00-00

1
Out of stock

22

NUT, HEXAGON (509)

90170-08158-00

—

$1.10

In stock

22

. NUT

95380-08700-00

1

$3.07

In stock

23

BOLT

90101-08060-00

—

$4.92

In stock

24

OIL SEAL

93104-25008-00

1
Out of stock

25

O-RING (70E)

93210-54534-00

1

$5.46

In stock

26

CLUTCH, HUB

(168-25366-00-00)

1
Out of stock

27

DAMPER

278-25364-00-00

1
Out of stock

28

SPROCKET, DRIVN 40T

360-25440-20-00

1
Out of stock

29

WASHER

148-25412-00-00

1
Out of stock

30

BOLT (583)

90101-10303-00

—

$6.25

In stock

31

AXLE, SPROCKET

152-25387-00-00

1
Out of stock

32

CIRCLIP(26H)

99009-52500-00

—

$10.74

In stock

33

BEARING

93306-20503-00

1
Out of stock

34

OIL SEAL

93102-32037-00

1
Out of stock

35

COVER, HUB DUST

(168-25367-00-00)

1
Out of stock

36

COLLAR

90387-23441-00

1
Out of stock

37

NUT, HEXAGON

90170-22097-00

1
Out of stock

38

AXLE,WHEEL

150-25381-01-00

1
Out of stock

39

NUT, CASTLE

90171-16007-00

1
Out of stock

40

PIN, COTTER

91490-30030-00

—

$7.15

In stock

41

BAR, TENSION

(168-25371-00-00)

1
Out of stock

42

BOLT

90109-08375-00

1
Out of stock

43

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

44

NUT(3KX)

90179-08639-00

—

$7.95

In stock

44

NUT(6L2)

95333-08600-00

—

$3.20

In stock

45

PIN, COTTER

91490-20025-00

—

$1.31

In stock

46

BOLT

90109-08184-00

1
Out of stock

47

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

48

. NUT

95380-08700-00

1

$3.07

In stock

49

50 DS DID 92L (94585-30092)

94580-10092-00

1
Out of stock

50

. JOINT CHAIN

94685-30011-00

1
Out of stock
