1973 Yamaha RD250 (RD250) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1973 Yamaha RD250 (RD250), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

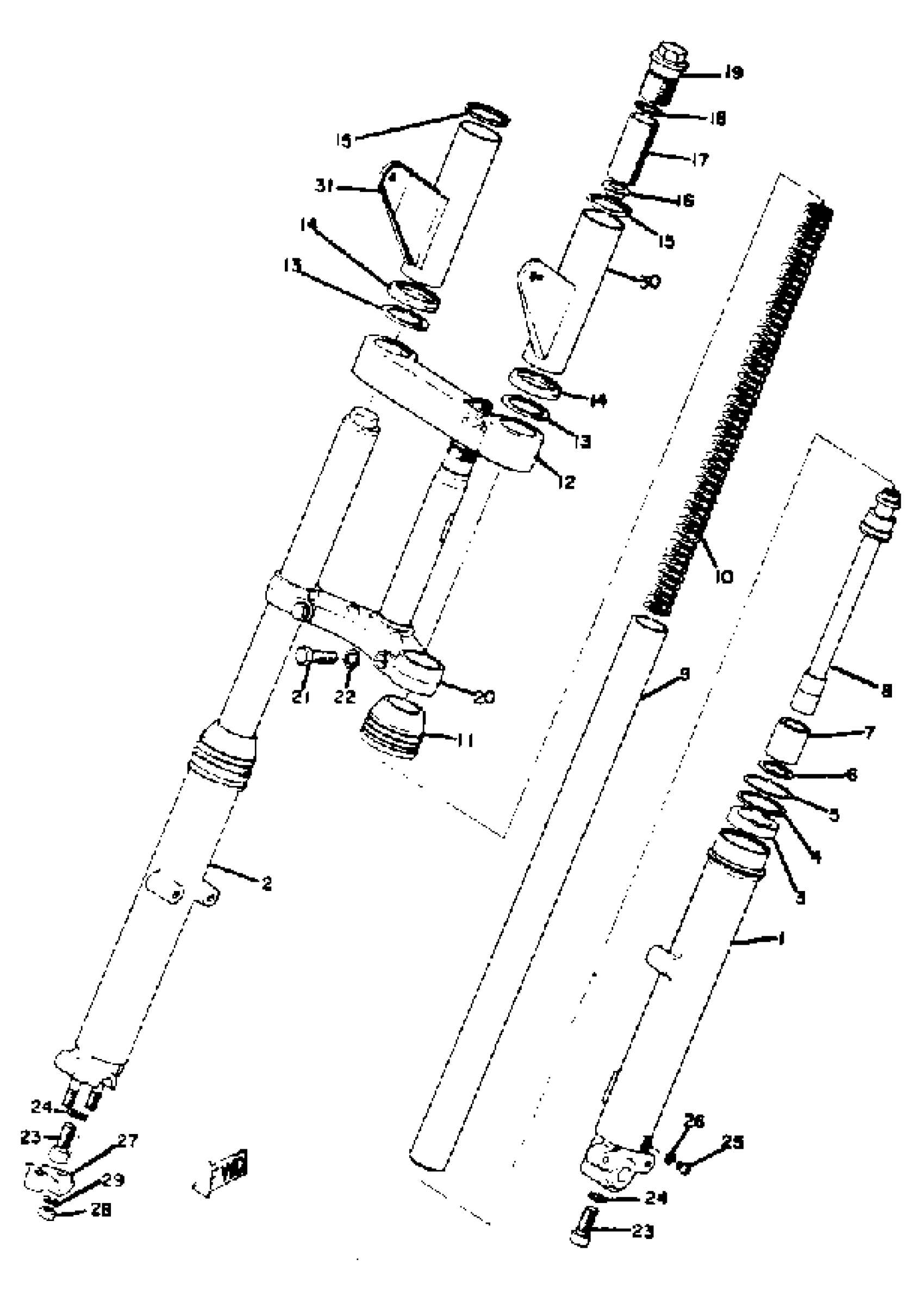

1973 Yamaha RD250 (RD250) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(361-23101-50-00)

1
Out of stock

1

TUBE, OUTER 1

(361-23126-50-00)

1
Out of stock

2

TUBE, OUTER 2

(361-23136-50-00)

1
Out of stock

3

OIL SEAL

584-23145-50-00

1

$52.72

In stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

7

PISTON, FRONT FORK

(278-23171-50-00)

1
Out of stock

8

CYLINDER, FRONT FORK

(278-23170-50-00)

1
Out of stock

9

. TUBE, INNER 1

(351-23124-50-00)

1
Out of stock

10

SPRING, FRONT FORK

(278-23141-50-00)

1
Out of stock

11

SEAL,DUST

278-23144-50-00

—

$31.64

In stock

12

COVER, OUTER 1

(361-23122-51-00)

1
Out of stock

13

. GASKET (LAMP STAY)

291-23163-61-00

1
Out of stock

14

. GUIDE, COVER LOWER

447-23116-52-00

1
Out of stock

15

GUIDE, COVER UPPER

(2R8-23115-00-00)

1
Out of stock

16

. SEAT, SPRING UPPER

278-23142-50-00

1
Out of stock

17

SPACER

(291-23118-60-00)

1
Out of stock

18

. GASKET

214-23114-00-00

1
Out of stock

19

BOLT, CAP

(291-23111-60-00)

1
Out of stock

20

UNDER BRACKET

(361-23340-50-33)

1
Out of stock

21

BOLT 1

(278-23346-50-00)

1
Out of stock

22

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

23

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

24

GASKET

509-23158-L0-00

—

$14.34

In stock

25

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

26

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

27

HOLDER, AXLE

(278-23167-50-00)

1
Out of stock

28

NUT(6L2)

95333-08600-00

—

$3.20

In stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

30

COVER, UPPER 1

(361-23121-50-F2)

1
Out of stock

30

COVER, UPPER 1

(361-23121-50-N3)

1
Out of stock

31

COVER, UPPER 2

(361-23131-50-F2)

1
Out of stock

31

COVER, UPPER 2

(361-23131-50-N3)

1
Out of stock
