1973 Yamaha RD250 (RD250) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1973 Yamaha RD250 (RD250), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

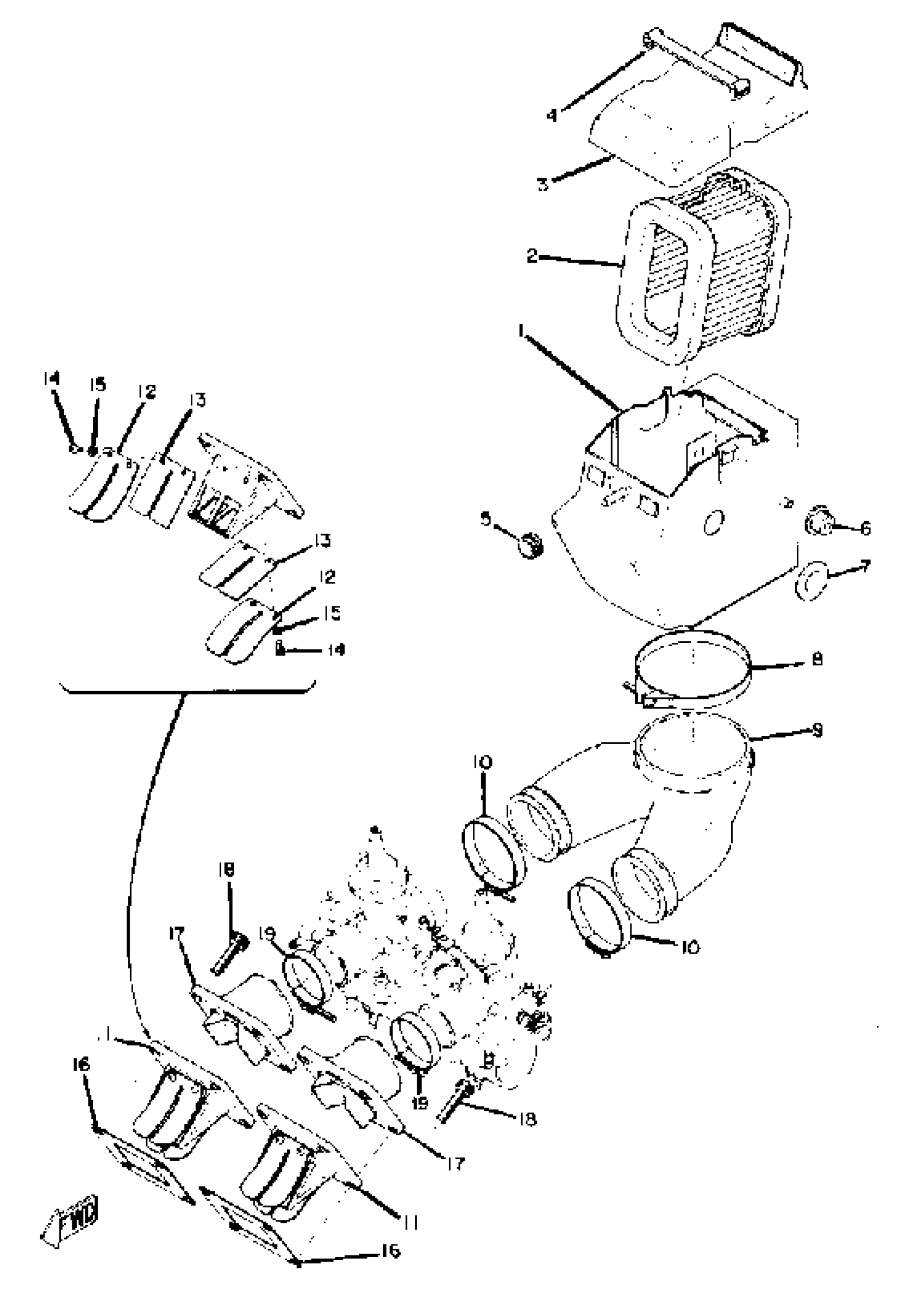

1973 Yamaha RD250 (RD250) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(360-14411-00-00)

1
Out of stock

2

ELEMENT, AIR CLNR

278-14451-00-00

1
Out of stock

2

ELEMENT, AIR CLNR

360-14451-90-00

1
Out of stock

3

CAP, CLEANER CASE 1

(278-14412-01-00)

1
Out of stock

4

HOLDER, GUIDE

278-14459-00-00

1
Out of stock

5

GROMMET 214217460000

90480-10091-00

1

$6.45

In stock

6

DAMPER 2

278-14426-00-00

1
Out of stock

7

GROMMET

(90480-19032-00)

1
Out of stock

8

CLAMP, HOSE

90460-77016-00

1
Out of stock

9

JOINT

360-14453-00-00

1

$46.72

In stock

10

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

11

REED VALVE ASSY

345-13610-20-00

1

$218.63

In stock

12

. STOPPER, REED VALVE

345-13616-70-00

1
Out of stock

13

REED, VALVE

345-13613-70-00

1

$62.56

In stock

14

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

15

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

16

GASKET, VALVE SEAT

87A-13621-00-00

—

$7.97

In stock

17

JOINT, CARBURETOR

345-13565-71-00

1
Out of stock

18

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock

19

CLAMP, HOSE (5H0)

90460-43179-00

—

$16.69

In stock
