1973 Yamaha RD250 (RD250) Clutch Diagram

← All diagrams

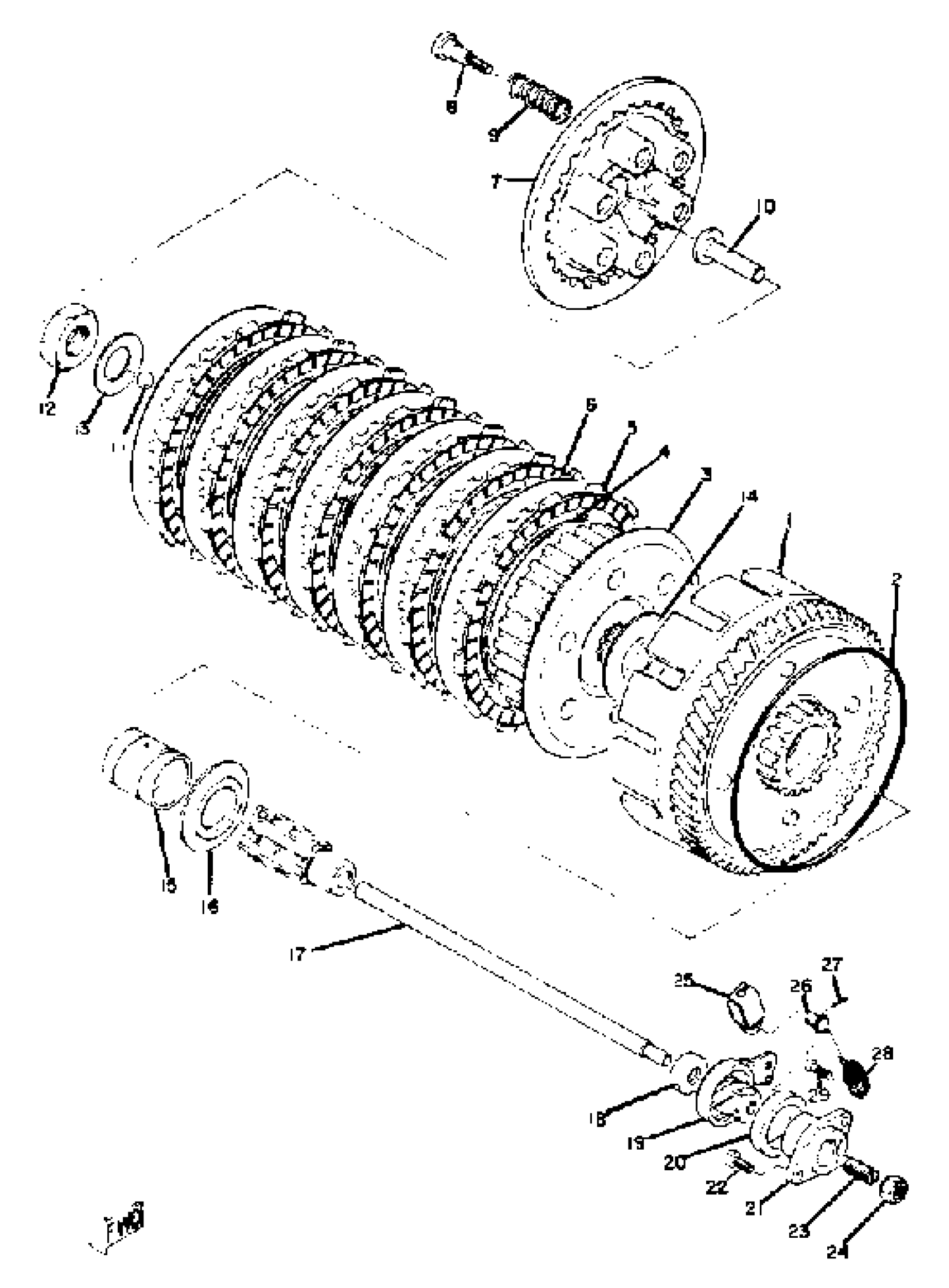

Find the part on the Clutch diagram for your 1973 Yamaha RD250 (RD250), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha RD250 (RD250) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(280-16150-01-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(361-16301-01-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(361-16301-01-00)

1
Out of stock

2

. O-RING

93211-15149-00

1
Out of stock

3

. CLUTCH BOSS ASSEMBLY 001

360-16370-00-00

1
Out of stock

4

RING, CUSHION

278-16367-00-00

1
Out of stock

5

PLATE, FRICTION

5Y1-16331-01-00

1

$25.90

In stock

6

PLATE, CLUTCH 2

360-16325-10-00

1
Out of stock

7

. PLATE, PRESSURE 1

214-16351-00-00

1
Out of stock

8

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

9

SPRING, COMPRESSION (400)

90501-20361-00

1

$10.92

In stock

10

ROD, PUSH

174-16356-00-00

1
Out of stock

11

BALL

93505-16006-00

1

$2.22

In stock

12

NUT

90170-18089-00

1
Out of stock

13

SPRING

214-16119-00-00

—
Out of stock

14

PLATE, THRUST (2)

170-16164-00-00

—
Out of stock

15

SPACER

278-16181-01-00

—
Out of stock

16

PLATE, THRUST 1

(278-16154-00-00)

1
Out of stock

16

PLATE, THRUST

360-16154-00-00

—
Out of stock

17

ROD, PUSH 2

237-16357-01-00

1
Out of stock

18

OIL SEAL(12E)

93109-08061-00

—

$5.68

In stock

19

PUSH LEVER ASSEMBLY

360-16340-00-00

1
Out of stock

20

SEAL, DUST

214-16347-01-00

1
Out of stock

21

HOUSING, PUSH SCREW

371-16396-00-00

1
Out of stock

22

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

23

BOLT SET 256163430100

90113-08021-00

—
Out of stock

24

NUT

90179-08179-00

—
Out of stock

25

JOINT

214-16389-00-00

—
Out of stock

26

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

27

. PIN, COTTER

91401-10015-00

1
Out of stock

28

—

$6.92

In stock

29

HOOK, SPRING

132-16346-00-00

—
Out of stock
