1973 Yamaha RD250 (RD250) Carburetor Diagram

← All diagrams

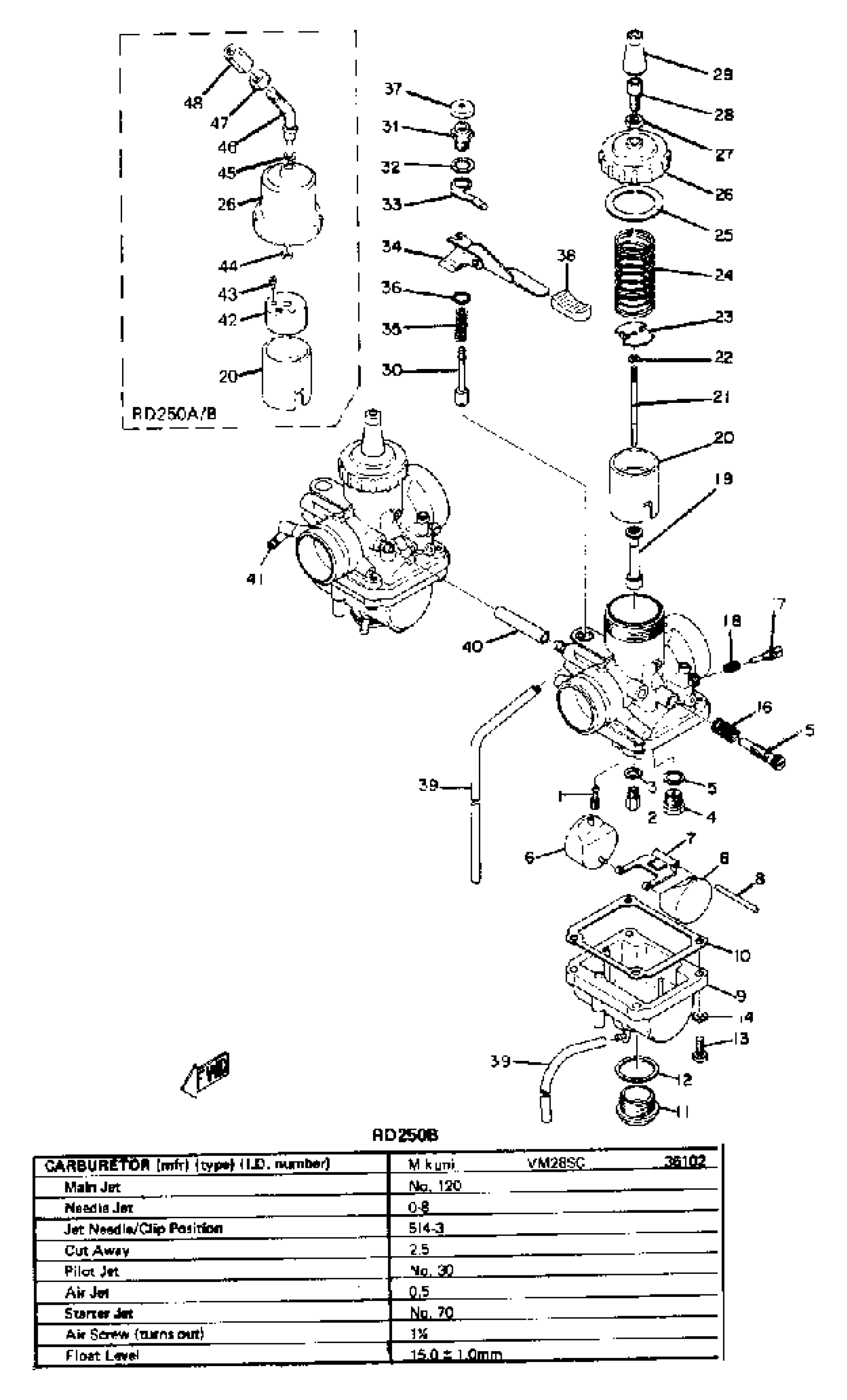

Find the part on the Carburetor diagram for your 1973 Yamaha RD250 (RD250), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha RD250 (RD250) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, PILOT (# 25)

193-14142-25-A0

1
Out of stock

1

JET, PIL0T (# 30)

193-14142-30-A0

—
Out of stock

1

VALVE, THROTTLE 2

(360-14113-25-00)

1
Out of stock

1

BODY, FLOAT CHMBR 2

(360-14183-00-33)

1
Out of stock

1

CARBURETOR ASSEMBLY 1 001

(361-14101-02-00)

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(361-14101-60-00)

1
Out of stock

1

VALVE, THROTTLE 2 000

(361-14113-25-00)

1
Out of stock

2

. JET, MAIN #85

137-14143-17-00

1
Out of stock

2

. JET, MAIN #90

137-14143-18-00

1
Out of stock

2

. JET, MAIN #95

137-14143-19-00

1
Out of stock

2

JET, MAIN #110

137-14143-22-A0

1
Out of stock

2

. JET, MAIN #120

137-14143-24-00

1
Out of stock

2

JET, MAIN #130

137-14143-26-A0

1
Out of stock

2

CARBURETOR ASSEMBLY 2 001

(361-14102-02-00)

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(361-14102-60-00)

1
Out of stock

3

WASHER,MAIN JET

137-14153-00-00

—
Out of stock

4

NEEDLE VALVE SET

23L-14107-25-00

—
Out of stock

5

WASHER, VALVE SEAT

214-14195-00-00

—

$6.11

In stock

6

. FLOAT

280-14185-00-00

1
Out of stock

7

. ARM, FLOAT

280-14187-00-00

1
Out of stock

8

PIN, FLOAT

127-14186-00-00

—

$6.23

In stock

9

. BODY, FLOAT CHMBR 1

(360-14181-00-33)

1
Out of stock

10

GASKET, FLOAT CHAMBER

360-14184-01-00

—

$31.99

In stock

11

. PLUG, SCREW

(278-14115-00-00)

1
Out of stock

12

WASHER,SCREW PLUG

278-14117-00-00

—

$7.80

In stock

13

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

15

THROTTLE SCREW SET

40T-14103-00-00

—

$15.58

In stock

16

SPRING, THROTTLE STOP

137-14133-00-00

—

$6.15

In stock

17

AIR SCREW SET

23X-14104-00-00

—

$8.52

In stock

18

SPRING, AIR ADJUSTING

127-14134-00-00

—

$6.37

In stock

19

. NOZZLE, MAIN

360-14141-38-00

1
Out of stock

20

. VALVE, THROTTLE 1

(360-14112-25-00)

1
Out of stock

20

. VALVE, THROTTLE 1 000

(361-14112-25-00)

1
Out of stock

21

. NEEDLE

360-14116-04-00

1
Out of stock

22

CLIP

3FA-14137-00-00

—

$6.80

In stock

23

. SEAT, SPRING

256-14936-00-00

1
Out of stock

23

. SEAT, SPRING 000

401-14136-00-00

1
Out of stock

24

. SPRING, THROTTLE VALVE

360-14131-00-00

1
Out of stock

25

GASKET

246-14126-00-00

—

$6.57

In stock

25

. O-RING

361-14147-00-00

1
Out of stock

26

. TOP, MIXING CHAMBER

(316-14158-00-33)

1
Out of stock

26

TOP, MIXING CHAMBER

(360-14158-00-33)

1
Out of stock

26

. TOP, MXXING CHAMBER

401-14158-00-00

1
Out of stock

27

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

28

. SCREW, CABLE ADJUSTING

360-14124-20-00

1
Out of stock

29

CAP

8A7-14169-00-00

—

$15.80

In stock

30

. PLUNGER, STARTER

278-14171-00-00

1
Out of stock

31

. CAP, PLUNGER

(278-14174-00-00)

1
Out of stock

32

WASHER, STARTER LVR

(132-14179-00-00)

1
Out of stock

33

. PLATE, STARTER LEVER

(170-14178-00-00)

1
Out of stock

33

. PLATE, STARTER LVR

(402-14178-00-00)

1
Out of stock

34

. LEVER, STARTER LH

360-14175-00-00

1
Out of stock

35

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

36

O-RING (248)

93220-09001-00

—

$3.98

In stock

37

. COVER, PLUNGER CAP

802-14173-00-00

1
Out of stock

38

. CAP

(360-14169-00-00)

1
Out of stock

39

PIPE 1

3XV-14348-20-00

—

$17.31

In stock

40

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

41

TOOL

UNA-VAILA-BL-EI

1
Out of stock

42

. PLATE, NEEDLE FTNG 000

(361-14946-00-00)

1
Out of stock

43

. SCREW, PN/HDW/WSHR 000

97602-03120-00

1
Out of stock

44

CLIP

363-14137-00-00

—

$9.95

In stock

45

GASKET

363-14198-00-00

—

$9.89

In stock

46

. GUIDE, CABLE

363-14155-00-00

1
Out of stock

47

NUT, WIRE ADJUSTING

127-14161-00-00

—

$7.20

In stock

48

. SCREW, CABLE ADJUSTING

(361-14124-00-00)

1
Out of stock
