1974 Yamaha RD200 (RD200A) Handle Wire Diagram

← All diagrams

Find the part on the Handle Wire diagram for your 1974 Yamaha RD200 (RD200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

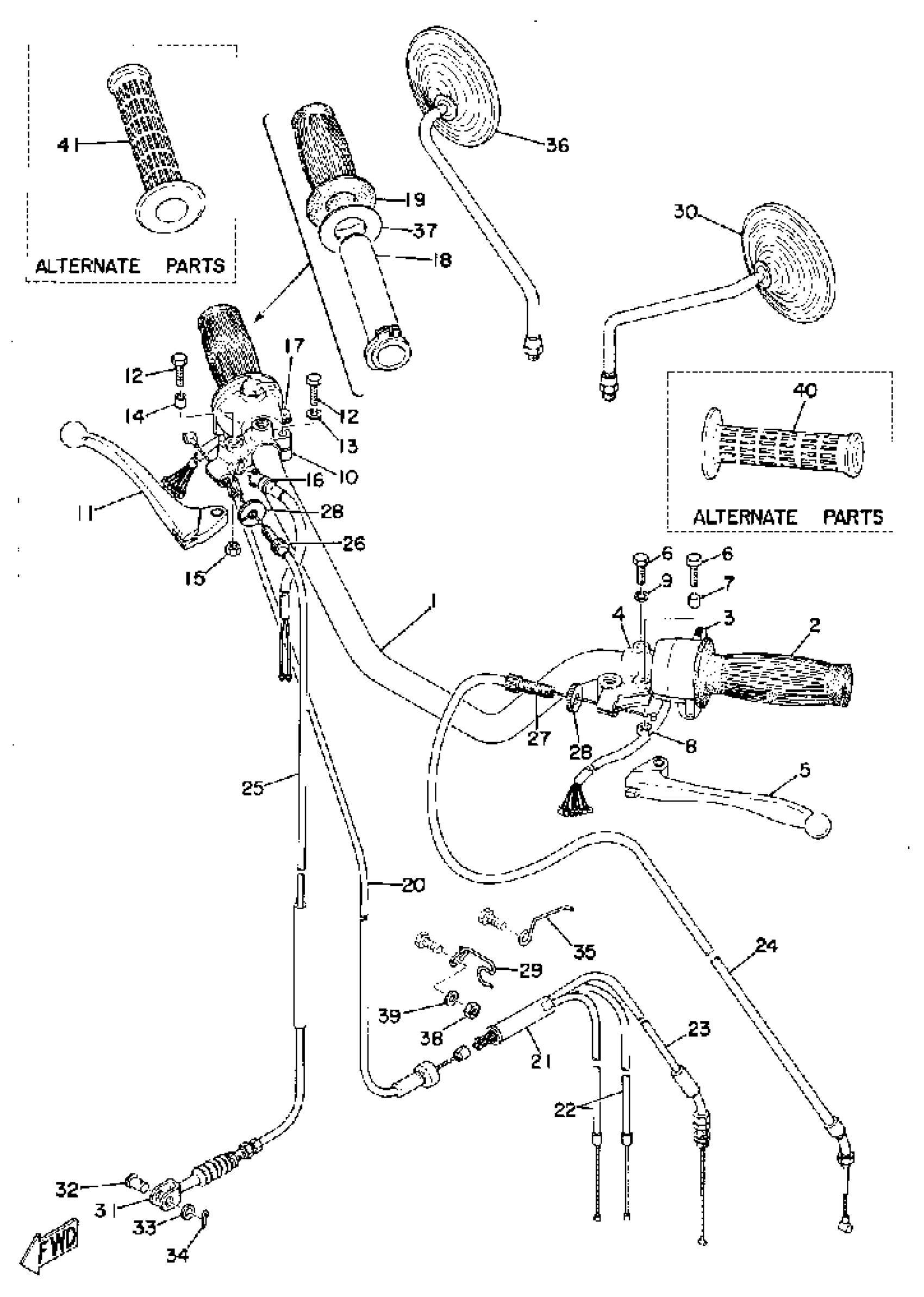

1974 Yamaha RD200 (RD200A) Handle Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

(337-26111-00-00)

1
Out of stock

1

LEVER HOLDER ASSEMBLY 1 (360-82910-00)

360-82910-02-00

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

3

SWITCH, HANDLE 3

(397-83973-10-00)

1
Out of stock

4

—

$24.57

In stock

5

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

6

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

7

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

8

NUT(650)

95380-06700-00

1

$6.17

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

11

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

12

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

15

NUT(650)

95380-06700-00

1

$6.17

In stock

16

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

17

SWITCH, HANDLE 3

(397-83963-11-00)

1
Out of stock

18

TUBE, GUIDE

214-26243-00-00

—

$39.75

In stock

19

GRIP RH

(306-26242-10-00)

1
Out of stock

20

CABLE, THROTTLE 1

(397-26311-60-00)

1
Out of stock

21

CONNECTOR, CABLE

360-26261-01-00

1
Out of stock

22

CABLE, THROTTLE 2

397-26312-01-00

1
Out of stock

23

CABLE, PUMP

397-26321-00-00

1
Out of stock

24

CABLE, CLUTCH

397-26335-00-00

1
Out of stock

25

CABLE, BRAKE

(397-26341-00-00)

1
Out of stock

26

BOLT

90123-08002-00

—

$8.93

In stock

27

BOLT

90123-08002-00

—

$8.93

In stock

28

NUT

90179-08030-00

—

$3.78

In stock

29

CLIP, CABLE

(397-26278-00-00)

1
Out of stock

30

MIRROR ASSEMBLY LH

341-26290-10-00

1
Out of stock

31

JOINT, WIRE

156-26347-00-00

—

$7.51

In stock

32

PIN W/HOLE 307181180000

90240-08013-00

—

$5.10

In stock

33

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

34

PIN, COTTER

91490-20025-00

—

$1.31

In stock

35

GUIDE, CABLE

(326-26328-00-00)

1
Out of stock

36

BACK MIRROR RH (341-26290-01)

341-26290-01-00

1
Out of stock

37

WASHER, PLATE(1UU)

90201-261L1-00

—
Out of stock

38

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

40

GRIP LH

341-26241-00-00

1
Out of stock

41

GRIP (R.H)

306-26242-10-00

—

$24.98

In stock
