1976 Yamaha RD125 (RD125C) Head Lamp Speedometer Diagram

← All diagrams

Find the part on the Head Lamp Speedometer diagram for your 1976 Yamaha RD125 (RD125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

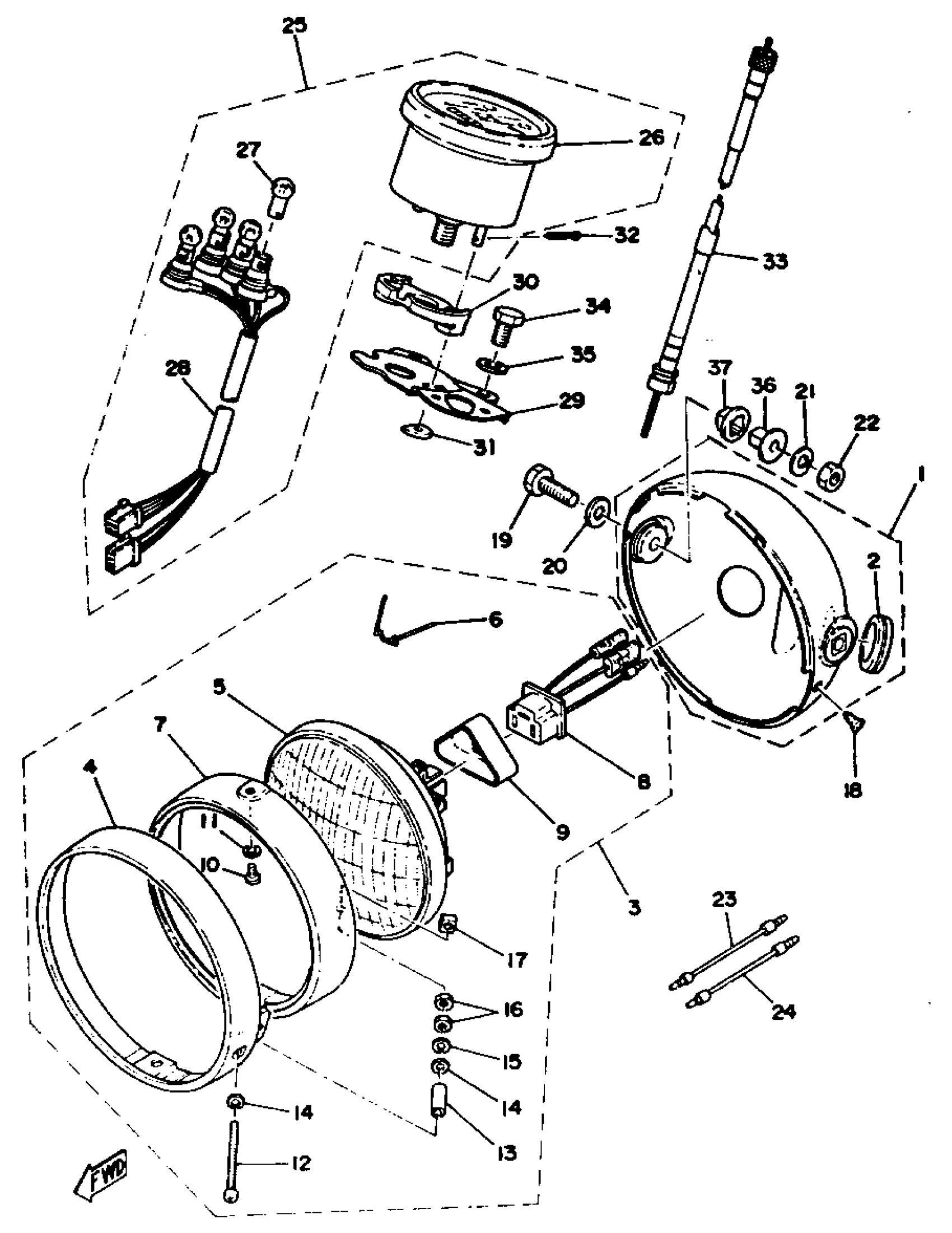

1976 Yamaha RD125 (RD125C) Head Lamp Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

(507-84330-60-33)

1
Out of stock

2

GROMMET (L)

150-84153-00-00

1

$17.41

In stock

3

TOOL

UNA-VAILA-BL-EI

1
Out of stock

4

. RIM, HEADLIGHT

498-84115-60-00

1
Out of stock

5

. LENS ASSEMBLY (507-84320-61)

507-84320-62-00

1
Out of stock

6

SPRING, SET

1UY-84124-00-00

1

$6.55

In stock

7

. RING, RETAINING

498-84195-60-00

1
Out of stock

8

SOCKET

371-84312-60-00

—

$26.52

In stock

9

. COVER, SOCKET

341-84397-61-00

1
Out of stock

10

. SCREW

438-84194-60-00

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

13

COLLAR, SCREW

438-84133-60-00

1
Out of stock

14

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

15

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

16

NUT(6TA)

95307-04600-00

—

$6.69

In stock

17

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

18

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

19

BOLT (682)

97013-08025-00

—

$6.80

In stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

NUT(6L2)

95333-08600-00

—

$3.20

In stock

23

WIRE, LEAD 1

(337-84348-00-00)

1
Out of stock

24

WIRE, LEAD 2

(337-84349-00-00)

1
Out of stock

25

SPEEDOMETER ASSEMBLY

(507-83510-70-00)

1
Out of stock

26

. DAMPER

336-83513-00-00

1
Out of stock

27

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

28

SOCKET CORD ASSEMBLY

(507-83520-70-00)

1
Out of stock

29

BRACKET, METER

(507-83519-00-33)

1
Out of stock

30

DAMPER

237-83523-00-00

—

$8.70

In stock

31

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

32

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

33

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

—

$36.69

In stock

34

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

35

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

36

COLLAR, BODY FTNG

(507-84338-60-00)

1
Out of stock

37

DAMPER, HDLT STAY

(214-84143-60-00)

1
Out of stock
