1976 Yamaha RD125 (RD125C) Handle Wire Diagram

← All diagrams

Find the part on the Handle Wire diagram for your 1976 Yamaha RD125 (RD125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

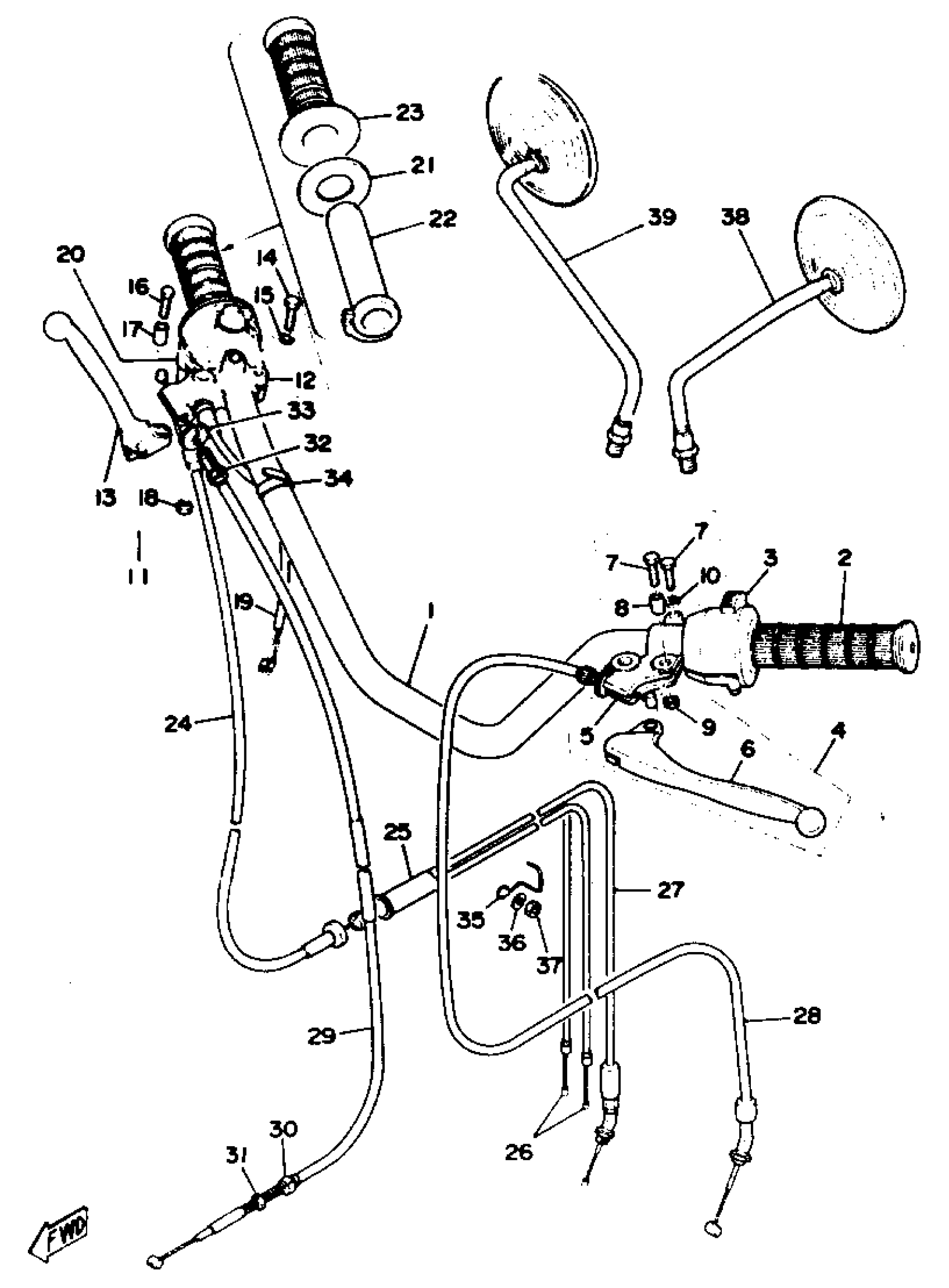

1976 Yamaha RD125 (RD125C) Handle Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

(337-26111-00-00)

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

3

SWITCH, HANDLE 3

360-83973-02-00

1
Out of stock

4

LEVER HOLDER ASSEMBLY 1 (360-82910-00)

360-82910-02-00

1
Out of stock

5

—

$24.57

In stock

6

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

7

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

8

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

9

NUT(650)

95380-06700-00

1

$6.17

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

12

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

13

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

14

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

17

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

18

NUT(650)

95380-06700-00

1

$6.17

In stock

19

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

20

SWITCH, HANDLE 1

(507-83976-00-00)

1
Out of stock

21

WASHER, PLATE(1UU)

90201-261L1-00

—
Out of stock

22

TUBE, GUIDE

214-26243-00-00

—

$39.75

In stock

23

GRIP (R.H)

306-26242-10-00

—

$24.98

In stock

24

CABLE, THROTTLE 1

507-26311-00-00

1
Out of stock

25

CONNECTOR, CABLE

360-26261-01-00

1
Out of stock

26

CABLE, THROTTLE 2

397-26312-01-00

1
Out of stock

27

CABLE, PUMP

(396-26321-00-00)

1
Out of stock

28

CABLE, CLUTCH

396-26335-10-00

1
Out of stock

29

CABLE, BRAKE

(396-26341-10-00)

1
Out of stock

30

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

31

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

32

BOLT

90123-08002-00

—

$8.93

In stock

33

NUT

90179-08030-00

—

$3.78

In stock

34

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

35

GUIDE, CABLE

(326-26328-00-00)

1
Out of stock

36

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

37

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

38

MIRROR ASSEMBLY LH

341-26290-10-00

1
Out of stock

39

BACK MIRROR RH (341-26290-01)

341-26290-01-00

1
Out of stock
