1975 Yamaha RD125 (RD125B) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1975 Yamaha RD125 (RD125B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

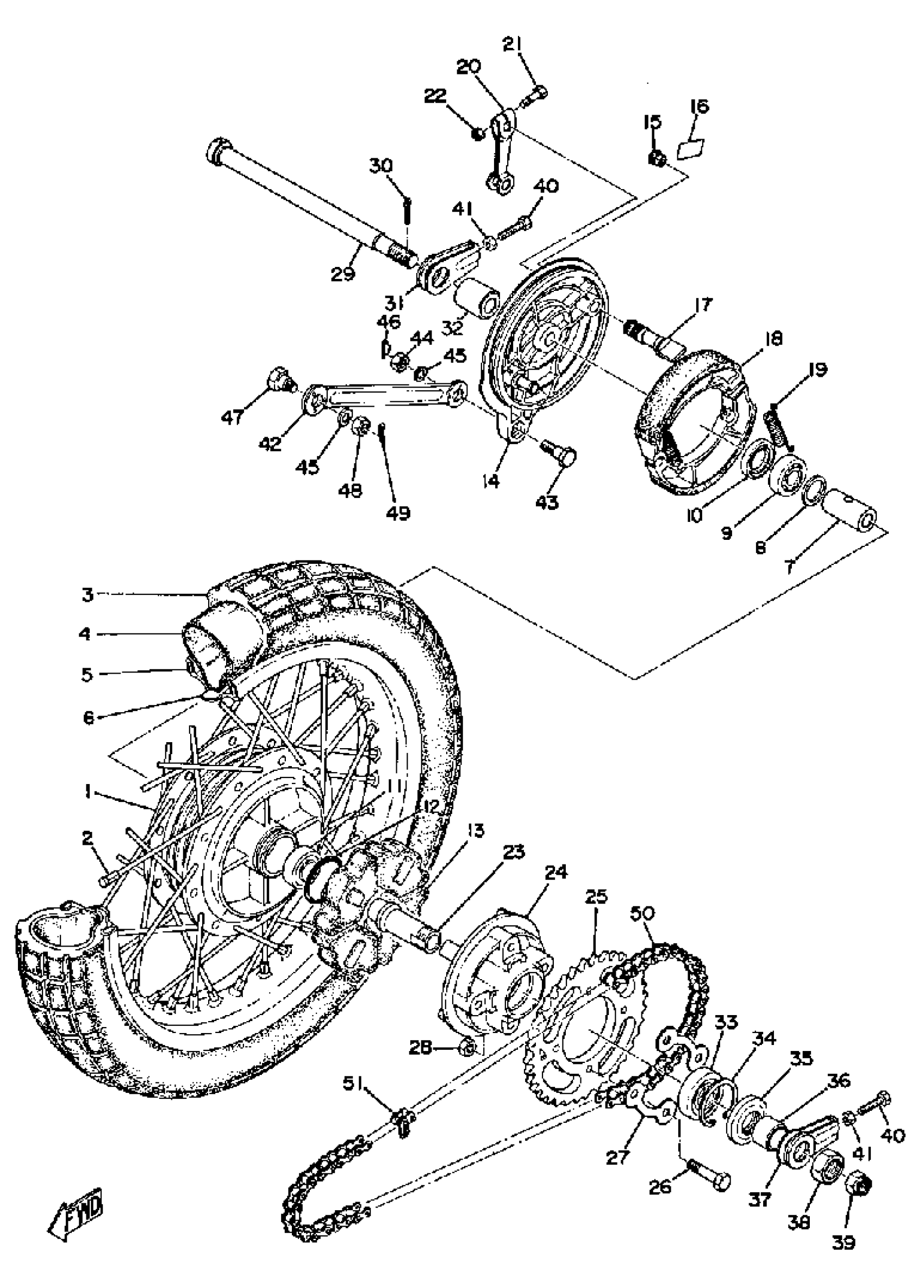

1975 Yamaha RD125 (RD125B) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

183-25311-00-00

1
Out of stock

2

SPOKE SET, REAR

183-25304-01-00

1
Out of stock

2

SPOKE SET, INNER 2

(183-25396-90-00)

1
Out of stock

2

SPOKE SET, OUTER 2

(183-25397-90-00)

1
Out of stock

3

300X18 YOKO Y93C

(94130-18310-00)

1
Out of stock

4

TUBE (5H5)

94227-18195-00

1
Out of stock

5

RIM 1.60X18

(94416-18018-00)

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1
Out of stock

7

SPACER 136253170000

90560-15136-00

—
Out of stock

8

FLANGE, SPACER

146-25116-00-00

1
Out of stock

9

BRG, R-B (7H4)

93306-20211-00

1
Out of stock

10

OIL SEAL (22X35X5)

93104-22018-00

1
Out of stock

11

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1
Out of stock

12

O-RING (183)

93210-42101-00

—
Out of stock

13

DAMPER, CLUTCH

304-25364-01-00

1
Out of stock

14

BRAKE SHOE PLT ASSEMBLY

(507-25320-10-00)

1
Out of stock

15

GROMMET (397)

90480-10068-00

—
Out of stock

16

LABEL, INDICATOR

(437-25134-00-00)

1
Out of stock

17

CAMSHAFT

(183-25351-00-00)

1
Out of stock

18

BRAKE SHOE SET-2PCS

437-W2536-00-00

1
Out of stock

19

SPRING (5T9)

90506-17328-00

—
Out of stock

20

LEVER, CAMSHAFT

(307-25355-00-00)

1
Out of stock

21

BOLT, HEXAGON

97017-06025-00

—
Out of stock

22

NUT, HEXAGON

95380-06600-00

1
Out of stock

23

SHAFT, SPROCKET

183-25387-00-00

—
Out of stock

24

CLUTCH, HUB

58K-25366-00-00

1
Out of stock

25

SPROCKET, DRVN 37T

183-25437-20-00

1
Out of stock

25

SPROCKET, DRIVN 38T

183-25438-10-33

1
Out of stock

25

SPROCKET, DRIVN 39T

183-25439-20-00

1
Out of stock

26

BOLT

90109-08507-00

1
Out of stock

27

WASHER

4AW-25412-00-00

—
Out of stock

28

NUT(6L2)

95333-08600-00

—
Out of stock

29

AXLE, WHEEL

382-25381-00-00

1
Out of stock

30

PIN, COTTER

91490-30030-00

—
Out of stock

31

PULLER, CHAIN

248-25388-00-00

—
Out of stock

32

COLLAR

90387-15425-00

1
Out of stock

33

BEARING(3BN)

93306-00438-00

—
Out of stock

34

CIRCLIP(5U8)

99009-42500-00

—
Out of stock

35

SEAL,OIL

93106-26005-00

—
Out of stock

36

COLLAR 183253860000

90387-20165-00

—
Out of stock

37

PULLER, CHAIN 1

214-25388-00-00

1
Out of stock

38

NUT, HEXAGON

90170-20167-00

—
Out of stock

39

NUT, CASTLE(2UJ)

90171-14056-00

—
Out of stock

40

BOLT

90101-08060-00

—
Out of stock

41

. NUT

95380-08700-00

1
Out of stock

42

BAR, TENSION

(307-25371-00-00)

1
Out of stock

43

BOLT 1092537300

90109-08063-00

—
Out of stock

44

. NUT

95380-08700-00

1
Out of stock

45

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

46

CLIP (156-83525-00)

90468-10050-00

—
Out of stock

47

BOLT

90109-08369-00

1
Out of stock

48

NUT(6L2)

95333-08600-00

—
Out of stock

49

PIN, COTTER

91490-20025-00

—
Out of stock

50

CHAIN

9Y582-51115-00

—
Out of stock

51

JOINT, CHAIN(3KX)

94681-64001-00

—
Out of stock
