1975 Yamaha RD125 (RD125B) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1975 Yamaha RD125 (RD125B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

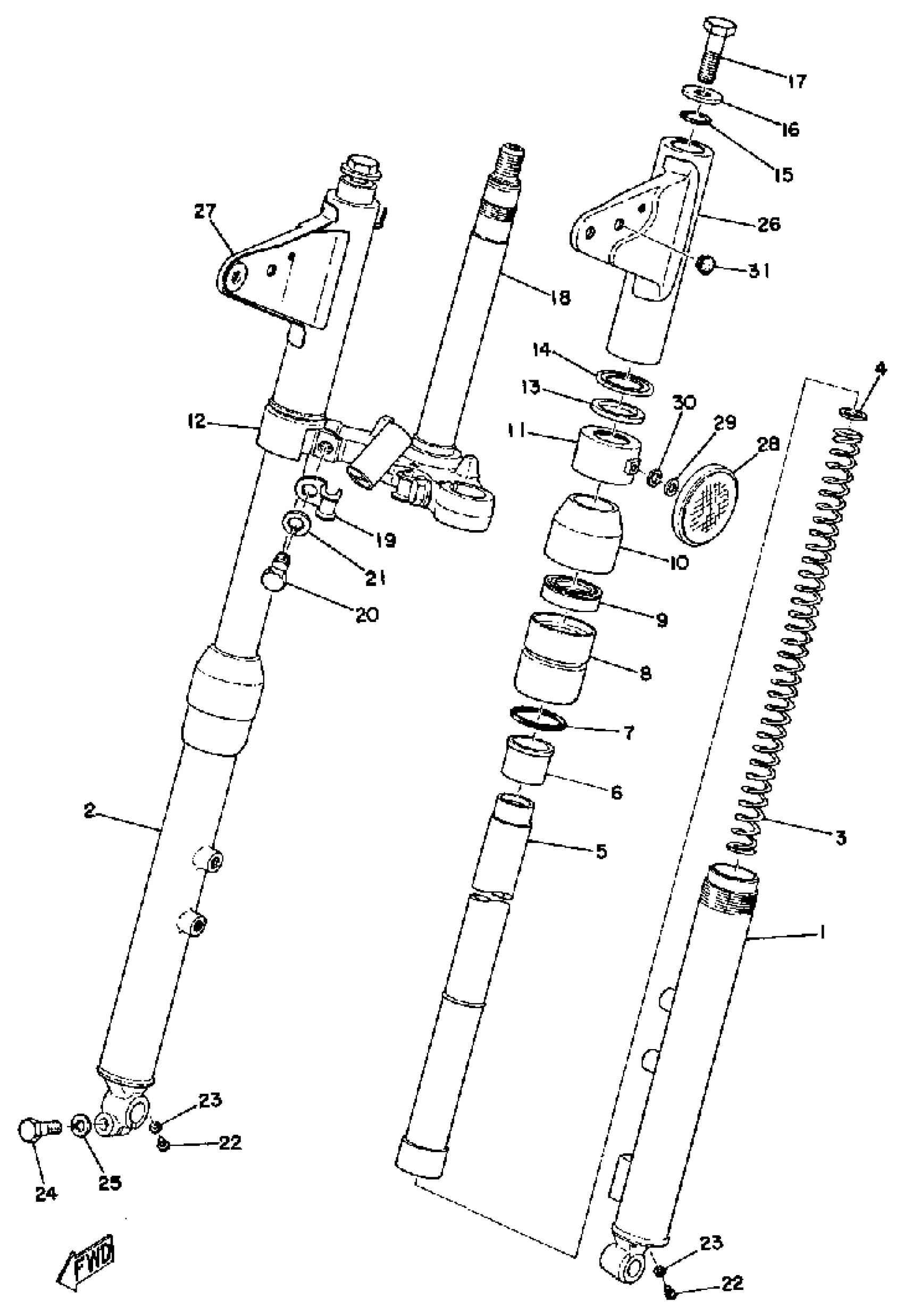

1975 Yamaha RD125 (RD125B) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(396-23101-00-00)

1
Out of stock

1

TUBE, OUTER 1

(396-23126-00-35)

1
Out of stock

2

TUBE, OUTER 2

(307-23136-00-35)

1
Out of stock

3

SPRING, FRONT FORK

(307-23141-00-00)

1
Out of stock

4

WASHER, SPRING UPR

(252-23149-00-00)

1
Out of stock

5

TUBE, INNER 1

(252-23124-00-00)

1
Out of stock

6

METAL, SLIDE 1

(164-23125-00-00)

1
Out of stock

7

O-RING

(164-23147-00-00)

1
Out of stock

8

OUTER NUT

(307-23150-01-00)

1
Out of stock

9

. OIL SEAL

164-23145-01-00

1
Out of stock

10

SEAL, DUST

(252-23144-00-00)

1
Out of stock

11

COVER, OUTER 1

(307-23122-00-93)

1
Out of stock

12

COVER, OUTER 2

(307-23132-00-93)

1
Out of stock

13

PACKING(LAMP STAY)

164-23163-00-00

1

$6.46

In stock

14

GUIDE, COVER LOWER

(252-23116-00-00)

1
Out of stock

15

GASKET

307-23114-00-00

—
Out of stock

16

WASHER, CAP

(183-23112-00-00)

1
Out of stock

17

BOLT, CAP

(307-23111-00-00)

1
Out of stock

18

UNDER BRACKET

(307-23340-00-33)

1
Out of stock

19

HOLDER, CABLE 1

(183-23318-00-00)

1
Out of stock

20

BOLT 1

122-23346-02-00

—

$6.25

In stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

22

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

23

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

24

BOLT, WITH WASHER

(90119-08010-00)

1
Out of stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

COVER, UPPER 1

(507-23121-00-A9)

1
Out of stock

27

COVER, UPPER 2

(507-23131-00-A9)

1
Out of stock

28

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

29

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

30

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

31

PLUG, SPEC''L SHAPE

(90338-09060-00)

1
Out of stock
