1975 Yamaha RD125 (RD125B) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1975 Yamaha RD125 (RD125B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

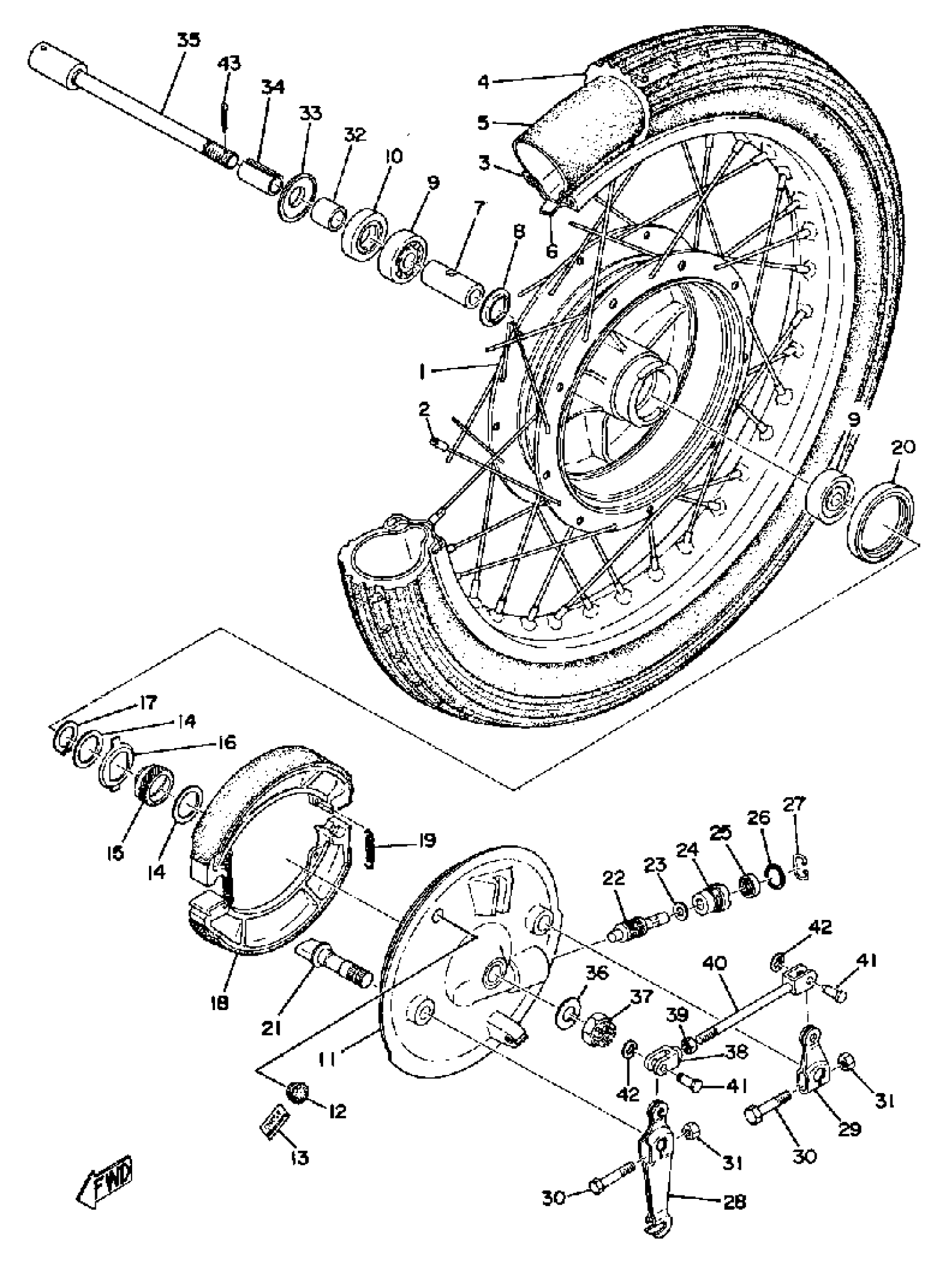

1975 Yamaha RD125 (RD125B) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(307-25111-00-00)

1
Out of stock

2

SPOKE SET, FRONT

(307-25104-00-00)

1
Out of stock

3

RIM 1.40X18

(94414-18095-00)

1
Out of stock

4

275X18 YOKO Y506

(94127-18309-00)

1
Out of stock

5

TUBE

(94227-18010-00)

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER

90560-12138-00

—

$12.83

In stock

8

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

9

BEARING

93306-30102-00

1
Out of stock

10

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

11

BRAKE SHOE PLT ASSEMBLY

(507-25120-10-00)

1
Out of stock

12

GROMMET (397)

90480-10068-00

1

$6.77

In stock

13

LABEL, INDICATOR

(437-25134-00-00)

1
Out of stock

14

WASHER, PLATE 1832514700

90201-20269-00

1
Out of stock

15

GEAR, DRIVE

(307-25135-00-00)

1
Out of stock

16

CLUTCH, METER

183-25149-00-00

—
Out of stock

17

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

18

BRAKE SHOE SET

21L-W2535-00-00

1
Out of stock

19

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

20

SEAL,OIL

93105-47007-00

—
Out of stock

21

CAMSHAFT

(183-25351-00-00)

1
Out of stock

22

GEAR, METER

(307-25138-00-00)

1
Out of stock

23

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

24

BUSHING

109-25136-00-00

—

$8.78

In stock

25

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

26

O-RING (26H)

93210-14579-00

—

$5.69

In stock

27

RING, STOP

102-25137-00-00

—
Out of stock

28

LEVER, CAMSHAFT 1

(307-25155-00-00)

1
Out of stock

29

LEVER, CAMSHAFT 2

(307-25156-00-00)

1
Out of stock

30

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

31

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

32

COLLAR 1832518300

90387-12095-00

—

$4.63

In stock

33

COVER, HUB DUST

2K5-25118-00-00

—
Out of stock

34

COLLAR

90387-12099-00

1
Out of stock

35

AXLE, WHEEL

(382-25181-01-00)

1
Out of stock

36

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

37

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock

38

END, ROD 1

152-25163-00-00

1
Out of stock

39

NUT(650)

95380-06700-00

—

$6.17

In stock

40

ROD, CONNECTING

(307-25161-00-00)

1
Out of stock

41

PIN, SPEC'L SHAPE

90249-06095-00

1
Out of stock

42

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

43

PIN, COTTER

91490-30030-00

—

$7.15

In stock
