1975 Yamaha RD125 (RD125B) Head Lamp Speedometer Diagram

← All diagrams

Find the part on the Head Lamp Speedometer diagram for your 1975 Yamaha RD125 (RD125B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

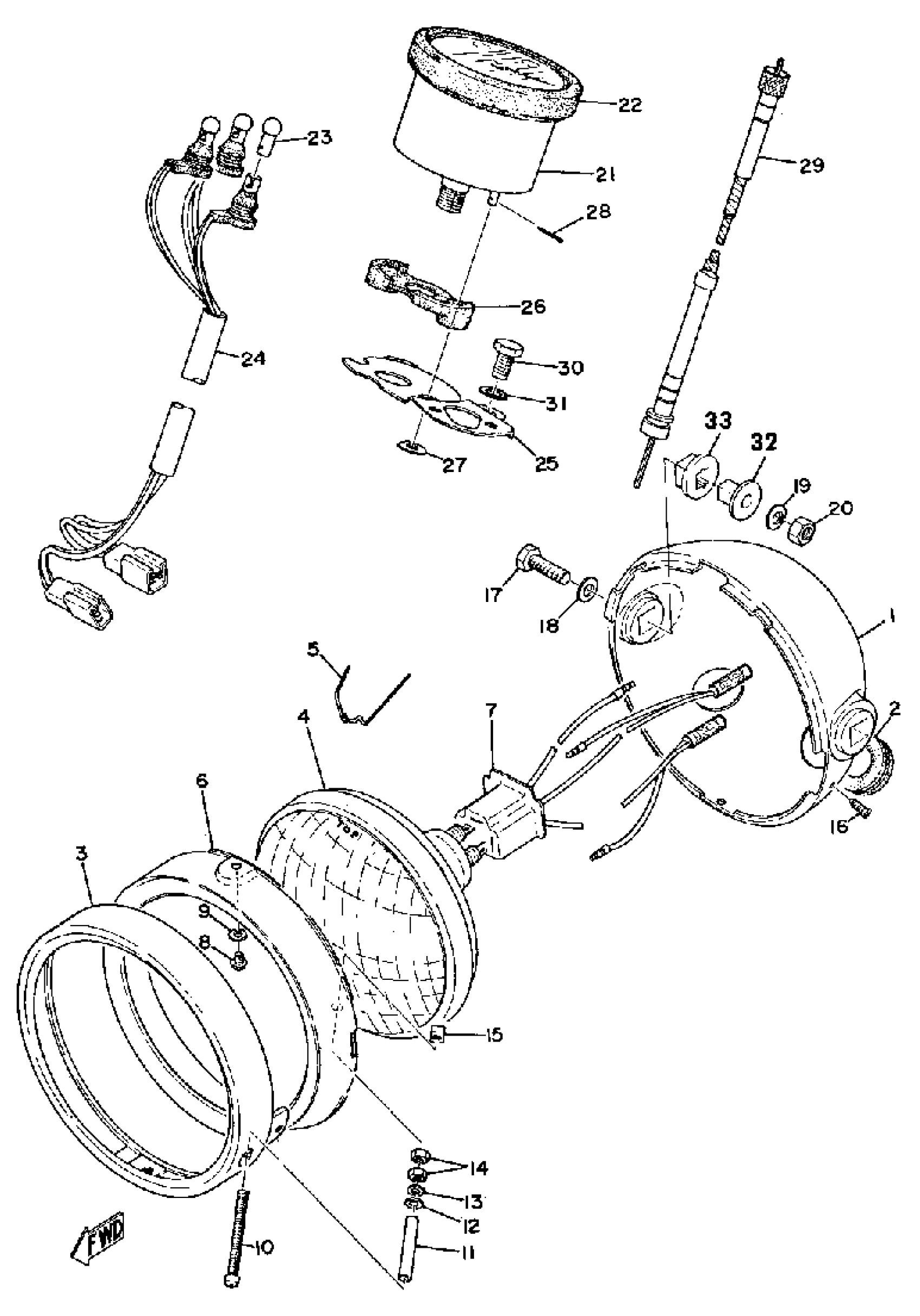

1975 Yamaha RD125 (RD125B) Head Lamp Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

(507-84330-60-A9)

1
Out of stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

GROMMET (L)

150-84153-00-00

1

$17.41

In stock

3

. RIM, HEADLIGHT

498-84115-60-00

1
Out of stock

4

. LENS ASSEMBLY (507-84320-61)

507-84320-62-00

1
Out of stock

5

SPRING, SET

1UY-84124-00-00

1

$6.55

In stock

6

. RING, RETAINING

498-84195-60-00

1
Out of stock

7

SOCKET

246-84312-60-00

1
Out of stock

8

. SCREW

438-84194-60-00

1
Out of stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

11

COLLAR, SCREW

438-84133-60-00

1
Out of stock

12

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

NUT(6TA)

95307-04600-00

1

$6.69

In stock

15

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

16

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

17

BOLT (682)

97013-08025-00

—

$6.80

In stock

18

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

NUT(6L2)

95333-08600-00

—

$3.20

In stock

21

SPEEDOMETER ASSEMBLY

(507-83510-70-00)

1
Out of stock

22

. DAMPER

336-83513-00-00

1
Out of stock

23

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

24

SOCKET CORD ASSEMBLY

(507-83520-70-00)

1
Out of stock

25

BRACKET, METER

(507-83519-00-33)

1
Out of stock

26

DAMPER

237-83523-00-00

—

$8.70

In stock

27

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

28

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

29

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

—

$36.69

In stock

30

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

31

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

32

COLLAR, BODY FTNG

(507-84338-60-00)

1
Out of stock

33

DAMPER, HDLT STAY

(214-84143-60-00)

1
Out of stock
