1996 Yamaha Wave Raider 700 (RA700BU) Generator Diagram

← All diagrams

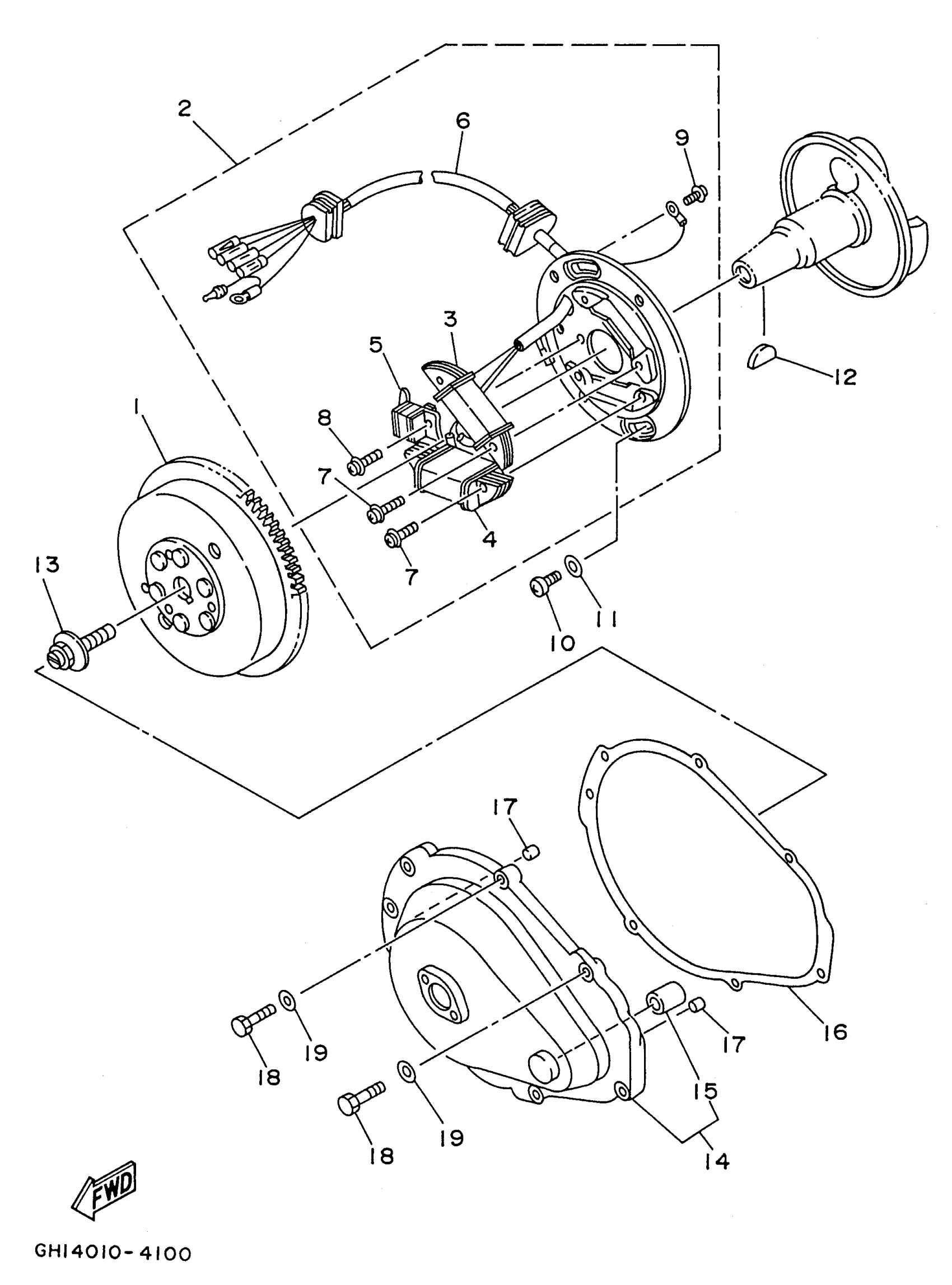

Find the part on the Generator diagram for your 1996 Yamaha Wave Raider 700 (RA700BU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Wave Raider 700 (RA700BU) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

62T-85550-01-00

1
Out of stock

2

BASE ASSY

6R8-85560-11-00

1
Out of stock

3

COIL, CHARGE

62T-85520-01-00

1
Out of stock

4

. COIL, LIGHTING

62T-85533-00-00

1
Out of stock

5

. COIL, PULSER

6M6-85580-00-00

1
Out of stock

6

LEAD WIRE ASY

6R8-85515-10-00

1
Out of stock

7

. SCREW, WITH WASHER

97902-05125-00

1
Out of stock

8

. SCREW, WITH WASHER

97902-04122-00

1
Out of stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1
Out of stock

10

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

12

KEY, WOODRUFF

90280-05001-00

1
Out of stock

13

BOLT

90109-10M47-00

1
Out of stock

14

COVER, FLYWHEEL

6R8-81337-00-8S

1
Out of stock

15

. BUSH, SOLID

90380-12M29-00

1
Out of stock

16

. GASKET, HOLE COVER

6M6-81365-A0-00

1
Out of stock

17

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

18

BOLT

90101-06M27-00

1
Out of stock

19

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock
