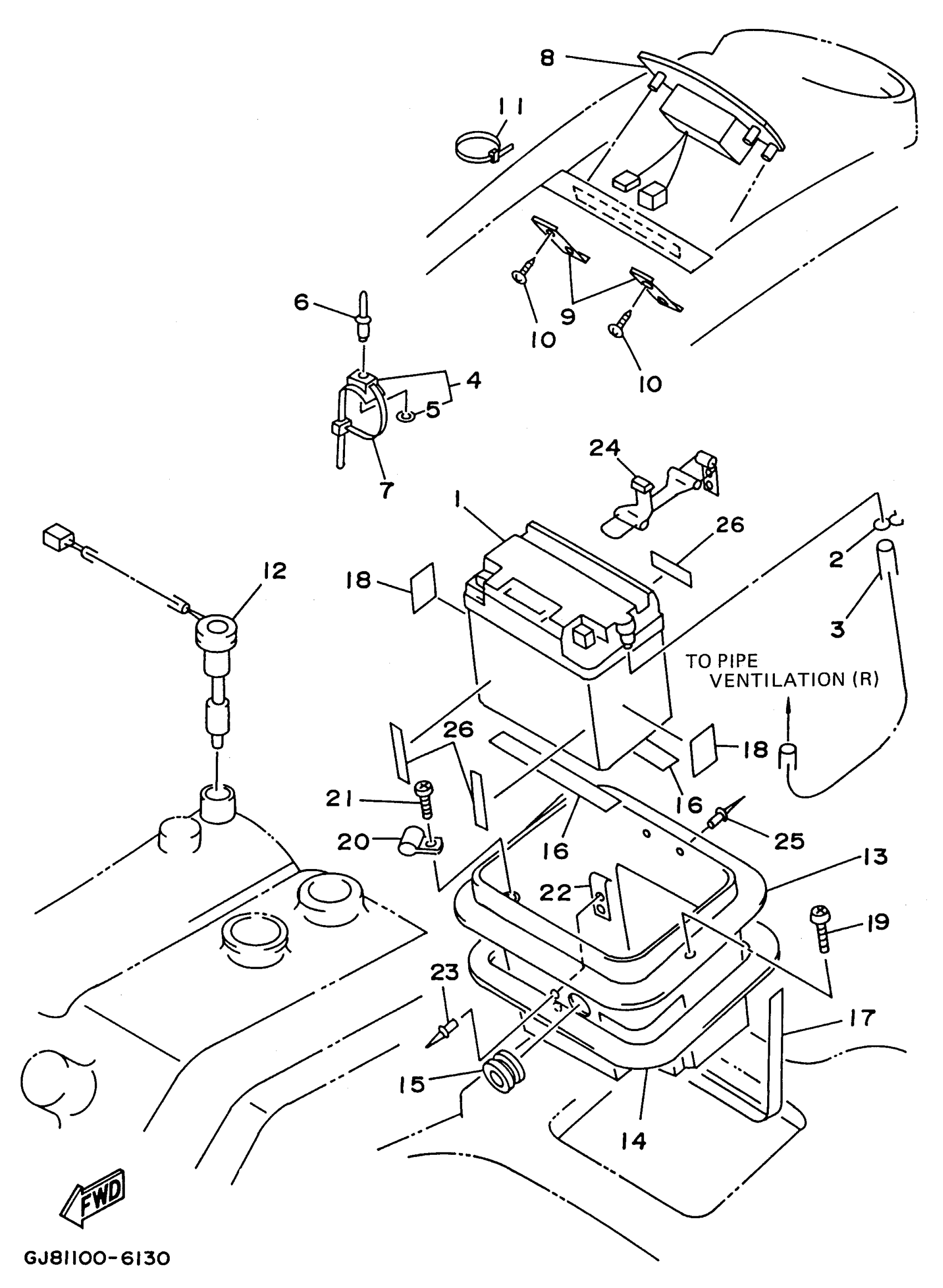

Yamaha RA700BU (WAVE RAIDER 700) 1996 ELECTRICAL 2 Diagram

#

Description
Price

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

2

CLIP

90467-08M10-00

Unavailable

3

HOSE, AIRVENT 3

GE1-U7856-30-00

Unavailable

4

CLAMP COMP (EU0)

90600-91736-00

$6.22

5

. WASHER, PLAIN

90201-05925-00

Unavailable

6

RIVET, BLIND

90267-48802-00

$1.98

7

BAND (EU0)

90601-20009-00

$6.36

8

METER, ASSEMBLY

GJ8-6820A-00-00

Unavailable

9

BRACKET, METER

GJ8-68238-00-00

$16.99

10

SCREW, TAPPING

97780-50620-00

$2.75

11

BAND (EU0)

90601-20009-00

$6.36

12

SENDER,OIL

GJ8-6824C-01-00

$183.32

13

BATTERY CASE COMP.

GH6-U8211-00-00

Unavailable

14

PACKING 3

GJ1-6266B-00-00

Unavailable

15

GR0MMET

GH6-6822E-00-00

Unavailable

16

PAD, BATTERY 1

FJ0-68221-00-00

Unavailable

17

PAD, BATTERY 2

FJ0-68221-30-00

Unavailable

18

PAD, BATTERY

GJ1-U8221-00-00

Unavailable

19

SCREW

90149-05984-00

$2.73

20

CLAMP

90600-913U2-00

Unavailable

21

SCREW, TAPPING

97780-40116-00

$3.57

22

HOOK A

GA7-65772-00-00

$9.08

23

RIVET, BLIND

90267-489U7-00

Unavailable

24

HOOK COMP

GJ1-66607-00-00

Unavailable

25

RIVET, BLIND

90267-489U7-00

Unavailable

26

MAT 3

EU0-67593-40-00

Unavailable
