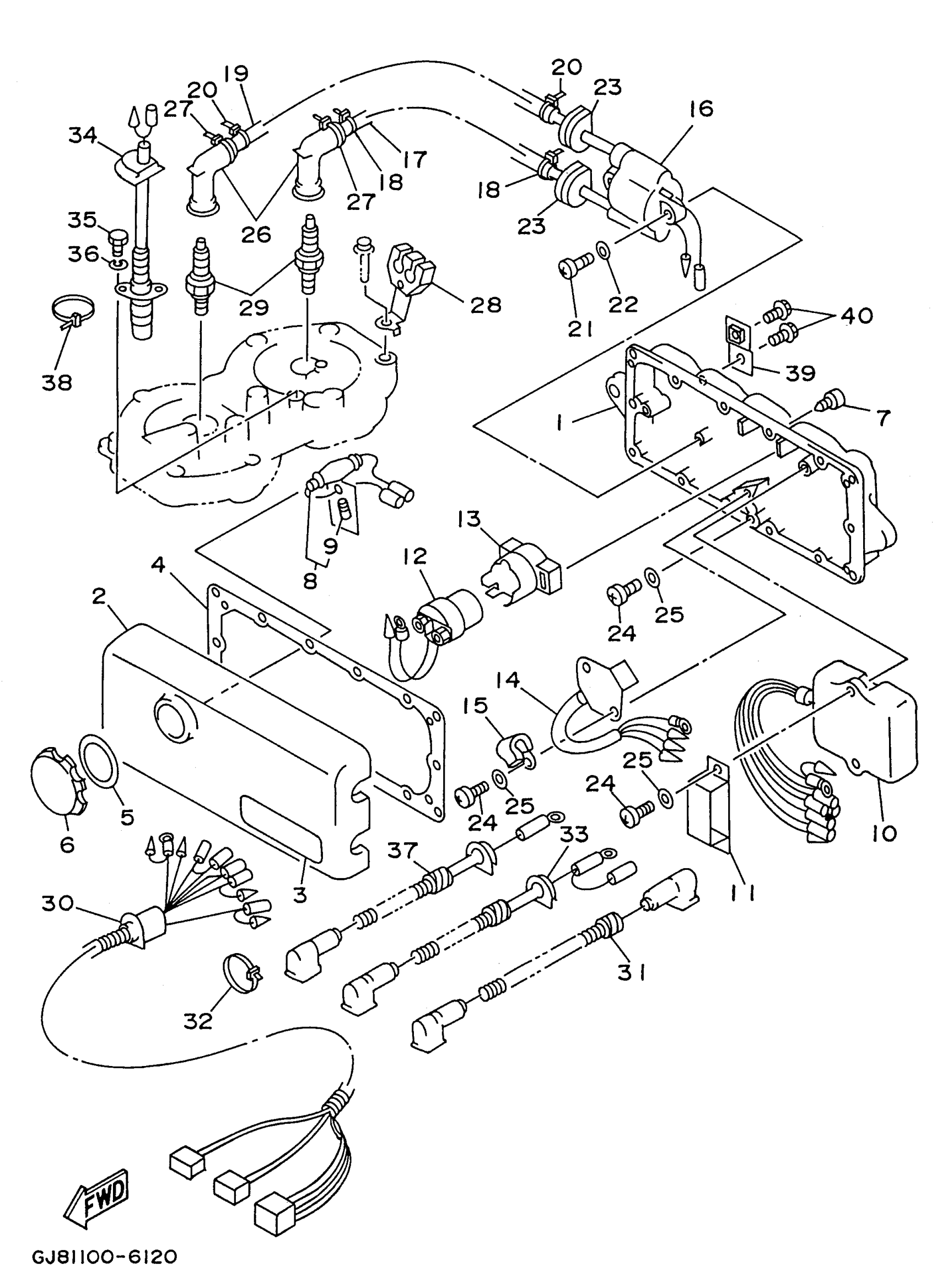

Yamaha RA700BU (WAVE RAIDER 700) 1996 ELECTRICAL 1 Diagram

#

Description
Price

1

HOUSING

62L-8552A-00-8P

$162.11

2

COVER, CASE

6M6-8552E-01-00

$78.77

3

MARK 3

6R7-83623-40-00

$7.27

4

GASKET, TERMINAL

6M6-81921-00-00

$19.63

5

GASKET

6M6-81844-00-00

$10.99

6

CAP

6M6-8132W-00-00

$14.38

7

SCREW, TAPPING(65J)

97780-60625-00

$2.64

8

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

9

FUSE (10A)

1E6-82151-00-00

$5.80

10

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

11

CLAMP

90464-06M29-00

$6.36

12

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

13

HOLDER, RELAY

6M6-81952-01-00

Unavailable

14

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

$112.11

15

CLAMP

90465-08028-00

$4.31

16

IGNITION COIL ASSY

62E-85570-00-00

$152.35

17

TUBE, CORD 2

6R8-82352-00-00

Unavailable

18

CLAMP

90465-10098-00

$1.68

19

TUBE, CORD 2

6R8-82352-00-00

Unavailable

20

CLAMP

90465-10098-00

$1.68

21

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

GROMMET

90480-06M43-00

$6.82

24

SCREW, PAN HEAD

98580-06016-00

$2.88

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

PLUG CAP ASSEMBLY

6K8-82370-00-00

Unavailable

27

CLAMP

90465-10098-00

$1.68

28

CLAMP, CORD

6R8-82361-00-00

Unavailable

29

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

30

EXTENSION, WIRE LEAD

62T-82553-01-00

Unavailable

31

WIRE,LEAD

62T-82117-01-00

Unavailable

32

CLAMP (6E5)

90465-13M11-00

Unavailable

33

WIRE, LEAD

62T-82117-11-00

Unavailable

34

THERMO SWITCH ASSY

6R7-82560-00-00

Unavailable

35

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

36

WASHER, SPRING

92995-06100-00

$2.95

37

WIRE, LEAD

6M6-82117-21-00

Unavailable

38

CLAMP (6E5)

90465-13M11-00

Unavailable

39

BRACKET, ELECTRIC BOX

GH6-6815D-00-00

Unavailable

40

BOLT, WITH WASHER

90119-08800-00

$4.09
