2003 Can-Am Quest 650 Exhaust System Diagram

← All diagrams

Find the part on the Exhaust System diagram for your 2003 Can-Am Quest 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

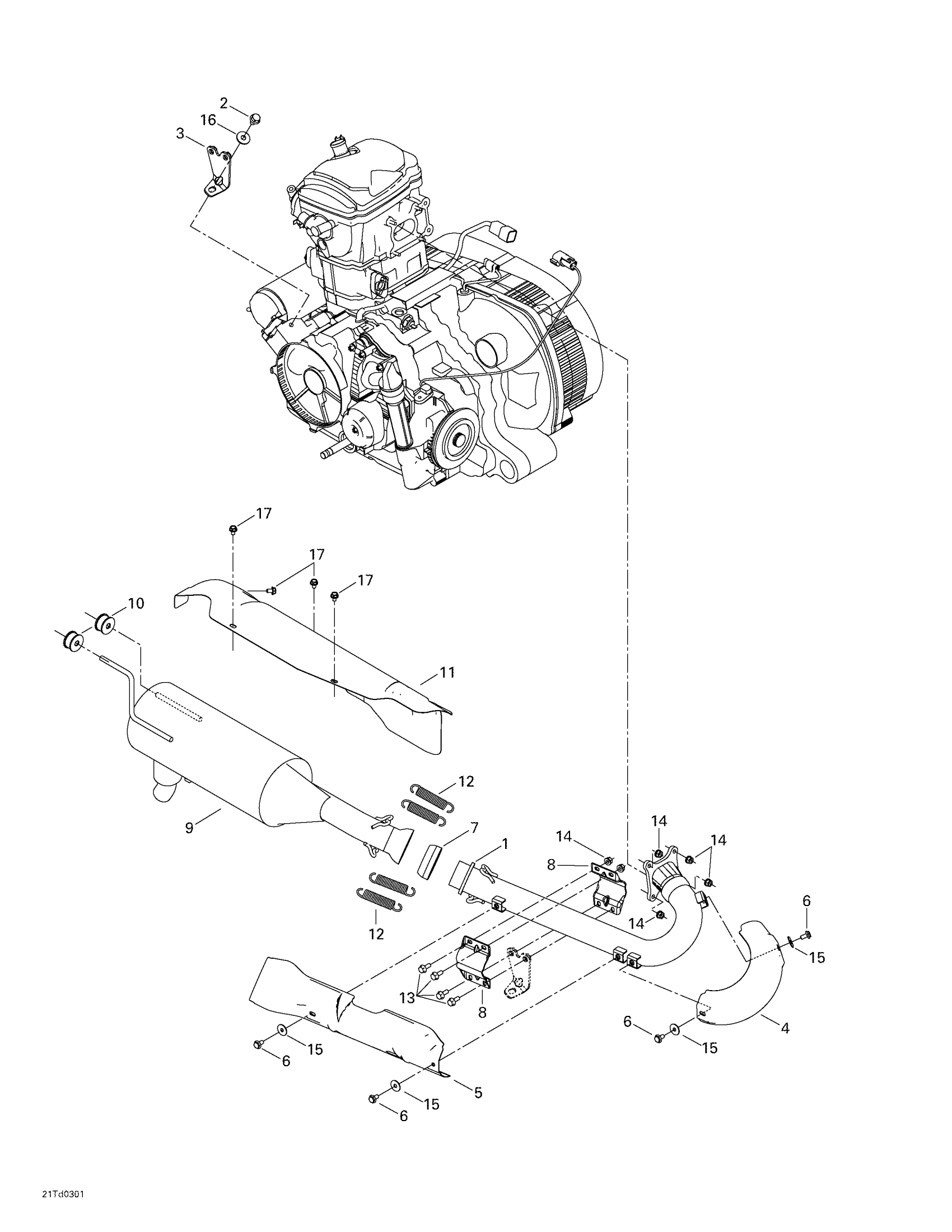

2003 Can-Am Quest 650 Exhaust System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUNED PIPE - Call your local BRP dealership

707600084

—
Out of stock

2

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

1
Out of stock

3

Exhaust Support

707600131

—
Out of stock

4

Heat Shield Black

707600167

—
Out of stock

5

Heat Shield Black

707600168

—
Out of stock

6

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

—
Out of stock

7

Pipe Gasket

707600164

—
Out of stock

8

Exhaust Clamp

707600165

—
Out of stock

9

Muffler

707600225

—
Out of stock

10

Anti-Vibration Rubber

707600702

2
Out of stock

11

Heat Shield

707600076

—
Out of stock

12

SPRING - Call your local BRP dealership

707600177

—
Out of stock

13

Hex. Flange Screw M6 X 16

207661646

4
Out of stock

14

Hex. Flange Nut M6

233061414

6
Out of stock

15

Flat Washer

224060201

4
Out of stock

16

Flat Washer 8 mm

234082410

1
Out of stock

17

Hex. Forming Screw M6 X 10

210261050

4
Out of stock
