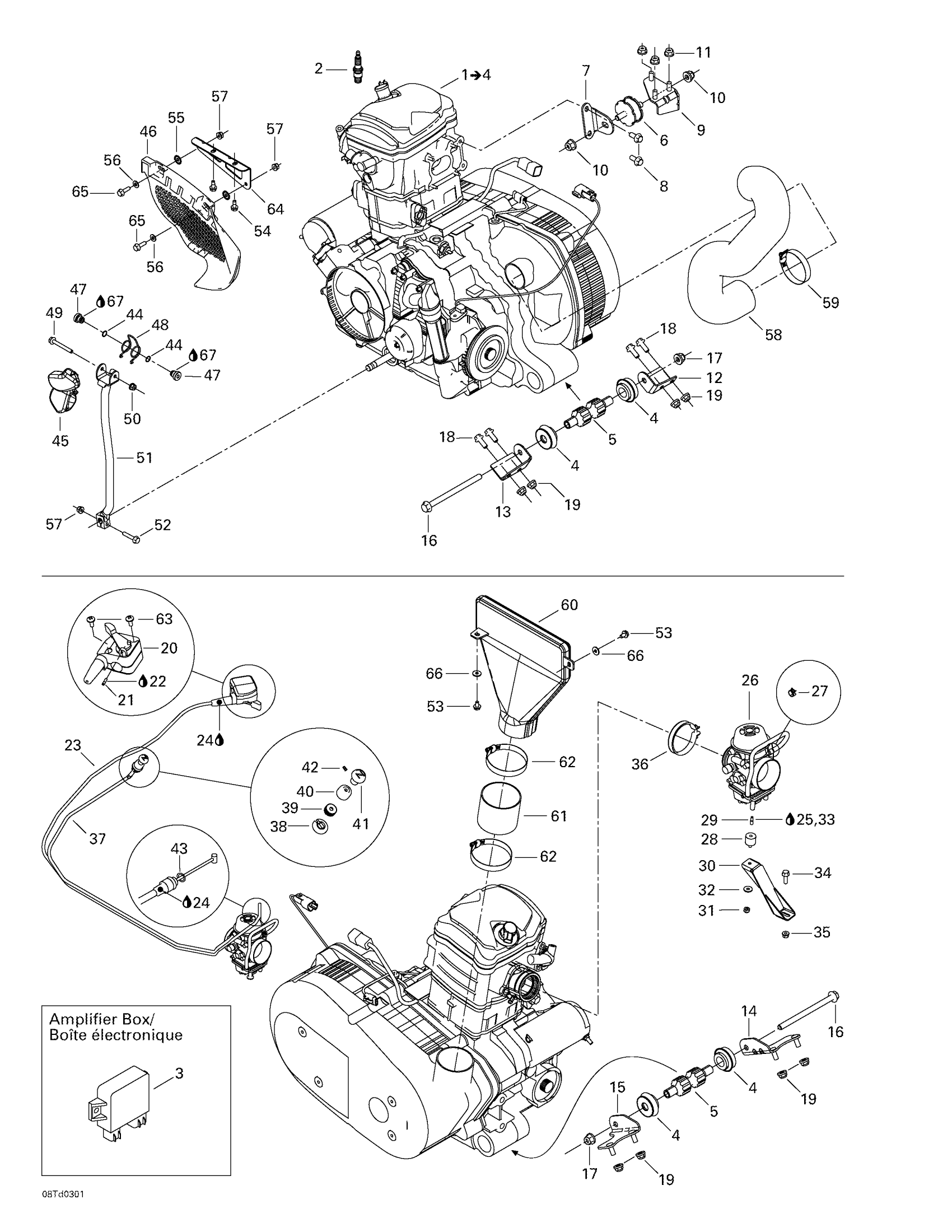

Can-Am Quest 650, 2003 Engine And Engine Support Diagram

#

Description
Price

1

Rotax 4 strokes engine "514" | Includes 1 - 4. 2 X 4 Quest STD 500.

707000289

Unavailable

Rotax 4 strokes engine "610"

707000100

Unavailable

Rotax 4 strokes engine "514" | Includes 1 - 2.

707000216

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

$5.66

3

Amplifier box

711265820

Unavailable

4

Anti-Vibration Mount

707000094

Unavailable

5

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

707000174

Unavailable

7

Engine Support, Black

707000159

Unavailable

8

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

9

Engine Bracket

707000161

Unavailable

10

Hex. Flange Elastic Nut M10

233201414

$1.26

11

Hex. Flange Elastic Nut M8

233281414

$1.14

12

LH FRONT ENGINE BRACKET, BLACK - Call your local BRP dealership

707000132

$11.51

13

RH Front Engine Bracket, Black

707000101

Unavailable

14

RH Rear Engine Bracket

707000207

Unavailable

15

LH Rear Engine Bracket

707000210

Unavailable

16

Hex. Flange Screw M10 X 140

230604044

$5.19

17

Hex. Flange Elastic Nut M10

233201414

$1.26

18

Hex. Flange Screw M8 X 20

207682044

$0.92

19

Hex. Flange Elastic Nut M8

233281414

$1.14

20

THROTTLE HANDLE - Call your local BRP dealership

709400016

$55.35

21

SCREW-SET SOCKET DIN.913 - Call your local BRP dealership

250000017

Unavailable

22

Loctite BLACK/MAX Gel Tube, 20 g

293800061

Unavailable

23

THROTTLE CABLE - Call your local BRP dealership

707000097

Unavailable

24

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

25

Loctite 243, 10 ml

293800060

$20.77

26

CARBURETOR BSR42-7 - Call your local BRP dealership | Traxter 500 CVT

707200181

Unavailable

CARBURATOR BSR42-8 - Call your local BRP dealership | Traxter 650 CVT

707200186

Unavailable

27

Spring Clamp

414420700

$0.68

28

Anti-vibration Mount

707000248

Unavailable

29

THREADED INSERT - Call your local BRP dealership

707000250

$11.51

30

CABURETOR SUPPORT - Call your local BRP dealership

707000252

Unavailable

31

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

$1.19

32

Washer | DS 650 X

391301600

$0.48

33

Glue Tube, Loctite 454, 20 G

413708300

$59.97

34

Hex. Flange Screw M6 X 20

207662044

$1.66

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Clamp

512059062

Unavailable

37

CHOKE CABLE - Call your local BRP dealership

707000357

Unavailable

38

D SHAPE WASHER - Call your local BRP dealership

707000067

Unavailable

39

HOLDER CAP - Call your local BRP dealership

707000087

$4.58

40

Rubber Cap

707000088

Unavailable

41

BUTTON - Call your local BRP dealership

707000089

$9.20

42

PHILLIPS SCREW M3 X 5 - Call your local BRP dealership

250000108

Unavailable

43

O-RING - Call your local BRP dealership

293300075

$5.35

44

O-RING - Call your local BRP dealership

293300081

$5.68

45

SHIFTER HANDLE - Call your local BRP dealership | Includes 39 To 40

705500282

Unavailable

46

Transmission Guide

707000139

Unavailable

47

PIVOT SLEEVE - Call your local BRP dealership

707000205

Unavailable

48

LEVER SPRING - Call your local BRP dealership

705500283

$10.74

49

Hex. Flange Screw M6 X 50

207665044

$3.38

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

51

LOWER LEVER - Call your local BRP dealership

707000169

Unavailable

52

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

53

Hex. Forming Screw M6 X 10

210261050

$1.42

54

Hex. Flange Screw M6 X 16

210261650

$1.22

55

Lock Washer Serrated M6

250200041

$0.92

56

Flat Washer

224061121

$0.44

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

58

AIR INTAKE - Call your local BRP dealership

707000152

Unavailable

59

Tridon Clamp

293650023

$11.72

60

Exhaust

707000153

Unavailable

61

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

62

Tridon Clamp

293650064

$7.80

63

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

64

Guide Support, Black

707000297

Unavailable

65

Hex. Flange Screw M6 X 25

207662544

$0.53

66

Flat Washer

224061201

$1.11

67

Synthetic Grease, 400 G

293550010

Unavailable
