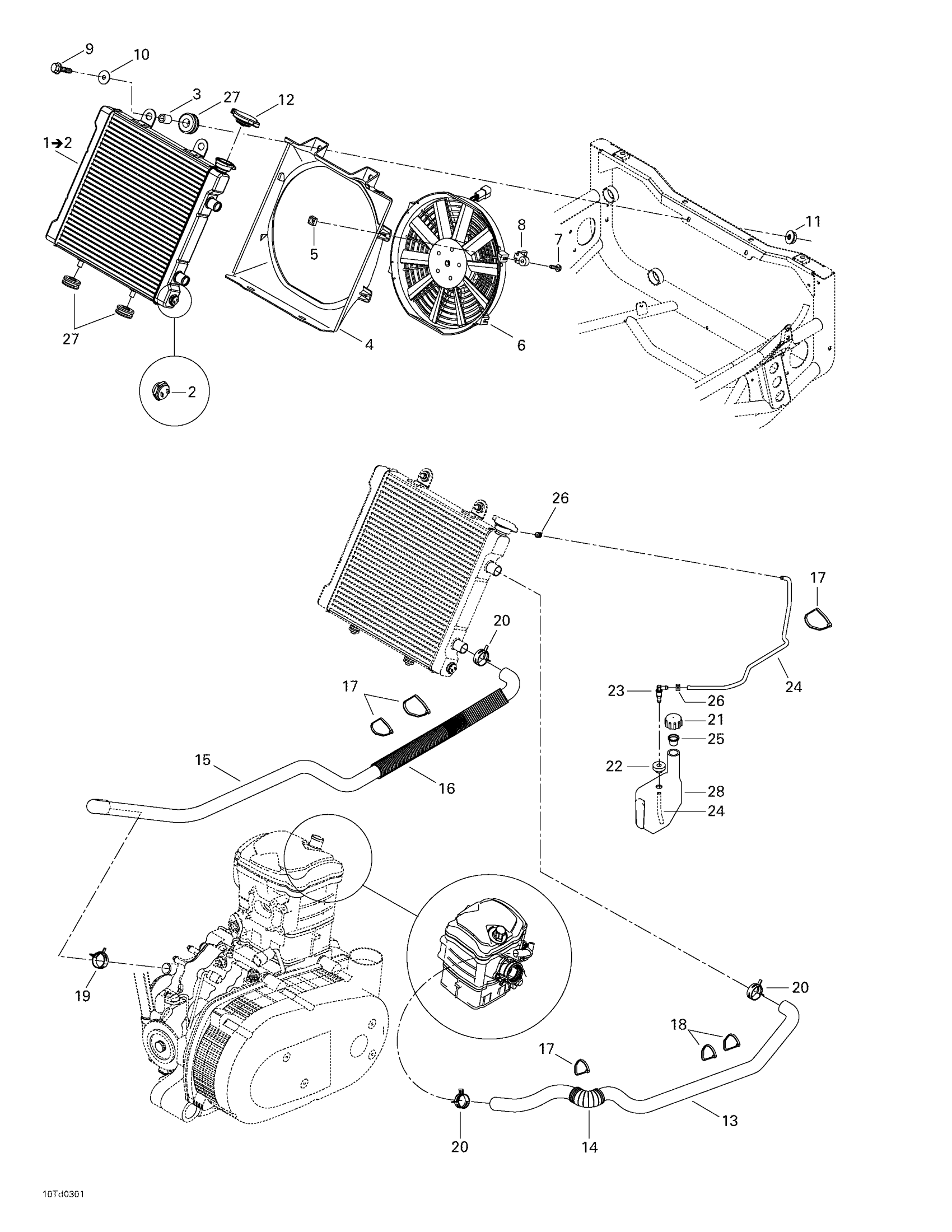

Can-Am Quest 650, 2003 Cooling System Diagram

#

Description
Price

1

Radiator ass'y | Includes 1 - 2.

709200088

Unavailable

2

Temperature Sensor

715900095

$66.89

3

Bushing

293900019

Unavailable

4

Outlet shroud

709200013

Unavailable

5

Square Nut M6

232862412

$1.18

6

Fan ass'y

709200004

Unavailable

7

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

8

Fan Support

709200017

Unavailable

9

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

10

Flat Washer

250200082

Unavailable

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

12

Radiator Pressure Cap

709200207

Unavailable

13

RADIATOR INLET HOSE - Call your local BRP dealership

709200047

Unavailable

14

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

15

RADIATOR OUT HOSE - Call your local BRP dealership

709200048

Unavailable

16

PROTECTION SHIELD - Call your local BRP dealership

709200032

Unavailable

17

Tie-Rap 180 mm

414115200

$0.09

18

Tie Wrap 368 mm

293750008

$0.85

19

Norma Spring Clamp

293650108

Unavailable

20

Norma Spring Clamp

293650109

Unavailable

21

TANK CAP - Call your local BRP dealership

709200009

Unavailable

22

Grommet

709200285

$8.38

23

Elbow Male Connector

414580600

$3.50

24

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

25

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

26

Spring Clamp

414554800

$0.83

27

Grommet

709000582

$4.38

28

Not Available As Spare Part - Friction Washer

Unavailable
