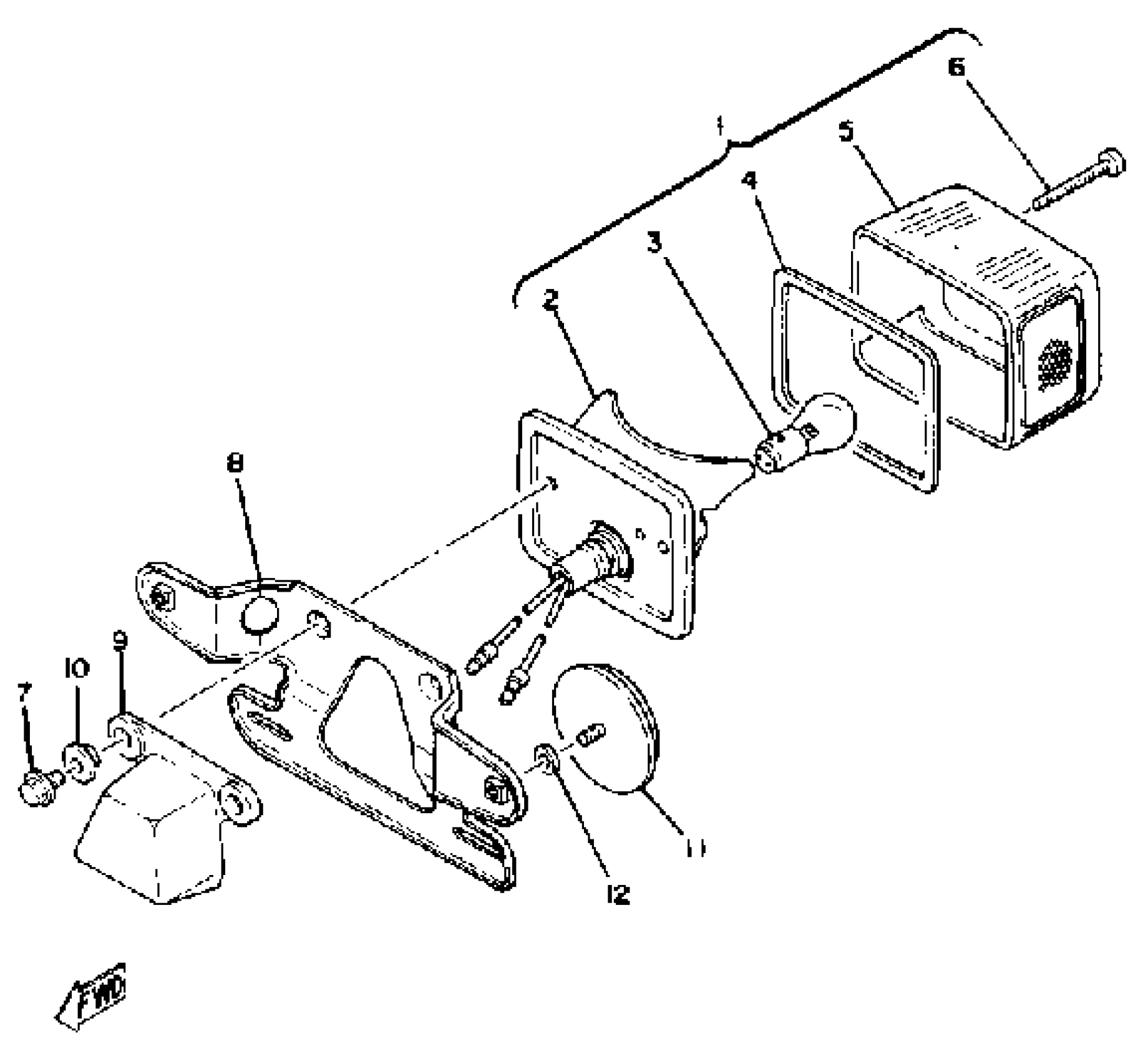

Yamaha QT50F (QT50) 1979 TAILLIGHT Diagram

#

Description
Price

1

. TAILLIGHT UNIT ASSEMBLY

2F4-84510-60-00

Unavailable

2

. BASE, TAILLIGHT

1M1-84511-60-00

Unavailable

3

. BULB

1M1-84514-60-00

Unavailable

4

GASKET, TAIL LENS

1M1-84523-60-00

$10.29

5

LENS, TAIL LAMP

1M1-84521-60-00

$34.25

6

SCREW, ADJUSTING

5BF-8433E-00-00

$5.70

7

BOLT, FLANGE

95817-06020-00

$2.52

8

BRACKET, LICENCE

3L8-84551-00-00

Unavailable

9

COVER

3L8-84544-00-00

Unavailable

10

COLLAR (8G8)

90387-06681-00

$6.17

11

REFLECTOR, REAR 1

449-85131-02-00

$24.04

12

WASHER, PLATE(3AJ)

90202-05191-00

$5.77
