1979 Yamaha QT50 (QT50F) Handle- Wire Diagram

← All diagrams

Find the part on the Handle- Wire diagram for your 1979 Yamaha QT50 (QT50F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

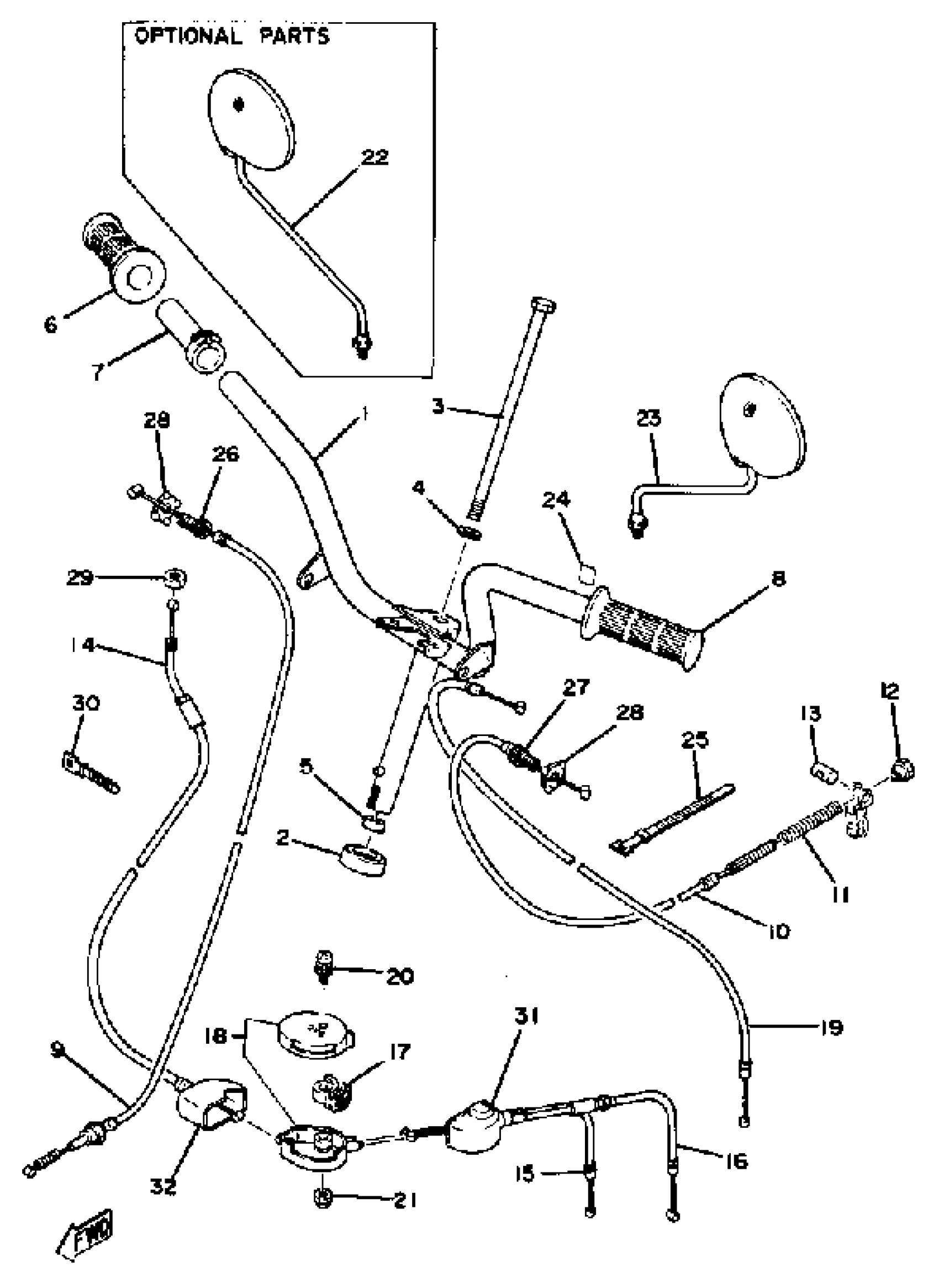

1979 Yamaha QT50 (QT50F) Handle- Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3L8-26110-00-00

1
Out of stock

2

BOOT, FRONT FORK

3L5-23191-00-00

1
Out of stock

3

BOLT, DOME HEAD

90106-08035-00

1
Out of stock

4

WASHER, PLATE (3L5)

90201-08772-00

1
Out of stock

5

CONE, EXPANDER

2E9-26128-00-00

1
Out of stock

6

GRIP (R.H)

353-26242-00-00

—

$21.92

In stock

7

TUBE, GUIDE

1V1-26243-00-00

1

$14.08

In stock

8

GRIP (L.H)

353-26241-00-00

—

$19.12

In stock

9

CABLE, BRAKE

3L8-26341-00-00

1
Out of stock

10

CABLE, BRAKE

3L8-26351-00-00

1
Out of stock

11

SPRING, COMPRESSION (3L5)

90501-10074-00

1

$6.89

In stock

12

NUT (25K)

90179-06411-00

1

$5.10

In stock

13

PIN 1562723700

90249-12008-00

1

$4.70

In stock

14

CABLE, THROTTLE 1

3L8-26311-00-00

1
Out of stock

15

CABLE,THROTTLE 2

5H9-26312-00-00

1
Out of stock

16

CABLE, PUMP

3L5-26321-00-00

1
Out of stock

17

PIECE, CONNECTING

2E9-26263-01-00

1
Out of stock

18

CBLE CONCT CAP ASSEMBLYASSY

2T4-26270-00-00

1
Out of stock

19

CABLE, STARTER 1

3L8-26331-01-00

1
Out of stock

20

SCREW, WITH WASHER

90159-05101-00

1
Out of stock

21

NUT, CROWN(8V0)

90176-05059-00

—

$2.15

In stock

22

—

$48.94

In stock

23

REAR VIEW MIRROR ASSY(LEFT)

1Y0-26290-10-00

—

$48.94

In stock

24

LABEL, CHOKE

3L8-26139-00-00

1
Out of stock

25

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

26

BOLT

90123-08002-00

—

$8.93

In stock

27

BOLT

90123-08002-00

—

$8.93

In stock

28

NUT

90179-08030-00

—

$3.78

In stock

29

NUT, HEXAGON

90170-10038-00

—
Out of stock

30

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

31

BOOT, CYLINDER

3L5-26266-00-00

1
Out of stock

32

BOOT, THROTTLE CBLE

3L5-26316-00-00

1
Out of stock
