1979 Yamaha QT50 (QT50F) Electrical Diagram

← All diagrams

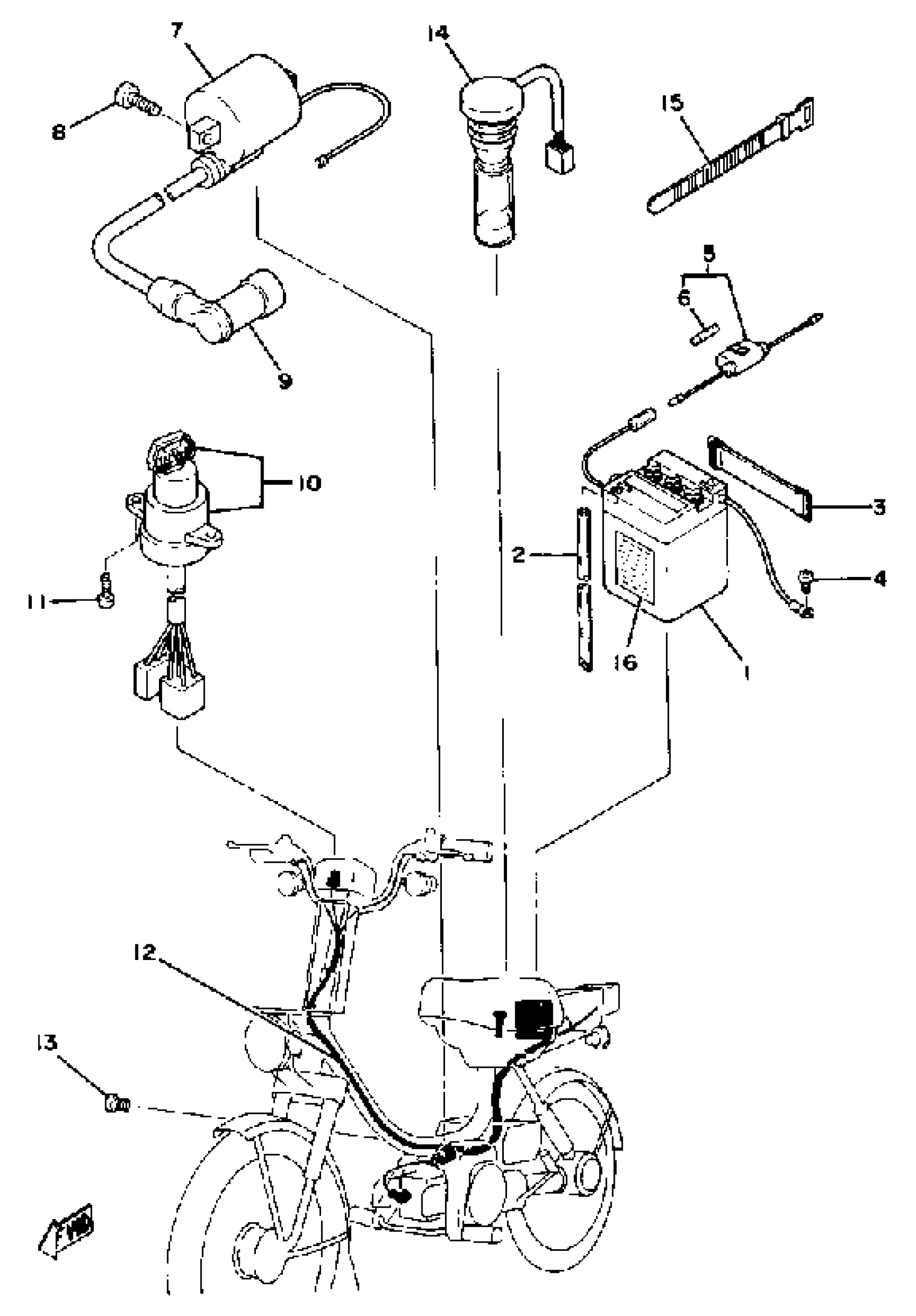

Find the part on the Electrical diagram for your 1979 Yamaha QT50 (QT50F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha QT50 (QT50F) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

6N4-2A-2 GS BATTERY

6N4-2A200-00-00

1
Out of stock

2

PIPE, BREATHER

3L5-82112-00-00

1
Out of stock

3

BAND, BATTERY

22F-82131-00-00

1

$23.43

In stock

4

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

5

FUSE HOLDER ASSY

55K-82150-02-00

1

$30.99

In stock

6

FUSE

1A0-82151-00-00

1
Out of stock

7

IGNITION COIL ASSY

4RP-82310-26-00

1
Out of stock

8

SCREW, PAN

98507-06014-00

1

$6.18

In stock

9

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

10

MAIN SWITCH ASSEMBLY

3L8-82510-20-00

1
Out of stock

11

SCREW

98980-04016-00

1
Out of stock

12

WIRE HARNESS ASSEMBLY

3L8-82590-20-00

1
Out of stock

13

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

14

OIL LVL GAUGE ASSEMBLY

5M0-85720-00-00

1
Out of stock

15

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

16

LABEL, BATTERY

40A-82141-G0-00

1
Out of stock
