1979 Yamaha QT50 (QT50F) Kick-Starter Diagram

← All diagrams

Find the part on the Kick-Starter diagram for your 1979 Yamaha QT50 (QT50F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

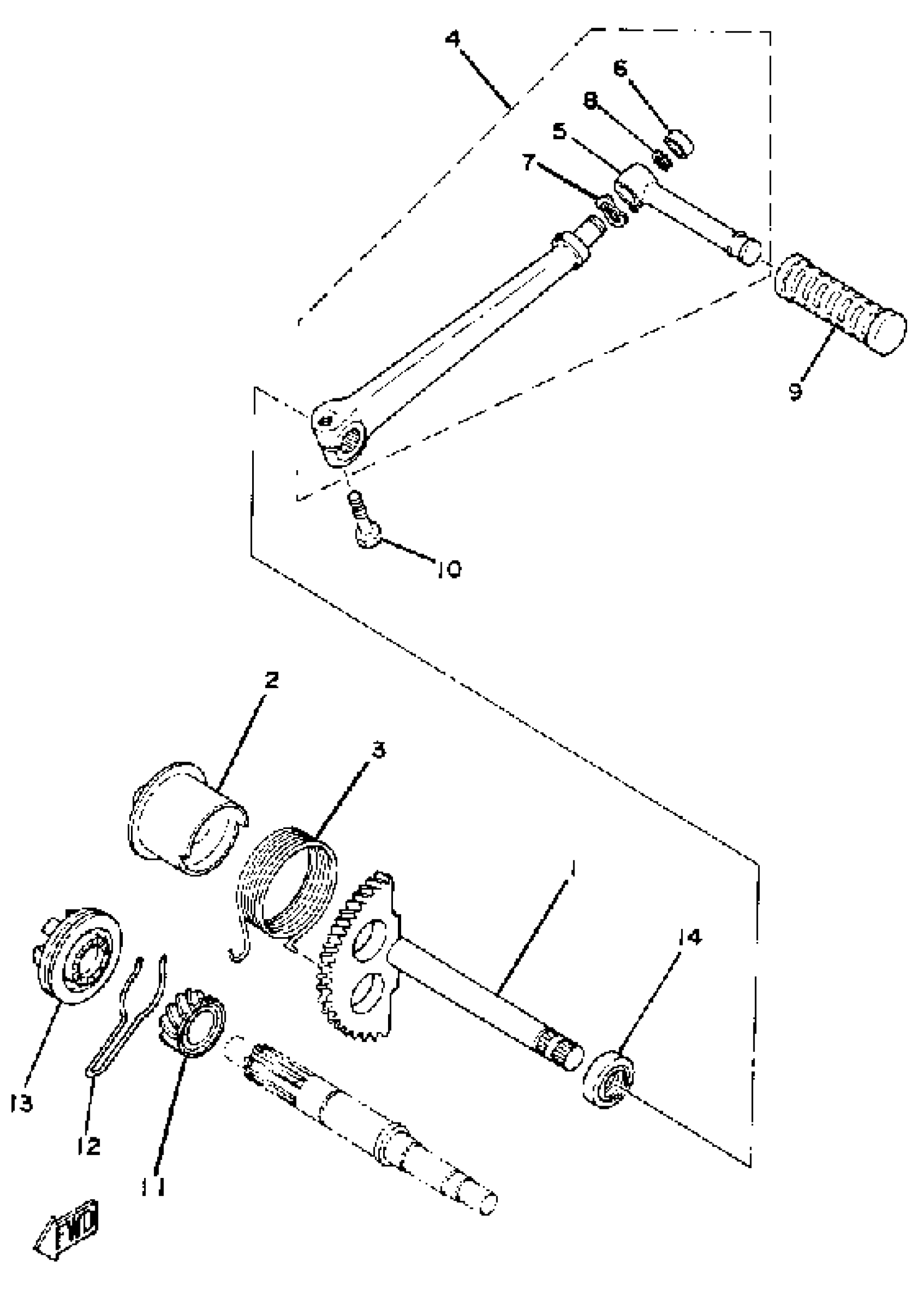

1979 Yamaha QT50 (QT50F) Kick-Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK SHAFT ASSY

3L5-15601-01-00

1
Out of stock

2

GUIDE, SPRING

3L5-15664-00-00

1

$18.21

In stock

3

SPRING, TORSION (3L5)

90508-28399-00

1

$10.68

In stock

4

KICK CRANK ASSEMBLY

34M-15620-00-00

1
Out of stock

5

LEVER, KICK

(2T4-15612-00-00)

1
Out of stock

6

PLUG, TIGHT

(90331-13018-00)

1
Out of stock

7

WASHER, WAVE

(90206-10063-00)

1
Out of stock

8

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

9

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

10

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

11

GEAR, KICK PINION (13T)

3L5-15631-00-00

1

$68.89

In stock

12

CLIP

3L5-15673-00-00

1

$6.83

In stock

13

GEAR, DRIVE

3L5-13178-00-00

1

$124.15

In stock

14

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock
