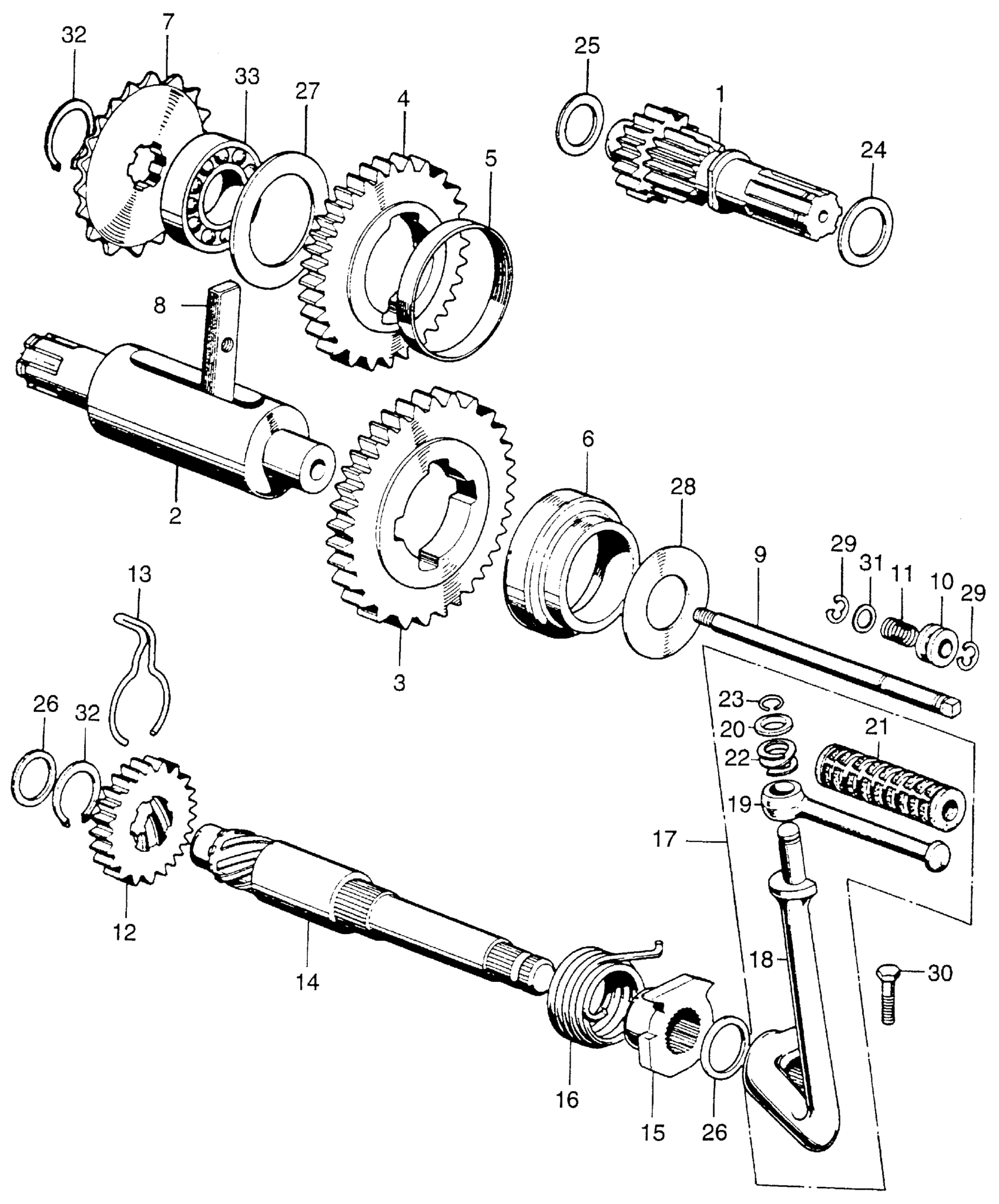

Honda QA50A MOTORCYCLE, JPN, VIN# QA50-1000001 TRANSMISSION + KICK STARTER ARM Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23210-083-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-082-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T) (NOT AVAILABLE)

23421-083-000

Unavailable

4

GEAR, COUNTERSHAFT SECOND (42T) (NOT AVAILABLE)

23441-082-000

Unavailable

5

COLLAR (50MM) (NOT AVAILABLE)

23442-082-000

Unavailable

6

SPACER, SHAFT (NOT AVAILABLE)

23471-083-000

Unavailable

7

SPROCKET, DRIVE (15T) (NOT AVAILABLE)

23801-114-000

Unavailable

8

PAWL, GEARSHIFT (NOT AVAILABLE)

24201-083-000

Unavailable

9

SHAFT, GEARSHIFT PAWL (NOT AVAILABLE)

24205-114-010

Unavailable

10

FLANGE, PAWL SHAFT (NOT AVAILABLE)

24206-083-000

Unavailable

11

SPRING, CHANGE PAWL SHAFT (NOT AVAILABLE)

24209-114-010

Unavailable

12

PINION, KICK STARTER

28211-083-000

Unavailable

13

SPRING, FRICTION (NOT AVAILABLE)

28239-083-000

Unavailable

14

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-083-000

Unavailable

15

RETAINER, KICK SPRING (NOT AVAILABLE)

28262-083-000

Unavailable

16

SPRING, KICK STARTER (NIPPON HATSUJO)

28281-035-003

$8.38

16

SPRING, KICK STARTER (NIPPON HATSUJO) This part replaces 28281-035-010.

28281-035-003

$8.38

17

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-126-000

Unavailable

18

ARM, KICK STARTER (NOT AVAILABLE)

28301-098-000

Unavailable

19

PEDAL, KICK STARTER This part replaces 28302-001-000.

28302-126-770

Unavailable

19

PEDAL, KICK STARTER

28302-126-770

Unavailable

20

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

21

RUBBER A, KICK STARTER This part replaces 28311-001-000.

95011-51000

$3.69

21

RUBBER A, KICK STARTER

95011-51000

$3.69

22

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

23

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

24

WASHER (6MM) (NOT AVAILABLE)

90451-081-000

Unavailable

25

WASHER (15MM) (NOT AVAILABLE) | Use from Engine SN 1069258

90451-082-000

Unavailable

26

WASHER, THRUST (15X1) This part replaces 90454-200-000.

90457-HB3-000

$2.89

26

WASHER, THRUST (15X1)

90457-HB3-000

$2.89

27

WASHER, THRUST (30MM) (NOT AVAILABLE)

90459-082-000

Unavailable

28

WASHER (17MM)

90468-064-000

Unavailable

29

CIRCLIP, E-TYPE (6MM)

90603-083-000

Unavailable

30

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

30

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

31

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

33

BEARING, RADIAL BALL (6004) This part replaces 96100-60040.

96100-60040-00

$15.58

33

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58
