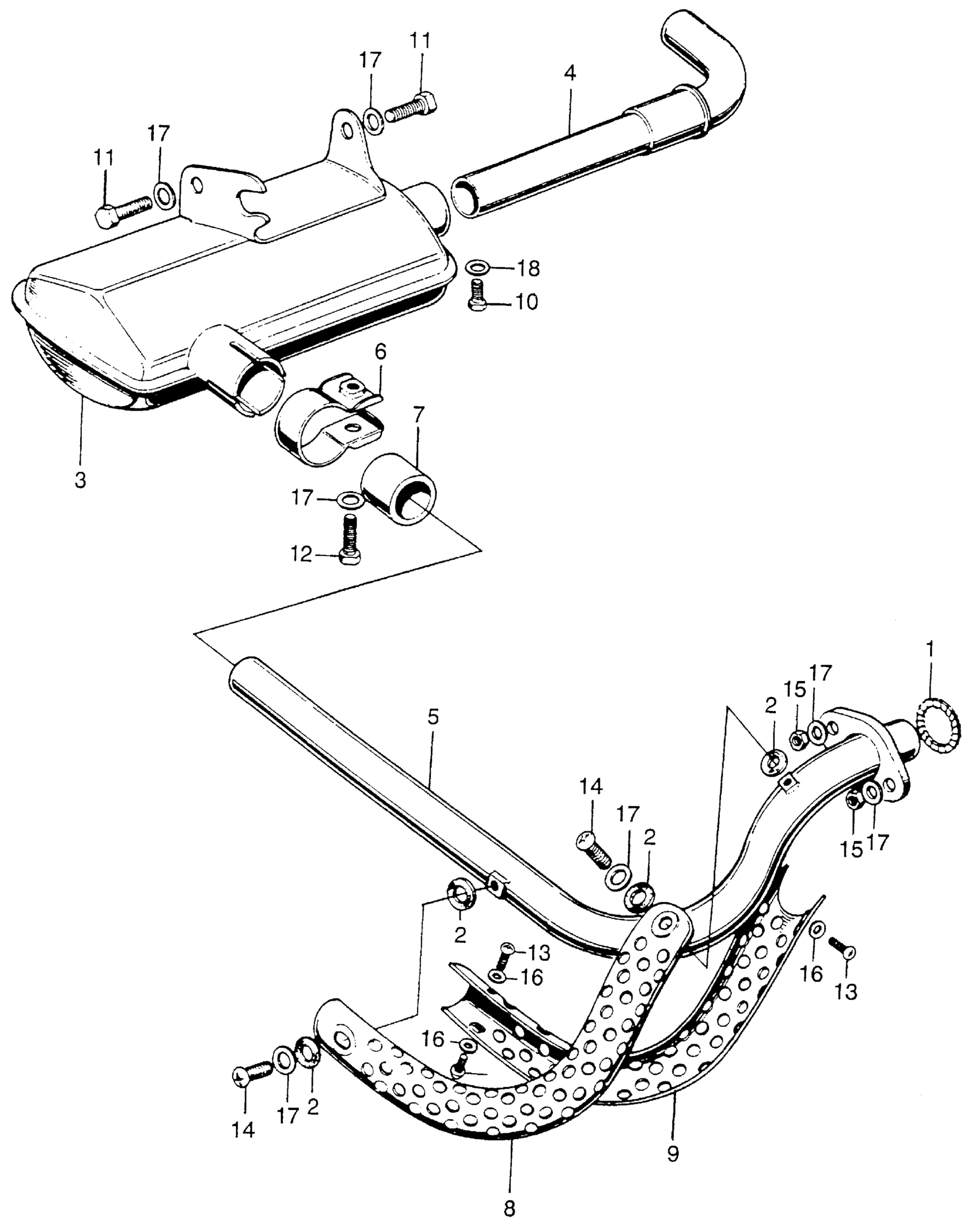

Honda QA50A MOTORCYCLE, JPN, VIN# QA50-1000001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18291-044-020.

18291-044-405

Unavailable

1

GASKET, EX. PIPE

18291-044-405

Unavailable

2

GASKET, PROTECTOR

18292-167-890

$1.88

2

GASKET, PROTECTOR This part replaces 18292-290-000.

18292-167-890

$1.88

2

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

3

MUFFLER (NOT AVAILABLE) This part replaces 18310-114-670.

18310-114-677

Unavailable

3

MUFFLER (NOT AVAILABLE)

18310-114-677

Unavailable

4

PIPE, EX. DIFFUSER (NOT AVAILABLE)

18314-114-670

Unavailable

5

PIPE, EX. (NOT AVAILABLE)

18320-114-010

Unavailable

6

BAND, MUFFLER

18371-GZ4-670

Unavailable

6

BAND, MUFFLER This part replaces 18371-114-000.

18371-GZ4-670

Unavailable

7

GASKET, MUFFLER

18391-GZ4-670

$18.81

7

GASKET, MUFFLER This part replaces 18391-045-000.

18391-GZ4-670

$18.81

7

GASKET, MUFFLER This part replaces 18391-045-306.

18391-GZ4-670

$18.81

8

COVER A, EX. PIPE (NOT AVAILABLE)

18400-114-020

Unavailable

9

COVER B, EX. PIPE (NOT AVAILABLE)

18450-114-000

Unavailable

10

BOLT, HEX. (5X8) This part replaces 92000-05008-4J.

92101-05008-4J

$2.16

10

BOLT, HEX. (5X8)

92101-05008-4J

$2.16

11

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

12

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

12

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

13

SCREW, PAN (4X6) This part replaces 93500-04005-0A.

93500-04006-0A

$1.49

13

SCREW, PAN (4X6) This part replaces 93500-04006.

93500-04006-0A

$1.49

13

SCREW, PAN (4X6)

93500-04006-0A

$1.49

13

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$1.49

14

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

WASHER, PLAIN (4MM)

94101-04000

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, SPRING (5MM)

94111-05000

$1.49
