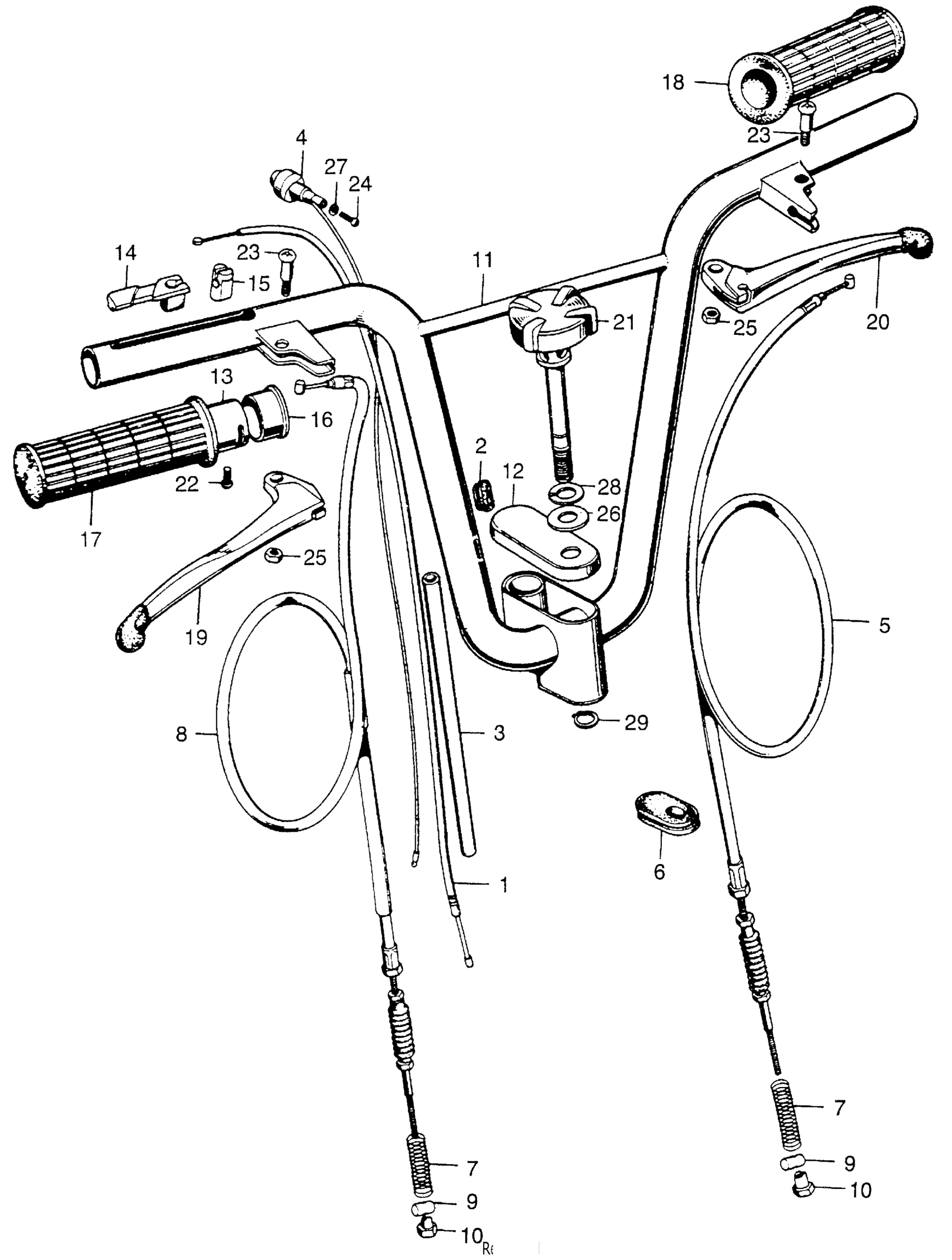

Honda QA50A MOTORCYCLE, JPN, VIN# QA50-1000001 HANDLEBAR K Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-114-000

Unavailable

2

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

3

TUBE, VINYL (7X200) (NOT AVAILABLE)

17915-114-000

Unavailable

4

SWITCH, MAIN (NOT AVAILABLE)

35100-114-000

Unavailable

5

CABLE, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1057061 This part replaces 43450-114-000.

43450-114-010

Unavailable

5

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-114-010

Unavailable

6

GROMMET, RR. BRAKE CABLE (NOT AVAILABLE)

43455-114-300

Unavailable

7

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

8

CABLE, FR. BRAKE | Use up to Frame SN 1057061 This part replaces 45450-114-000.

45450-130-640

Unavailable

8

CABLE, FR. BRAKE | Use up to Frame SN 1057061 This part replaces 45450-114-010.

45450-130-640

Unavailable

8

CABLE, FR. BRAKE This part replaces 45450-114-010.

45450-130-640

Unavailable

8

CABLE, FR. BRAKE | Use up to Frame SN 1057061 This part replaces 45450-120-000.

45450-130-640

Unavailable

8

CABLE, FR. BRAKE This part replaces 45450-120-000.

45450-130-640

Unavailable

8

CABLE, FR. BRAKE | Use up to Frame SN 1057061 This part replaces 45450-130-000.

45450-130-640

Unavailable

8

CABLE, FR. BRAKE This part replaces 45450-130-000.

45450-130-640

Unavailable

8

CABLE, FR. BRAKE | Use up to Frame SN 1057061

45450-130-640

Unavailable

8

CABLE, FR. BRAKE

45450-130-640

Unavailable

9

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

9

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

9

JOINT A, BRAKE ARM

95015-31001

$1.53

10

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-001-000.

95015-41000

$1.49

10

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

10

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

11

HANDLEBAR (NOT AVAILABLE)

53100-114-000

Unavailable

12

CAP, HANDLE POST (NOT AVAILABLE)

53104-114-000

Unavailable

13

HANDLEBAR, THROTTLE GRIP

53141-044-010

Unavailable

14

HINGE, THROTTLE CABLE

53161-044-000

$8.88

15

HOLDER, THROTTLE CABLE (OUTER) (NOT AVAILABLE)

53162-063-000

Unavailable

16

STOPPER, THROTTLE GRIP

53163-044-010

Unavailable

17

GRIP, R. HANDLE This part replaces 53165-044-010.

95011-12100

$4.43

17

GRIP, R. HANDLE

95011-12100

$4.43

18

GRIP B, L. HANDLEBAR This part replaces 53166-044-010.

95011-12200

$5.66

18

GRIP B, L. HANDLEBAR

95011-12200

$5.66

19

LEVER, R. HANDLEBAR

53175-045-670

Unavailable

20

LEVER, L. HANDLEBAR

53178-045-670

Unavailable

21

KNOB, HANDLE POST (NOT AVAILABLE)

53741-114-000

Unavailable

22

SCREW, THROTTLE GRIP MOUNT This part replaces 90101-063-000.

90101-063-505

$5.04

22

SCREW, THROTTLE GRIP MOUNT

90101-063-505

$5.04

23

SCREW, L. HANDLEBAR LEVER PIVOT This part replaces 90114-063-000.

90116-GF8-000

$3.58

23

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.58

24

SCREW, FLAT (3X8) (SOURCE: VINTAGE PARTS INC.)

93600-03008-0A

Unavailable

25

NUT, HEX. (5MM)

94001-05000-0S

$2.74

26

WASHER, PLAIN (10MM)

94101-10000

$1.49

27

WASHER, SPRING (3MM)

94111-03000

$1.49

28

WASHER, SPRING (8MM)

94111-10000

$1.49

29

CIRCLIP (OUTER) (10MM)

94511-10000

$1.49
