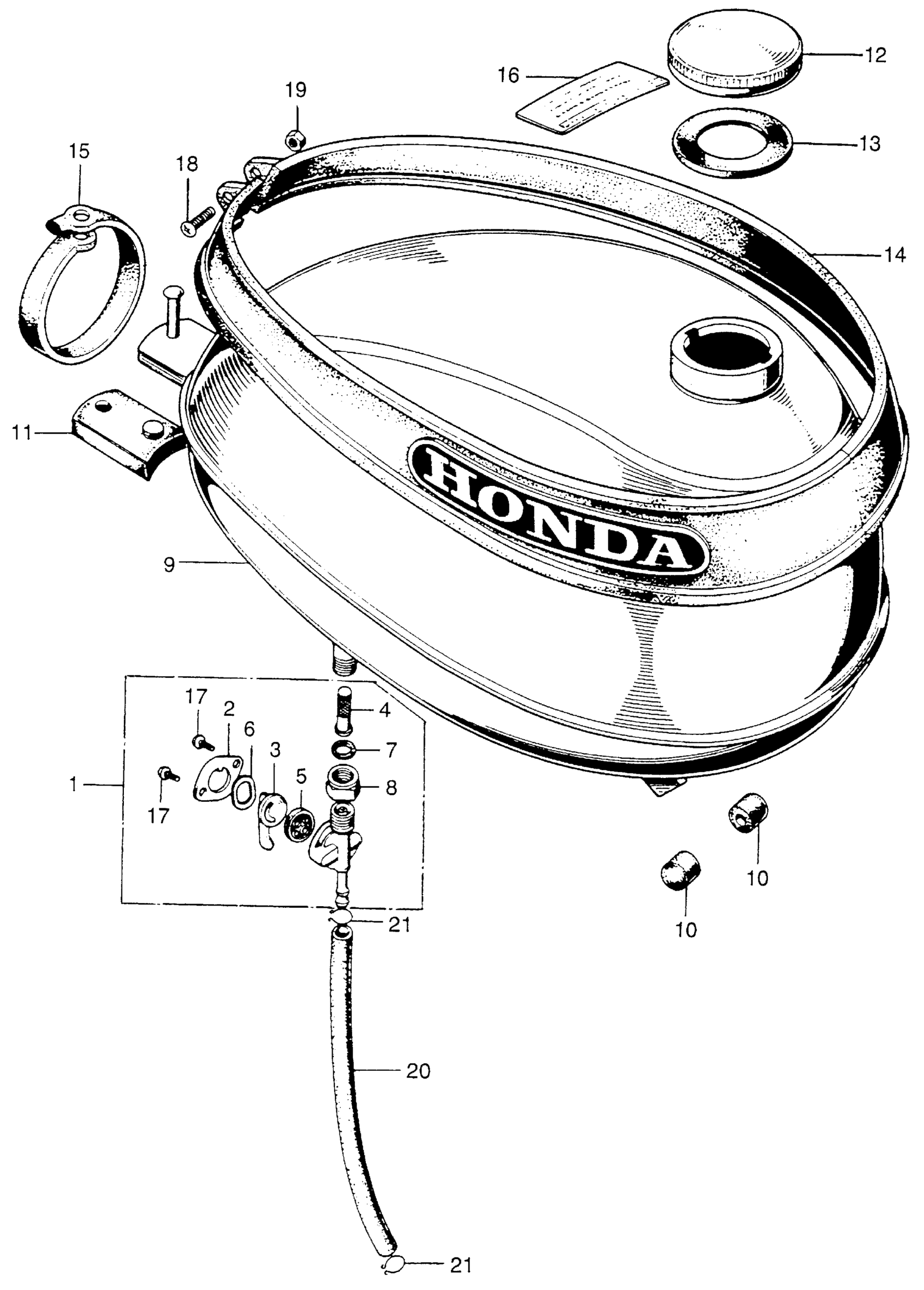

Honda QA50A MOTORCYCLE, JPN, VIN# QA50-1000001 FUEL TANK K Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-045-005

$38.67

2

COVER, PETCOCK (NOT AVAILABLE)

16952-081-005

Unavailable

3

LEVER, VALVE (NOT AVAILABLE)

16953-081-005

Unavailable

4

STRAINER, PETCOCK

16954-045-005

Unavailable

5

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

5

GASKET, VALVE

16957-ZE1-812

$3.08

6

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

7

GASKET, FUEL STRAINER CUP

16958-081-015

Unavailable

8

NUT, TURN BUCKLE (NOT AVAILABLE)

16962-081-005

Unavailable

9

TANK, FUEL (NOT AVAILABLE)

17500-114-000Z

Unavailable

10

RUBBER, FR. FUEL TANK

17611-045-670

$6.80

11

RUBBER, RR. FUEL TANK

17613-045-000

$14.21

12

CAP, FUEL FILLER This part replaces 17610-102-730.

17620-102-730

Unavailable

12

CAP, FUEL FILLER This part replaces 17620-045-670.

17620-165-643

$42.47

12

CAP, FUEL FILLER This part replaces 17620-045-671.

17620-165-643

$42.47

12

CAP, FUEL FILLER

17620-102-730

Unavailable

12

CAP, FUEL FILLER This part replaces 17620-114-000.

17620-102-730

Unavailable

12

CAP, FUEL FILLER This part replaces 17620-165-642.

17620-165-643

$42.47

12

CAP, FUEL FILLER This part replaces 17620-943-003.

17620-165-643

$42.47

12

CAP, FUEL FILLER This part replaces 17620-958-003.

17620-165-643

$42.47

12

CAP, FUEL FILLER This part replaces 17620-958-013.

17620-165-643

$42.47

13

GASKET This part replaces 17631-001-000.

17631-096-702

$2.47

13

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

14

RUBBER, KNEE GRIP (NOT AVAILABLE)

17661-114-000

Unavailable

15

BAND, FUEL TANK MOUNT

17670-045-010

Unavailable

16

LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 87504-045-010.

87504-045-020S

Unavailable

16

LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 87504-045-020.

87504-045-020S

Unavailable

16

LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 87504-045-020B.

87504-045-020S

Unavailable

16

LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

87504-045-020S

Unavailable

16

LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 87504-114-670.

87504-045-020S

Unavailable

17

SCREW, PAN (3X6)

93500-03006-0A

$1.49

18

SCREW, PAN (5X16)

93500-05016-0A

$1.49

19

NUT, HEX. (5MM)

94001-05000-0S

$2.74

20

TUBE (4.5) | Use up to Frame SN 1057061 This part replaces 95001-45000.

95001-45000-40

Unavailable

20

BULK HOSE, FUEL (4.5X3000) (4.5) | Use up to Frame SN 1057061

95001-45003-60M

$36.67

20

TUBE (4.5) | Use up to Frame SN 1057061 This part replaces 95001-45000-90.

95001-45000-40

Unavailable

20

TUBE (4.5) | Use up to Frame SN 1057061 This part replaces 95001-45100.

95001-45000-40

Unavailable

20

TUBE (4.5) | Use up to Frame SN 1057061 This part replaces 95001-45100-90.

95001-45000-40

Unavailable

20

TUBE (4.5) | Use up to Frame SN 1057061 This part replaces 95001-45120.

95001-45000-40

Unavailable

20

TUBE (4.5) | Use up to Frame SN 1057061 This part replaces 95001-45130.

95001-45000-40

Unavailable

20

BULK HOSE, FUEL (4.5X3000) (4.5X130) | Use from Frame SN 1057062

95001-45003-60M

$36.67

20

TUBE (4.5) | Use up to Frame SN 1057061 This part replaces 95001-45150.

95001-45000-40

Unavailable

20

TUBE (4.5) | Use up to Frame SN 1057061 This part replaces 95001-45210.

95001-45000-40

Unavailable

21

CLIP, TUBE (B8) | Use from Frame SN 1057062

95002-02080

$1.80

21

CLIP, TUBE (4.5)

95002-45000

$1.49
