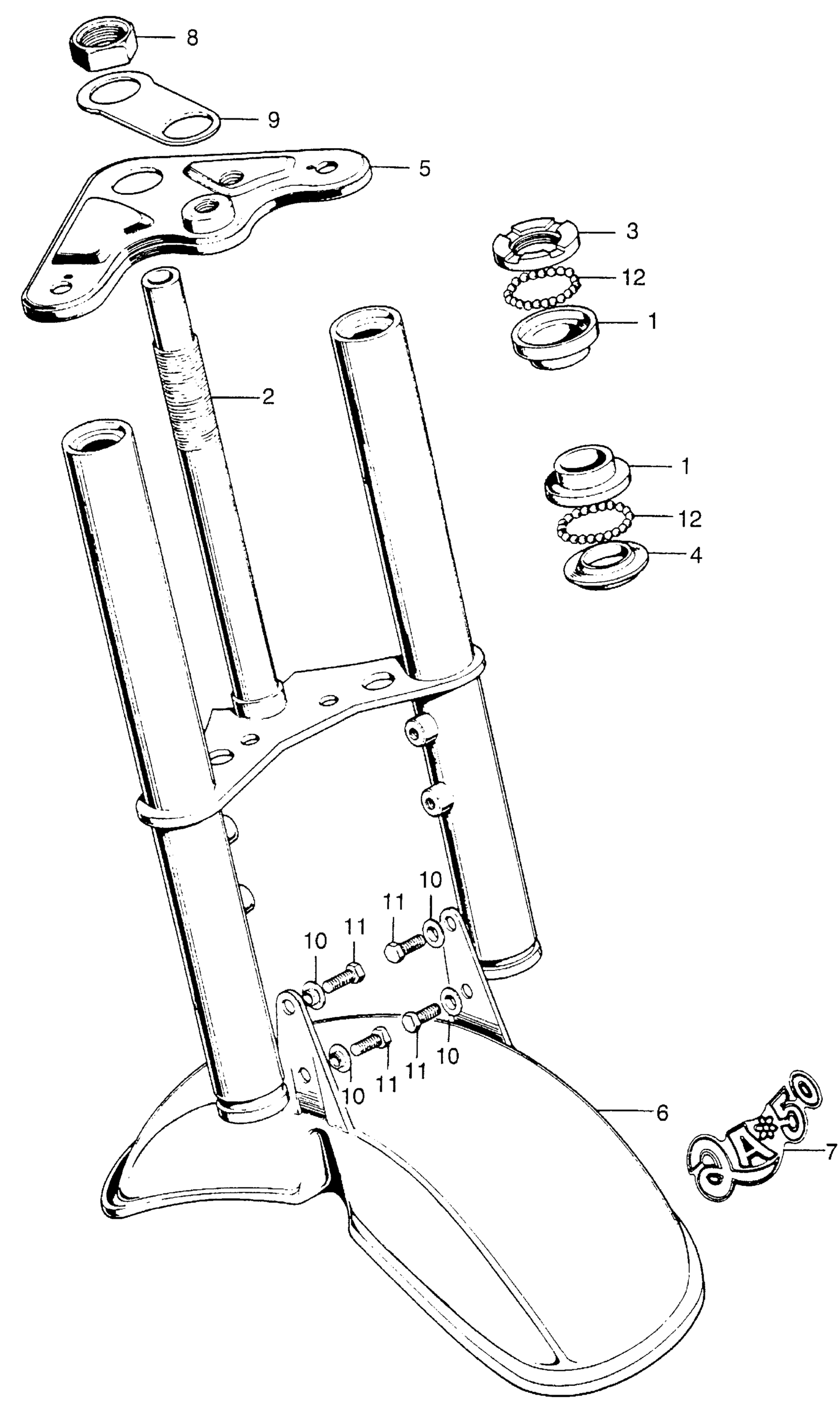

Honda QA50A MOTORCYCLE, JPN, VIN# QA50-1000001 FRONT FORK K Diagram

#

Description
Price

1

RACE, STEERING TOP BALL

50301-045-670

Unavailable

2

FORK, FR. *NH36M* (LAVA GRAY METALLIC) (NOT AVAILABLE)

51510-114-670ED

Unavailable

3

RACE, STEERING TOP CONE (NOT AVAILABLE)

53211-045-010

Unavailable

4

RACE, STEERING CONE (LOWER)

53212-045-020

Unavailable

5

PLATE, FORK TOP BRIDGE *NH35* (CLOUD SILVER) (NOT AVAILABLE)

53230-114-000AU

Unavailable

6

FENDER, FR. *R2* (SCARLET) (NOT AVAILABLE) This part replaces 61100-114-000C.

61100-129-670C

Unavailable

6

FENDER, FR. *Y28* (GYPSY YELLOW) (NOT AVAILABLE) This part replaces 61100-114-000EA.

61100-129-670EA

Unavailable

6

FENDER, FR. *G27* (SPROUT GREEN) (NOT AVAILABLE) This part replaces 61100-114-000EB.

61100-129-670EB

Unavailable

6

FENDER, FR. *R2* (SCARLET) (NOT AVAILABLE)

61100-129-670C

Unavailable

6

FENDER, FR. *Y28* (GYPSY YELLOW) (NOT AVAILABLE)

61100-129-670EA

Unavailable

6

FENDER, FR. *G27* (SPROUT GREEN) (NOT AVAILABLE)

61100-129-670EB

Unavailable

7

EMBLEM, FENDER (NOT AVAILABLE)

87507-114-670

Unavailable

8

NUT, STEERING STEM This part replaces 90304-114-000.

95020-15100

$3.17

8

NUT, STEERING STEM

95020-15100

$3.17

9

WASHER, STEERING STEM (NOT AVAILABLE)

90503-114-000

Unavailable

10

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

11

BOLT, HEX. (6X12) | Use up to Frame SN 1061458 This part replaces 92000-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12) | Use up to Frame SN 1061458 This part replaces 92101-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12) | Use up to Frame SN 1061458

92101-06012-0A

$1.49

12

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
