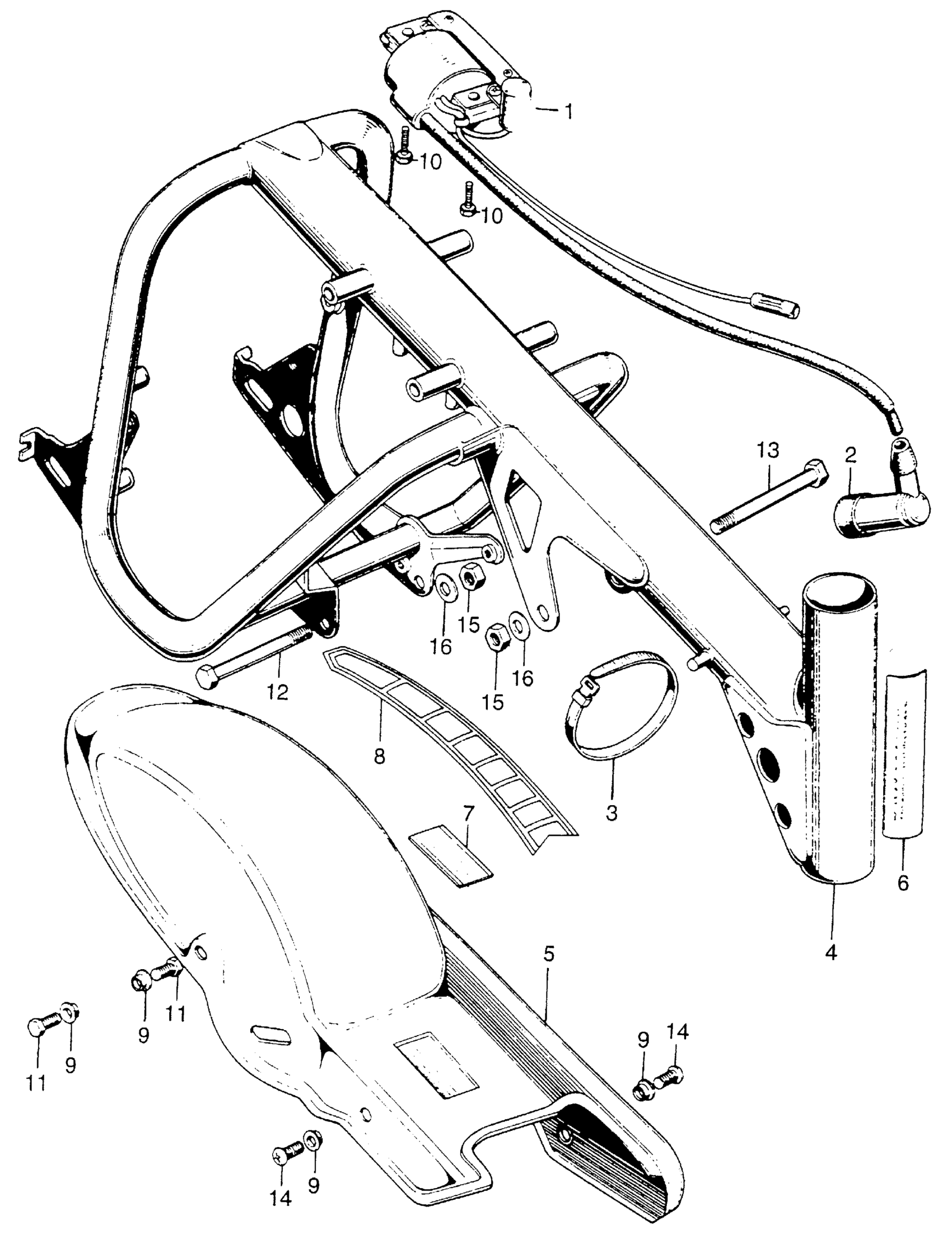

Honda QA50A MOTORCYCLE, JPN, VIN# QA50-1000001 FRAME + REAR FENDER Diagram

#

Description
Price

1

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30400-114-017.

30400-129-670

Unavailable

1

COIL ASSY., IGNITION (NOT AVAILABLE)

30400-129-670

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

3

BAND B2, CABLE HARNESS This part replaces 32161-286-000.

95014-62200

$2.11

3

BAND B2, CABLE HARNESS This part replaces 32162-286-000.

95014-62200

$2.11

3

BAND B2, CABLE HARNESS

95014-62200

$2.11

3

BAND B3, CABLE HARNESS

95014-62300

$2.25

4

FRAME *NH36M* (LAVA GRAY METALLIC)

50100-114-671ED

Unavailable

5

FENDER, RR. *R2* (SCARLET) (NOT AVAILABLE) This part replaces 80100-114-000C.

80100-129-670C

Unavailable

5

FENDER, RR. *Y28* (GYPSY YELLOW) (NOT AVAILABLE) This part replaces 80100-114-000EA.

80100-129-670EA

Unavailable

5

FENDER, RR. *G27* (SPROUT GREEN) (NOT AVAILABLE) This part replaces 80100-114-000EB.

80100-129-670EB

Unavailable

5

FENDER, RR. *R2* (SCARLET) (NOT AVAILABLE)

80100-129-670C

Unavailable

5

FENDER, RR. *Y28* (GYPSY YELLOW) (NOT AVAILABLE)

80100-129-670EA

Unavailable

5

FENDER, RR. *G27* (SPROUT GREEN) (NOT AVAILABLE)

80100-129-670EB

Unavailable

6

PLATE, NAME

87125-041-680

$4.92

7

LABEL, CAUTION (NOT AVAILABLE)

87505-114-670

Unavailable

9

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

10

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

10

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

10

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

11

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

12

BOLT, HEX. (8X80) This part replaces 92000-08080-0A.

92180-08080-0A

$2.50

12

BOLT, HEX. (8X80)

92180-08080-0A

$2.50

13

BOLT, HEX. (8X88) (NOT AVAILABLE)

92000-08088-0A

Unavailable

14

SCREW, PAN (6X14) This part replaces 93500-06014.

93500-06014-0A

$1.49

14

SCREW, PAN (6X14)

93500-06014-0A

$1.49

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49
