2014 Yamaha Phazer RTX (PZ50RTEW) Headlight Diagram

← All diagrams

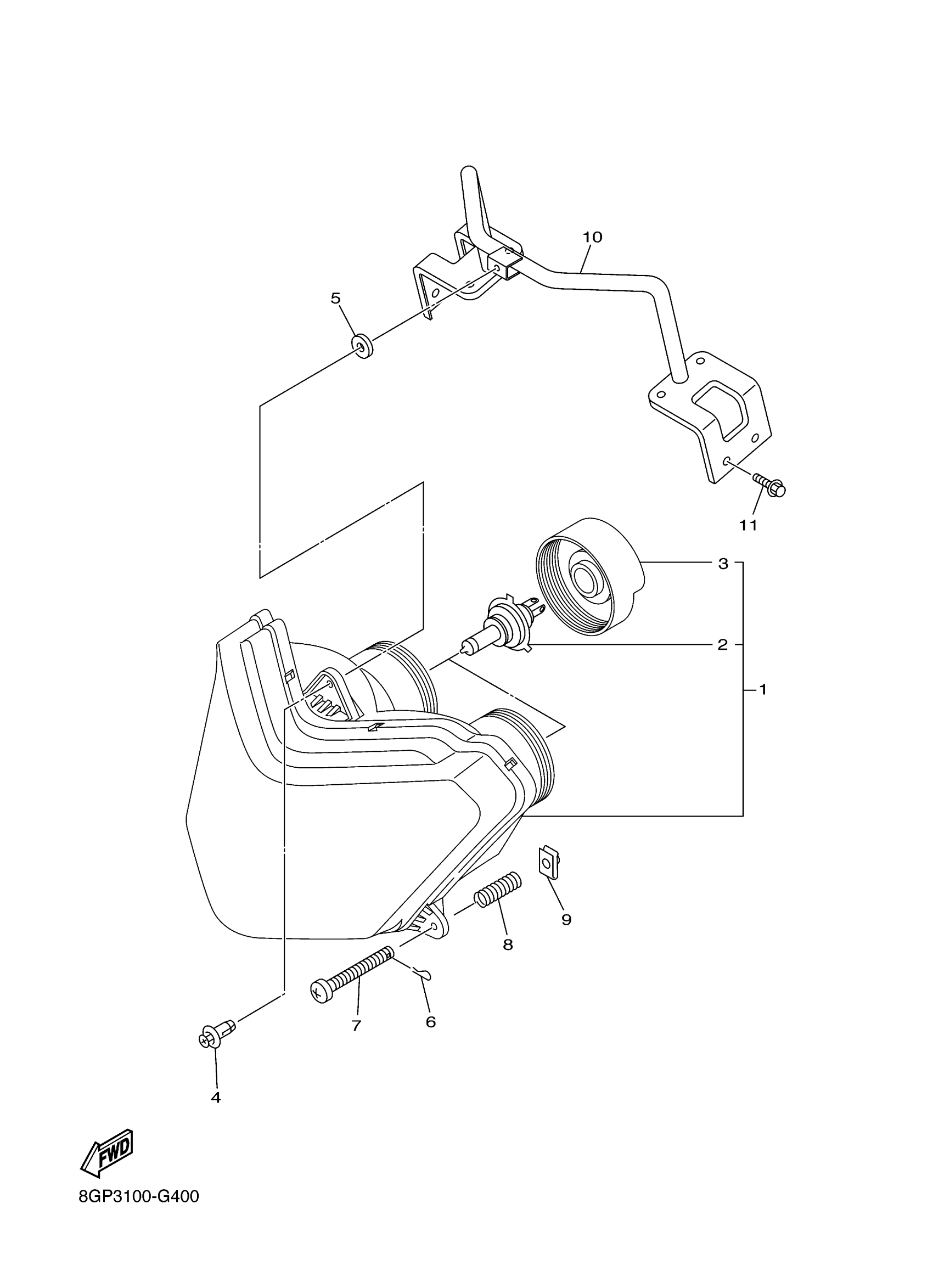

Find the part on the Headlight diagram for your 2014 Yamaha Phazer RTX (PZ50RTEW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha Phazer RTX (PZ50RTEW) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

8GK-84310-00-00

1

$263.28

In stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

8GK-84397-01-00

—

$20.23

In stock

4

RIVET

90269-06001-00

1

$5.42

In stock

5

WASHER, PLATE 1412342700

90202-06008-00

1

$3.91

In stock

6

CLIP

8K4-84374-00-00

1

$6.82

In stock

7

SCREW, ADJUSTING

8M6-84331-00-00

1

$14.80

In stock

8

SPRING, ADJUST SCREW

8A5-84332-00-00

1

$7.40

In stock

9

NUT, SPRING

90183-050A9-00

1

$6.52

In stock

10

STAY, HEADLIGHT 1

8GK-84118-00-00

—

$55.38

In stock

11

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock
