2014 Yamaha Phazer RTX (PZ50RTEW) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 2014 Yamaha Phazer RTX (PZ50RTEW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

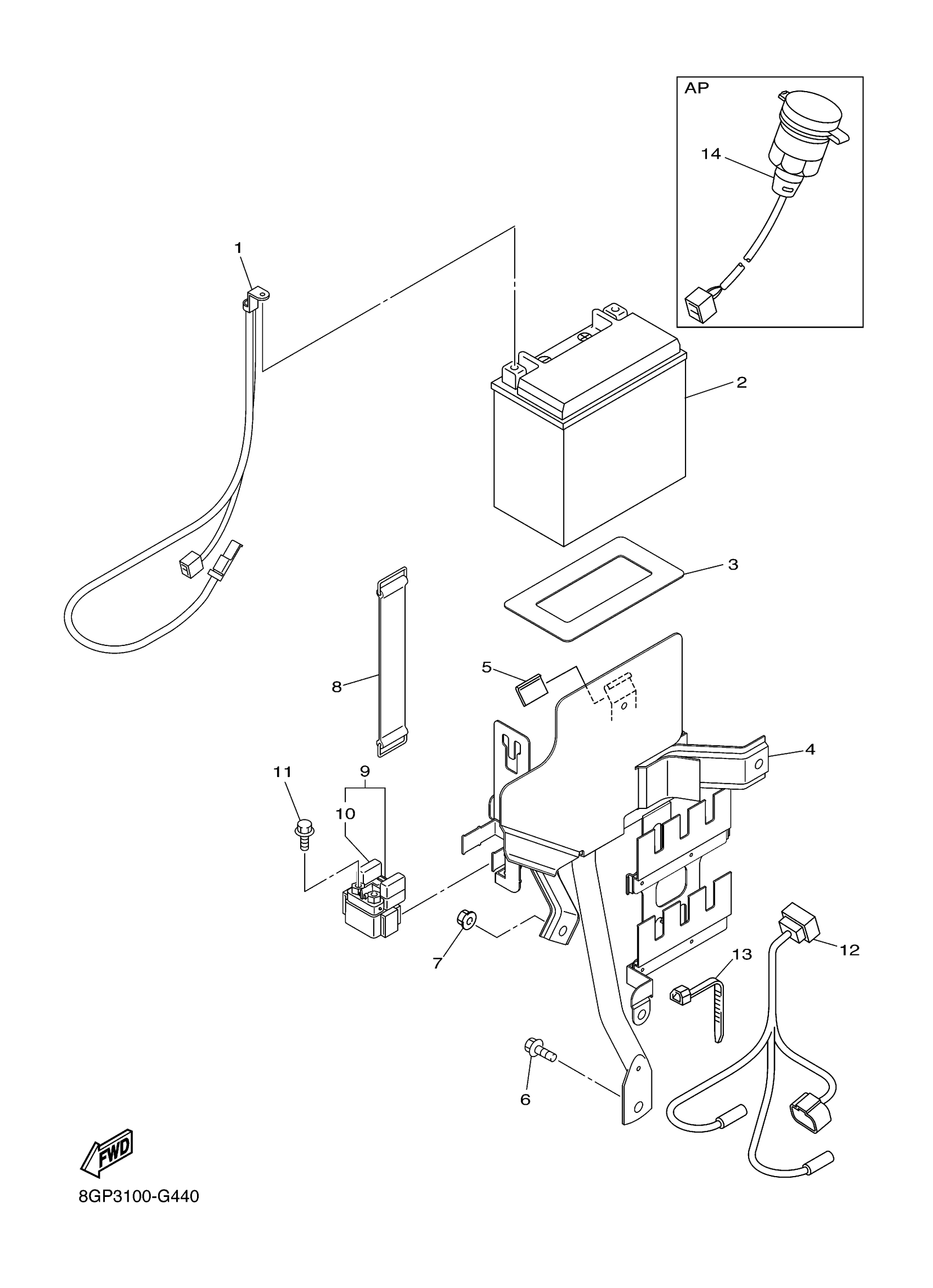

2014 Yamaha Phazer RTX (PZ50RTEW) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE, MINUS LEAD

8GC-82116-00-00

—

$44.37

In stock

2

YTX14BS YUASA BATTERY - SA

YTX-14BS0-00-00

1
Out of stock

3

SEAT, BATTERY

5LP-82122-00-00

—
Out of stock

4

BRACKET, BATTERY

8GK-2199G-01-00

—

$211.20

In stock

5

PAD 1

8GC-77151-00-00

1

$2.57

In stock

6

BOLT, FLANGE

95814-08016-00

1

$6.68

In stock

7

NUT,FLANGE(J10)

95702-08500-00

1

$0.80

In stock

8

BAND, BATTERY

8DM-82131-10-00

1

$12.75

In stock

9

STARTER RELAY ASSY

8GL-81940-00-00

1

$107.09

In stock

10

FUSE (10A)

42X-82151-00-00

1

$2.16

In stock

11

BOLT, FLANGE

95022-06008-00

1

$6.26

In stock

12

WIRE, SUB LEAD

8GK-82509-01-00

—

$31.18

In stock

13

CLAMP

90464-13077-00

1

$6.68

In stock

14

TERMINAL COMP.

8FP-8254B-00-00

—

$148.14

In stock
← Electrical 1 Electrical 3 →
