1985 Yamaha Phazer E (Elec Start (PZ480EJ) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1985 Yamaha Phazer E (Elec Start (PZ480EJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

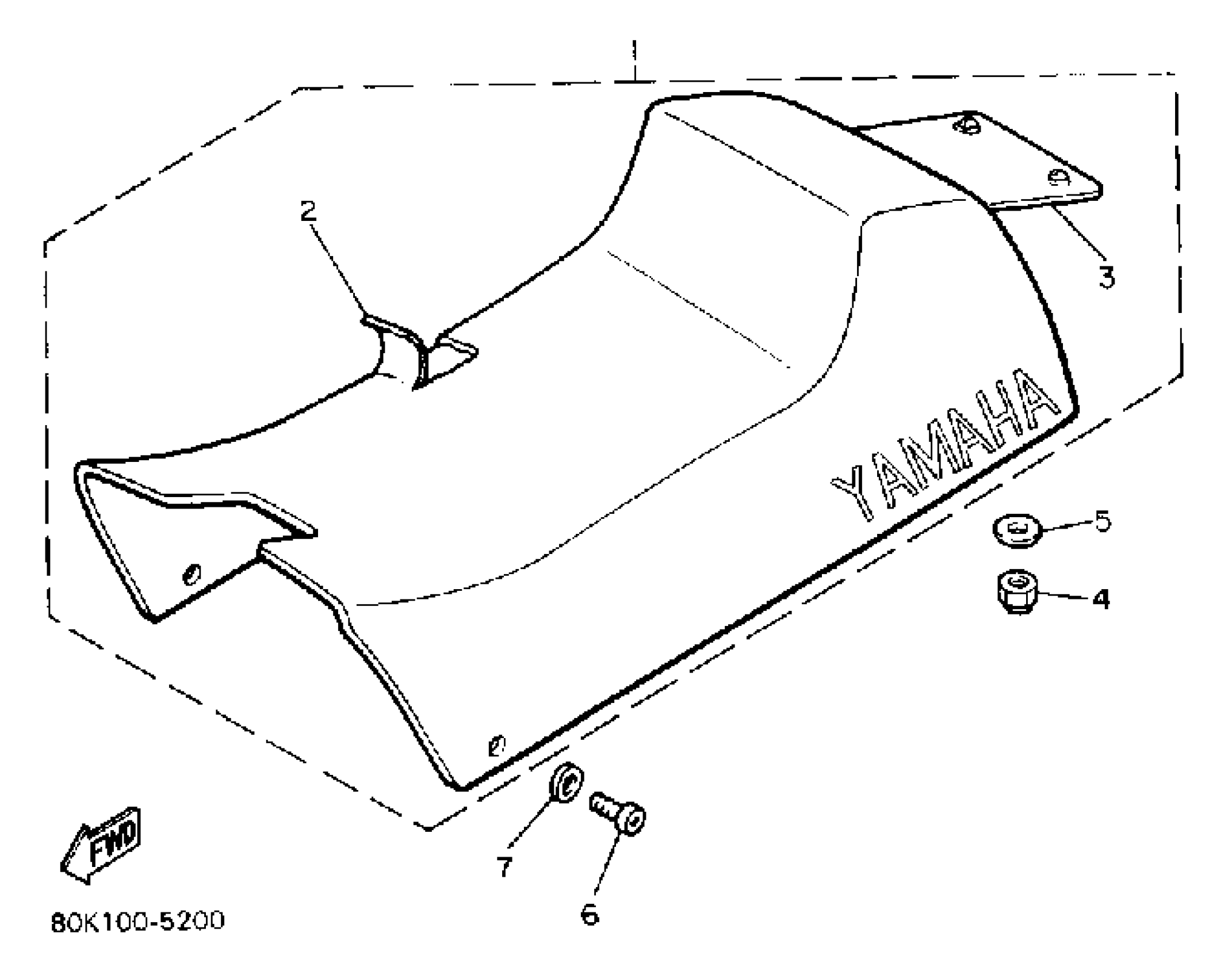

1985 Yamaha Phazer E (Elec Start (PZ480EJ) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

82K-24710-00-00

1
Out of stock

2

COVER,SINGLE SEAT

82K-24711-00-00

1
Out of stock

3

. COVER, LUGGE BOX 2 (8X9-77377-00)

8X9-77377-01-00

1
Out of stock

4

NUT, NYLON

95717-08300-00

1

$2.57

In stock

5

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

6

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

7

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock
