1985 Yamaha Phazer E (Elec Start (PZ480EJ) Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1985 Yamaha Phazer E (Elec Start (PZ480EJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

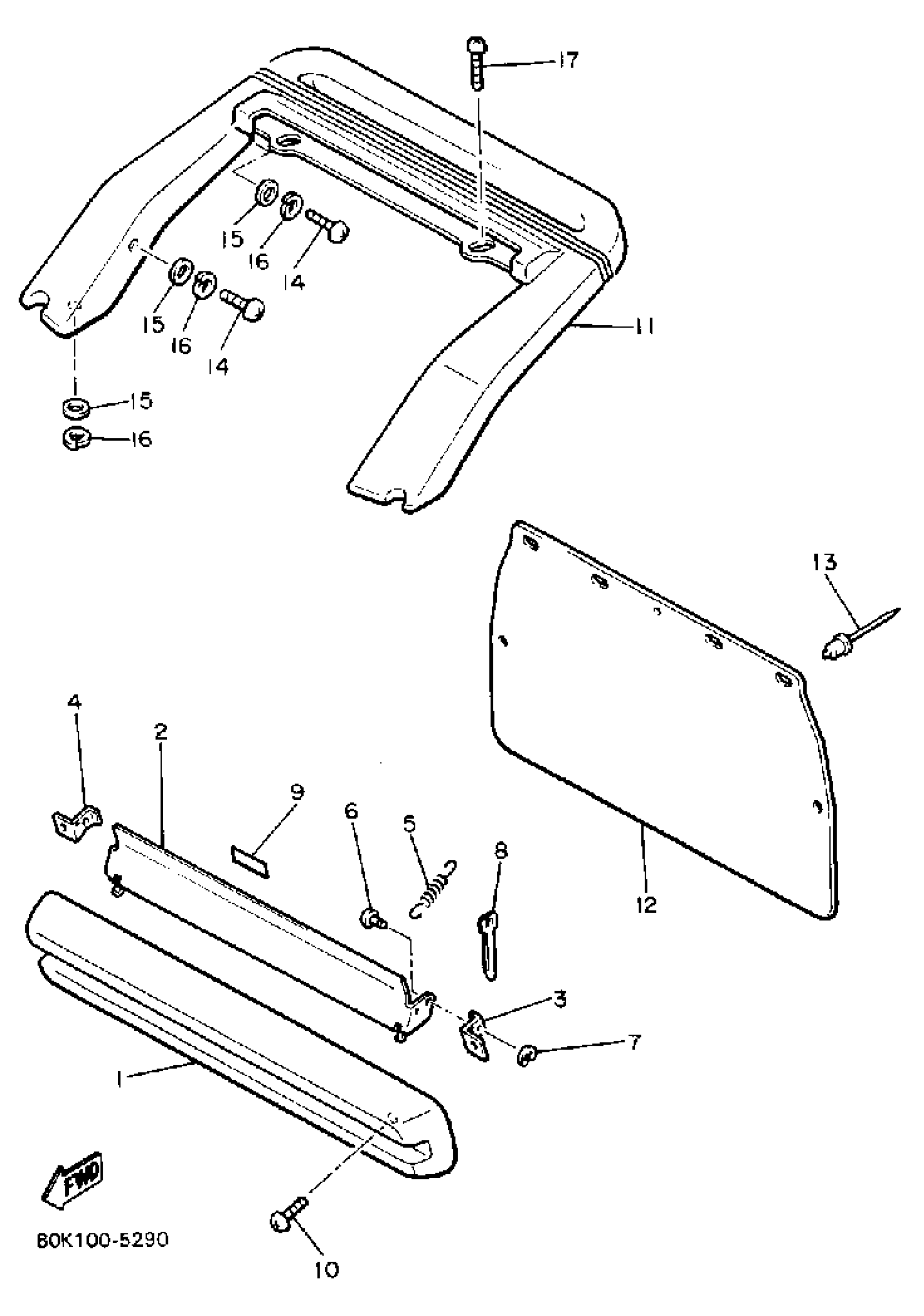

1985 Yamaha Phazer E (Elec Start (PZ480EJ) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8X9-77511-00-00

1
Out of stock

2

PLATE 1

80L-77185-00-00

1
Out of stock

3

STAY 1

80L-77125-00-00

1
Out of stock

4

STAY 2

80L-77126-00-00

1
Out of stock

5

UNAVAILABLE IN PRICE BOOK

805-06123-71-00

1
Out of stock

6

PIN

90249-05187-00

1
Out of stock

7

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

8

BAND

80L-26397-00-00

1

$6.57

In stock

9

LABEL,WARNING 2

8BE-77762-00-00

1
Out of stock

10

SCREW, BINDING

98907-06012-00

1
Out of stock

11

BUMPER, REAR 2

87F-77542-00-00

1
Out of stock

12

FLAP

8X9-77595-00-00

1
Out of stock

13

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

14

SCREW, BIND(J50)

98980-08020-00

1

$3.40

In stock

15

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

17

SCREW, BIND

98903-08012-00

1
Out of stock
