1985 Yamaha Phazer E (Elec Start (PZ480EJ) Frame Diagram

← All diagrams

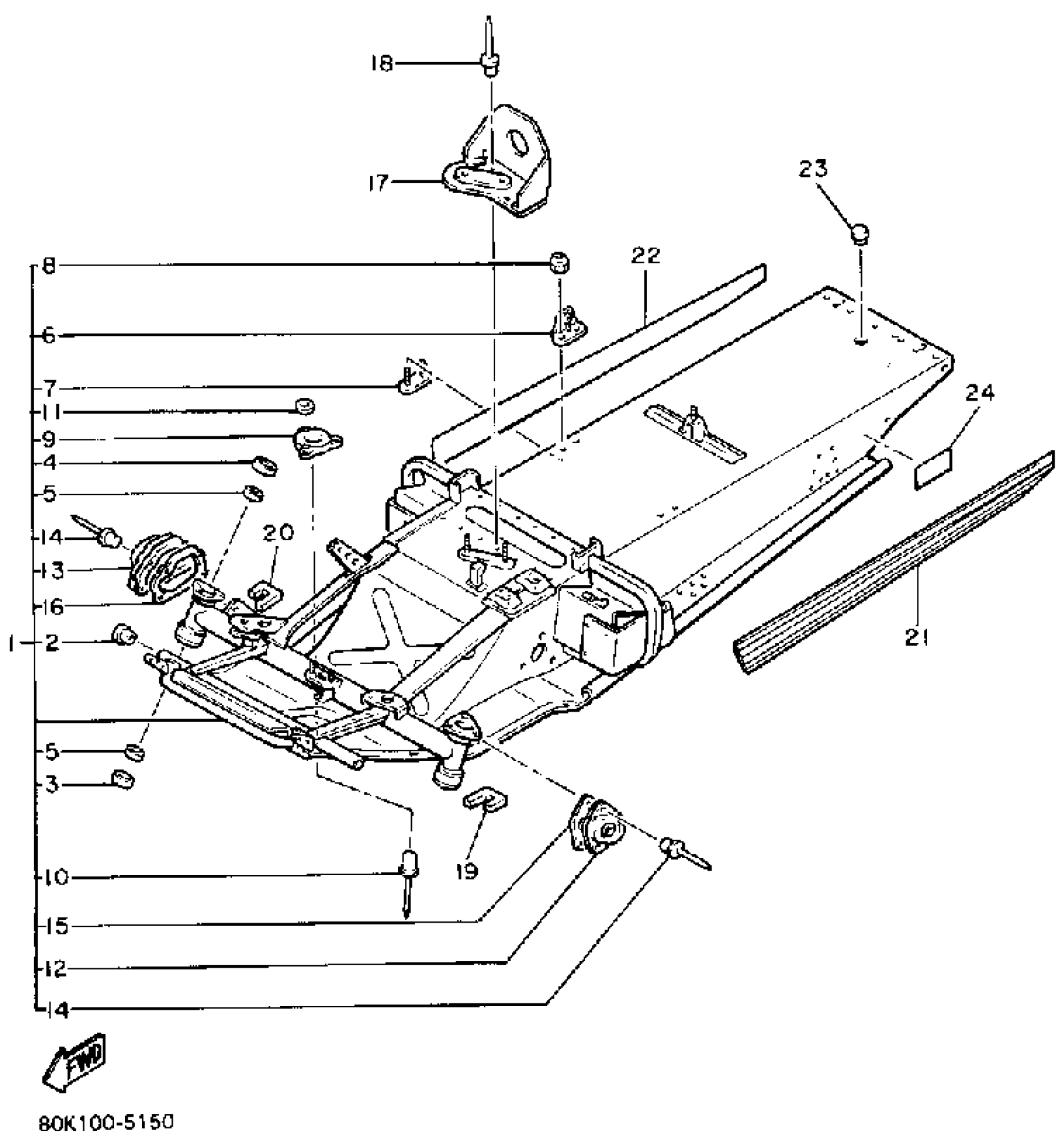

Find the part on the Frame diagram for your 1985 Yamaha Phazer E (Elec Start (PZ480EJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Phazer E (Elec Start (PZ480EJ) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

82K-21910-00-00

1
Out of stock

1

. BELLY PAN (80L-21912-00)

8X9-21912-00-00

1
Out of stock

2

.. BUSH, SOLID

90381-12047-00

1
Out of stock

3

. OIL SEAL

93103-44134-00

1
Out of stock

4

. OIL SEAL, SD-TYPE

93102-44280-00

1
Out of stock

5

. BUSH, BIMETAL FORMED

90384-44173-00

1
Out of stock

6

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

7

. PATCH 6

8V0-21966-00-00

1
Out of stock

8

NUT, NYLON

95707-06300-00

1

$3.20

In stock

9

. SPACER

80L-21998-00-00

1
Out of stock

10

RIVET, BLIND (8M6)

90267-48051-00

1

$1.88

In stock

11

WASHER, PLATE

90201-04027-00

1
Out of stock

12

. COVER 1

80L-2198F-00-00

1
Out of stock

13

. COVER 2

80L-2198G-00-00

1
Out of stock

14

RIVET,BLIND

90267-40080-00

1
Out of stock

15

. WASHER 1

80L-77525-00-00

1
Out of stock

16

. WASHER 2

80L-77526-00-00

1
Out of stock

17

REINEFORCEMENT, FRAME REAR 1

8V0-21923-01-00

1
Out of stock

18

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

19

BRACKET, FUEL TNK 2

80L-2194R-00-00

1
Out of stock

20

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

21

TAPE 3

80L-7717G-00-00

1
Out of stock

22

TAPE 4

80L-7717H-00-00

1
Out of stock

23

EMBLEM 1

80K-77351-00-00

1
Out of stock

24

EMBLEM 2

80K-77352-00-00

1
Out of stock

24

INDICATOR 2

8K2-77742-00-00

1
Out of stock

25

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock
