1983 Yamaha PW80 (PW80K) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1983 Yamaha PW80 (PW80K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

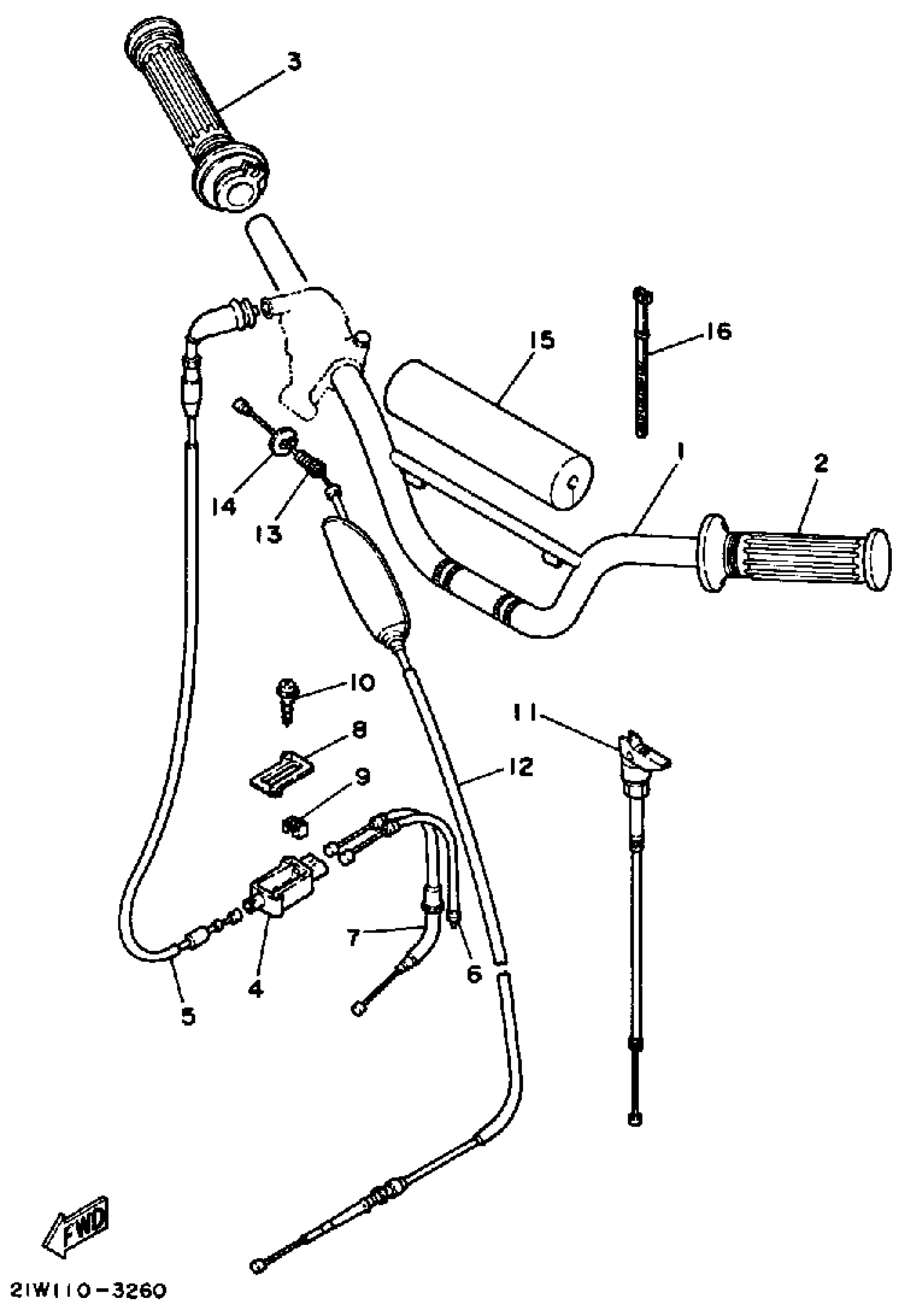

1983 Yamaha PW80 (PW80K) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

21W-26111-02-00

1
Out of stock

2

GRIP

2N3-26241-01-00

1
Out of stock

3

GRIP ASSY

21W-26240-01-00

1
Out of stock

4

CONNECTOR, CABLE

21W-26261-00-00

1

$29.26

In stock

5

CABLE, THROTTLE 1

21W-26311-02-00

1
Out of stock

6

CABLE, THROTTLE 2

21W-26312-01-00

1
Out of stock

7

CABLE, PUMP

21W-26321-02-00

1
Out of stock

8

CAP, CABLE CONNECTOR

21W-26262-00-00

1

$25.94

In stock

9

PIECE, CONNECTING

21W-26263-00-00

1

$19.23

In stock

10

SCREW, TAPPING (3J0)

90167-03004-00

1

$0.74

In stock

11

CABLE, STARTER 1

21W-26331-00-00

1
Out of stock

12

CABLE, BRAKE

21W-26341-01-00

1
Out of stock

13

BOLT

90123-08002-00

1

$8.93

In stock

14

NUT

90179-08030-00

1

$3.78

In stock

15

PROTECTOR, HANDLEBAR

21W-26124-00-00

1
Out of stock

16

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
