1983 Yamaha PW80 (PW80K) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1983 Yamaha PW80 (PW80K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

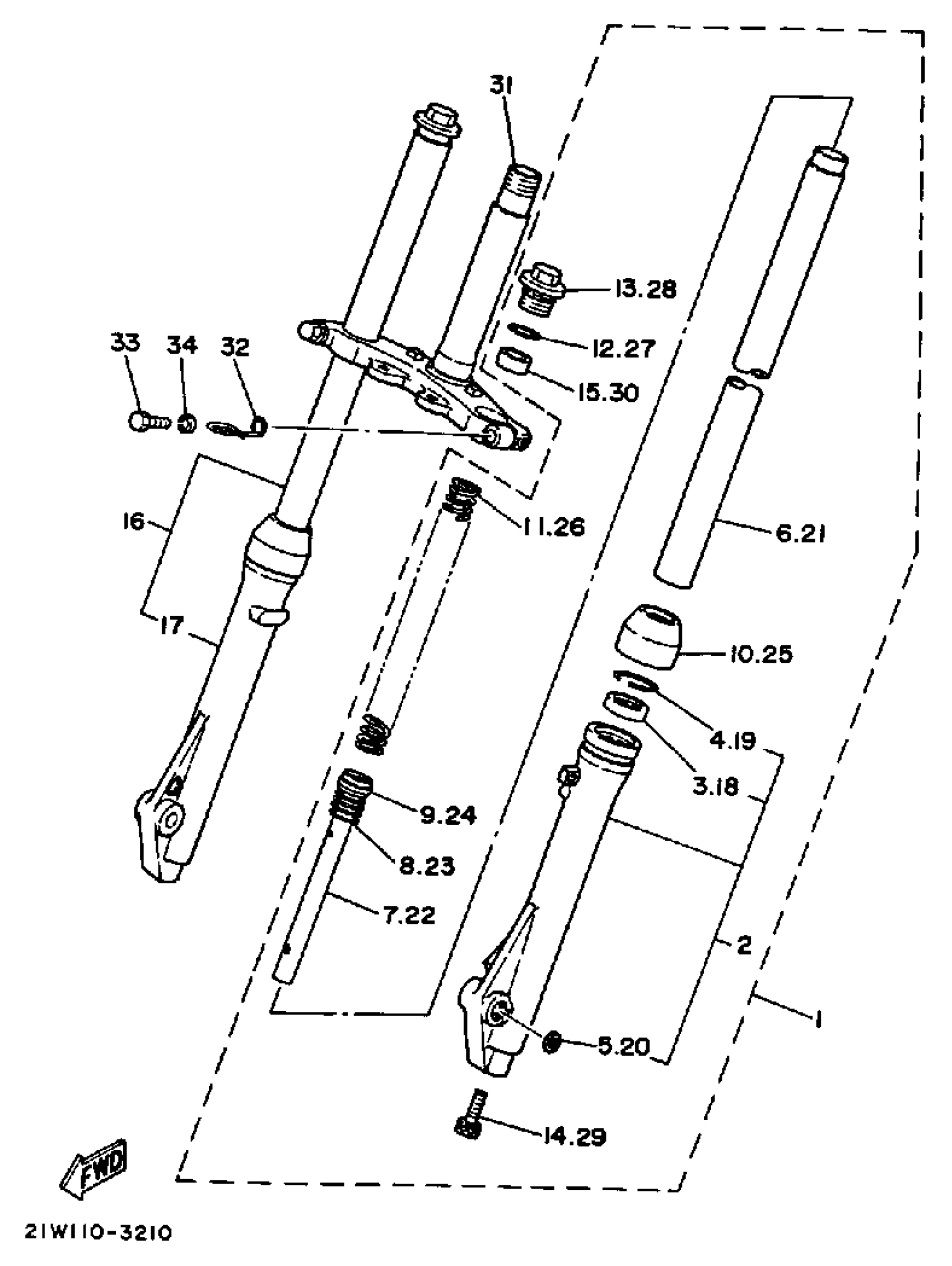

1983 Yamaha PW80 (PW80K) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASY L

99999-03235-00

1
Out of stock

2

. TUBE, OUTER 1

3R0-23126-00-39

1
Out of stock

3

OIL SEAL

1RY-23145-00-00

1
Out of stock

4

CLIP, OIL SEAL

3M7-23156-00-00

1
Out of stock

5

.. WASHER, SPECIAL

3R0-23392-00-00

1
Out of stock

6

INNER TUBE COMP. 1

21W-23110-00-00

—
Out of stock

7

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

—
Out of stock

8

SPRING, REBOUND

2J5-23151-00-00

1
Out of stock

9

RING, PISTON

2J5-23157-00-00

1
Out of stock

10

SEAL, DUST

3M7-23144-00-00

1
Out of stock

11

SPRING, FRONT FORK

21W-23141-00-00

1
Out of stock

12

O-RING(36Y)

93210-17570-00

1

$5.86

In stock

13

BOLT, CAP

3M7-23111-01-00

—
Out of stock

14

BOLT

3M7-23181-00-00

1

$7.75

In stock

15

BOLT, INNER TUBE

3M7-23142-00-00

1
Out of stock

16

FRONT FORK ASSEMBLY R

(21W-23103-00-00)

1
Out of stock

17

TUBE, OUTER 2

(3R0-23136-00-39)

1
Out of stock

18

OIL SEAL

1RY-23145-00-00

1
Out of stock

19

CLIP, OIL SEAL

3M7-23156-00-00

1
Out of stock

20

.. WASHER, SPECIAL

3R0-23392-00-00

1
Out of stock

21

INNER TUBE COMP. 1

21W-23110-00-00

—
Out of stock

22

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

—
Out of stock

23

SPRING, REBOUND

2J5-23151-00-00

1
Out of stock

24

RING, PISTON

2J5-23157-00-00

1
Out of stock

25

SEAL, DUST

3M7-23144-00-00

1
Out of stock

26

SPRING, FRONT FORK

21W-23141-00-00

1
Out of stock

27

O-RING(36Y)

93210-17570-00

1

$5.86

In stock

28

BOLT, CAP

3M7-23111-01-00

—
Out of stock

29

BOLT

3M7-23181-00-00

1

$7.75

In stock

30

BOLT, INNER TUBE

3M7-23142-00-00

1
Out of stock

31

UNDER BRACKET COMP.

5HN-23340-00-00

—
Out of stock

32

HOLDER, CABLE 1

3R0-23318-00-00

—
Out of stock

33

BOLT

451-23346-01-00

—

$10.43

In stock

34

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock
