1983 Yamaha PW80 (PW80K) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1983 Yamaha PW80 (PW80K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

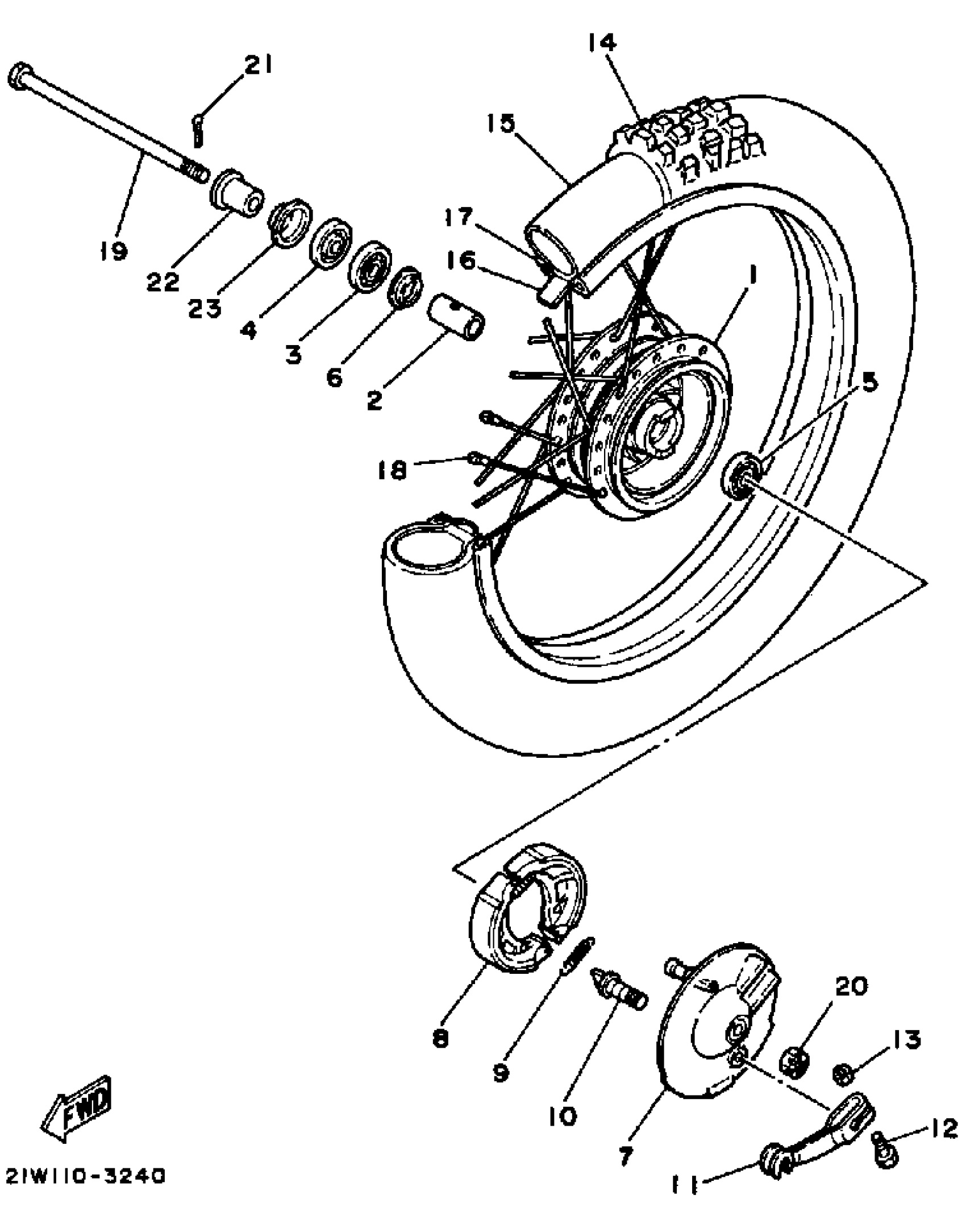

1983 Yamaha PW80 (PW80K) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

451-25111-00-98

1
Out of stock

2

SPACER 451251170000

90560-10103-00

1

$15.43

In stock

3

BEARING (3R0)

93306-20009-00

1

$38.79

In stock

4

OIL SEAL (17X30X8.5-451)

93106-17006-00

1

$9.89

In stock

5

BEARING (3R0)

93306-20009-00

1

$38.79

In stock

6

UNAVAILABLE IN PRICE BOOK (2E9-25115-00)

2E9-25115-00-00

1
Out of stock

7

PLATE, BRAKE SHOE

3R0-25121-00-98

1
Out of stock

8

BRAKESHOE SET-2PCS

451-W2535-00-00

1
Out of stock

9

1

$7.51

In stock

10

CAMSHAFT

1YT-25351-00-00

1
Out of stock

11

LEVER, CAM SHAFT

451-25155-00-00

—

$32.20

In stock

12

BOLT, HEXAGON (462)

90101-06291-00

1

$6.68

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

TIRE

94125-141A6-00

1

$44.54

In stock

15

TUBE (3L8)

94220-14143-00

1

$31.31

In stock

16

BAND, RIM

(94325-14129-00)

1
Out of stock

17

RIM

94414-14227-00

—

$117.87

In stock

18

SPOKE SET, FRONT

3R0-25104-00-00

—

$36.51

In stock

19

AXLE, WHEEL

99999-02188-00

1
Out of stock

20

NUT 3532518200

90171-10004-00

—

$5.32

In stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock

22

COLLAR (3R0)

90387-10744-00

—

$15.09

In stock

23

COVER, HUB DUST

451-25118-00-00

—

$15.83

In stock
